Key Product Details

Species Reactivity

Human

Applications

Intracellular Staining by Flow Cytometry

Label

Allophycocyanin (Excitation = 620-650 nm, Emission = 660-670 nm)

Antibody Source

Monoclonal Mouse IgG2B Clone # 723505
View all STING/TMEM173 Primary Antibodies »

Product Specifications

Immunogen

E. coli-derived recombinant human STING/TMEM173
Ala215-Ser379
Accession # Q86WV6

Specificity

Detects human STING/TMEM173 in direct ELISAs and Western blots.

Clonality

Monoclonal

Host

Mouse

Isotype

IgG2B

Scientific Data Images for Human STING/TMEM173 APC‑conjugated Antibody

Detection of STING/TMEM173 antibody in Human PBMC Monocytes antibody by Flow Cytometry.

Detection of STING/TMEM173 in Human PBMC Monocytes by Flow Cytometry.

Human peripheral blood mononuclear cells (PBMC) monocytes were stained with Mouse Anti-Human STING/TMEM173 APC-conjugated Monoclonal Antibody (Catalog # IC7169A, filled histogram) or isotype control antibody (Catalog # IC0041A, open histogram). To facilitate intracellular staining, cells were fixed with Flow Cytometry Fixation Buffer (Catalog # FC004) and permeabilized with Flow Cytometry Permeabilization/Wash Buffer I (Catalog # FC005). View our protocol for Staining Intracellular Molecules.

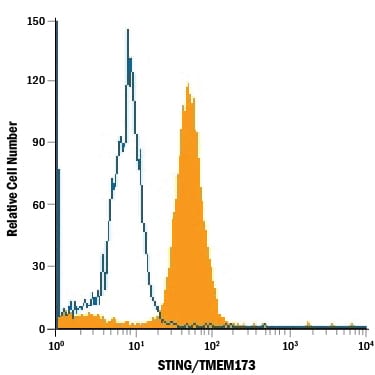

Detection of STING/TMEM173 antibody in THP‑1 Human Cell Line antibody by Flow Cytometry.

Detection of STING/TMEM173 in THP‑1 Human Cell Line by Flow Cytometry.

THP-1 human acute monocytic leukemia cell line was stained with Mouse Anti-Human STING/TMEM173 APC-conjugated Monoclonal Antibody (Catalog # IC7169A, filled histogram) or isotype control antibody (Catalog # IC0041A, open histogram). To facilitate intracellular staining, cells were fixed with Flow Cytometry Fixation Buffer (Catalog # FC004) and permeabilized with Flow Cytometry Permeabilization/Wash Buffer I (Catalog # FC005). View our protocol for Staining Intracellular Molecules.

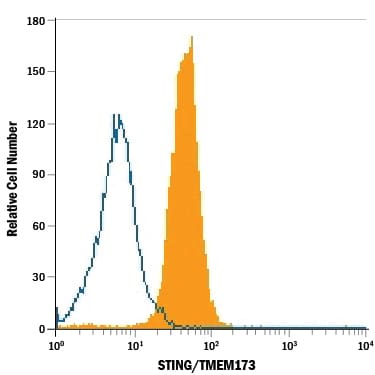

Detection of STING/TMEM173 antibody in U937 Human Cell Line antibody by Flow Cytometry.

Detection of STING/TMEM173 in U937 Human Cell Line by Flow Cytometry.

U937 human histiocytic lymphoma cell line was stained with Mouse Anti-Human STING/TMEM173 APC-conjugated Monoclonal Antibody (Catalog # IC7169A, filled histogram) or isotype control antibody (Catalog # IC0041A, open histogram). To facilitate intracellular staining, cells were fixed with Flow Cytometry Fixation Buffer (Catalog # FC004) and permeabilized with Flow Cytometry Permeabilization/Wash Buffer I (Catalog # FC005). View our protocol for Staining Intracellular Molecules.

Applications for Human STING/TMEM173 APC‑conjugated Antibody

Application
Recommended Usage

Intracellular Staining by Flow Cytometry

10 µL/106 cells
Sample: Human peripheral blood mononuclear cells (PBMC) monocytes, THP‑1 human acute monocytic leukemia cell line, and U937 human histiocytic lymphoma cell line fixed with Flow Cytometry Fixation Buffer (Catalog # FC004) and permeabilized with Flow Cytometry Permeabilization/Wash Buffer I (Catalog # FC005)

Spectra Viewer

Plan Your Experiments

Use our spectra viewer to interactively plan your experiments, assessing multiplexing options. View the excitation and emission spectra for our fluorescent dye range and other commonly used dyes.

Spectra Viewer
Spectra Viewer

Flow Cytometry Panel Builder

Bio-Techne Knows Flow Cytometry

Save time and reduce costly mistakes by quickly finding compatible reagents using the Panel Builder Tool.

Advanced Features

  • Spectra Viewer - Custom analysis of spectra from multiple fluorochromes
  • Spillover Popups - Visualize the spectra of individual fluorochromes
  • Antigen Density Selector - Match fluorochrome brightness with antigen density
Build Your Panel Now
Flow Cytometry

Formulation, Preparation, and Storage

Purification

Protein A or G purified from hybridoma culture supernatant

Formulation

Supplied in a saline solution containing BSA and Sodium Azide.

Shipping

The product is shipped with polar packs. Upon receipt, store it immediately at the temperature recommended below.

Stability & Storage

Protect from light. Do not freeze.
  • 12 months from date of receipt, 2 to 8 °C as supplied.

Background: STING/TMEM173

STING (Stimulator of Interferon Genes), also called ERIS, MPYS, or MITA and designated TMEM173, is a 40-42 kDa 4-transmembrane protein that mediates both antiviral and MHC-II antigen recognition responses. STING is found predominantly in the endoplasmic reticulum. It acts as an adaptor protein for intracellular viral detection molecules, participating in the induction of type I interferon. It also may play a role in the initiation of apoptosis following MHC-II engagement. Cells known to express STING include B cells, dendritic cells, macrophages, and monocytes. Human STING is 379 amino acids (aa) in length. It contains an N-terminal cytoplasmic region (aa 1-20), four transmembrane segments (aa 21-173), and a C-terminal cytoplasmic domain (aa 174-379). Ubiquitination occurs at Lys150, and phosphorylation occurs at Ser358. STING forms 80 kDa homodimers. There are two potential splice forms, one that shows a 25 aa substitution for aa 1-173, and another that possesses an alternative start site at Met215, coupled to a premature truncation following Arg334. Over aa 215-379, human and mouse STING share 76% aa sequence identity.

Long Name

Stimulator of Interferon Genes Protein/Transmembrane protein 173

Alternate Names

ERIS, MITA, MPYS, NET23, TMEM173

Entrez Gene IDs

340061 (Human); 72512 (Mouse)

Gene Symbol

STING1

UniProt

Q86WV6 (Human)
