Human TLR2 PerCP-conjugated Antibody

  • Species Reactivity
  • Specificity
    Stains human TLR2 transfectants but not irrelevant transfectants.
  • Source
    Monoclonal Mouse IgG2B Clone # 383936
  • Purification
    Protein A or G purified from hybridoma culture supernatant
  • Immunogen
    NS0 mouse myeloma cell line transfected with human TLR2
    Accession # O60603
  • Formulation
    Supplied in a saline solution containing BSA and Sodium Azide.
  • Label
    PerCP (Peridinin-chlorophyll Protein Complex)
  • Flow Cytometry
    10 µL/106 cells
    See below
Please Note: Optimal dilutions should be determined by each laboratory for each application. General Protocols are available in the Technical Information section on our website.
Data Examples

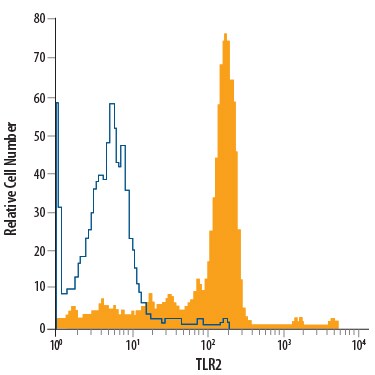

Detection of TLR2 in Human Monocytes by Flow Cytometry. Human peripheral blood monocytes were stained with Mouse Anti-Human TLR2 PerCP‑conjugated Monoclonal Antibody (Catalog # FAB2616C, filled histogram) or isotype control antibody (Catalog # IC0041C, open histogram). View our protocol for Staining Membrane-associated Proteins.
Preparation and Storage
  • Shipping
    The product is shipped with polar packs. Upon receipt, store it immediately at the temperature recommended below.
  • Stability & Storage
    Protect from light. Do not freeze.
    • 12 months from date of receipt, 2 to 8 °C as supplied.
Background: TLR2

Human toll-like receptor (TLR) family includes ten members that activate the innate immune response via an ability to recognize molecular structures found in a variety of microbial pathogens (1-3). All TLR family members are type I transmembrane proteins with a large number of extracellular leucine-rich repeats (LRRs) and a cytoplasmic Toll/IL-1 receptor (TIR) domain. Human TLR2 is synthesized as a 784 amino acid (aa) precursor (2) that contains a signal sequence (aa 1-18), an extracellular domain (aa 19-588) with approximately 20 LRRs, a transmembrane segment (aa 589-609), and a cytoplasmic TIR domain (aa 610-784). The receptor is expressed on a number of cell types including monocytes, dendritic cells, neutrophils, B cells endothelial cells, and hepatocytes (1, 2, 4). TLR2 functions as part of a heterodimeric complex with either TLR1 or TLR6, and possibly other co-receptors (1). These complexes recognize lipoproteins and glycolipids from gram-positive and gram-negative bacteria as well as mycoplasma and yeast. TLR2/TLR1 heterodimers bind triacylated lipopeptides, while the TLR2/TLR6 heterodimer preferentially recognizes diacylated lipopeptides (5). Upon ligand recognition, TLR2 delivers an activating signal via the associated adapter molecules, MyD88 and TIRAP (1, 6). TLR2 signaling results in dendritic cell maturation characterized by increased surface expression of class II MHC and the T cell costimulators, CD80 and CD86 (1, 2). Activation via TLR2 also results in production of a number of pro-inflammatory cytokines including TNF-alpha, IL-2, IL-6, IL-12, and MIP-2 (1-3).

  • References:
    1. Wetzler, L. (2003) Vaccine 21:S2/55.
    2. Kirschning, C. and R. Schumann (2002) Curr. Top. microbiol. Immunol. 270:121.
    3. Netea, M. et al. (2004) J. Leukoc. Biol. 75:749.
    4. Flo, T. et al. (2001) J. Leukoc. Biol. 69:474.
    5. Akira, S. (2003) Curr. Opin. Immunol. 15:5.
    6. Yamamoto, M. et al. (2002) Nature 420:324.
  • Long Name:
    Toll-like Receptor 2
  • Entrez Gene IDs:
    7097 (Human); 24088 (Mouse); 310553 (Rat)
  • Alternate Names:
    CD282 antigen; CD282; TIL4CD282; toll/interleukin 1 receptor-like 4; Toll/interleukin-1 receptor-like protein 4; toll-like receptor 2
