The disulfide-linked homodimeric proteins vascular endothelial growth factor (VEGF) and placenta growth factor (PlGF) are both members of the VEGF family of growth factors. E. coli-expressed monomers of PlGF and VEGF can be refolded in vitro to form PlGF/VEGF heterodimers. The purified recombinant PlGF/VEGF heterodimers are much less potent than VEGF homodimers as mitogens for endothelial cells.
Human VEGF/PlGF Heterodimer DuoSet ELISA
R&D Systems | Catalog # DY297-05
Discontinued Product
DY297-05 has been discontinued.
View all VEGF/PlGF Heterodimer products.
Key Product Details
Assay Type
Solid Phase Sandwich ELISA
Assay Range
93.8-6000 pg/mL
Sample Type
Cell culture supernates, serum, and plasma
Note: Diluents for complex matrices, such as serum and plasma, should be evaluated prior to use in this DuoSet
Note: Diluents for complex matrices, such as serum and plasma, should be evaluated prior to use in this DuoSet
Reactivity
Human
Human VEGF/PlGF Heterodimer DuoSet ELISA Features
- Optimized capture and detection antibody pairings with recommended concentrations save lengthy development time
- Development protocols are provided to guide further assay optimization
- Assay can be customized to your specific needs
- Economical alternative to complete kits
Loading...
Product Summary for Human VEGF/PlGF Heterodimer DuoSet ELISA
This DuoSet ELISA Development kit contains the basic components required for the development of sandwich ELISAs to measure natural and recombinant human VEGF / PlGF Heterodimer. The suggested diluent is suitable for the analysis of most cell culture supernate samples. Diluents for complex matrices, such as serum and plasma, should be evaluated prior to use in this DuoSet ELISA.
Product Specifications
Assay Format
96-well strip plate (sold separately)
Sample Volume Required
100 µL
Detection Method
Colorimetric ELISA - 450nm (TMB)
Conjugate
Biotin
Specificity
Label
HRP
Scientific Data Images for Human VEGF/PlGF Heterodimer DuoSet ELISA

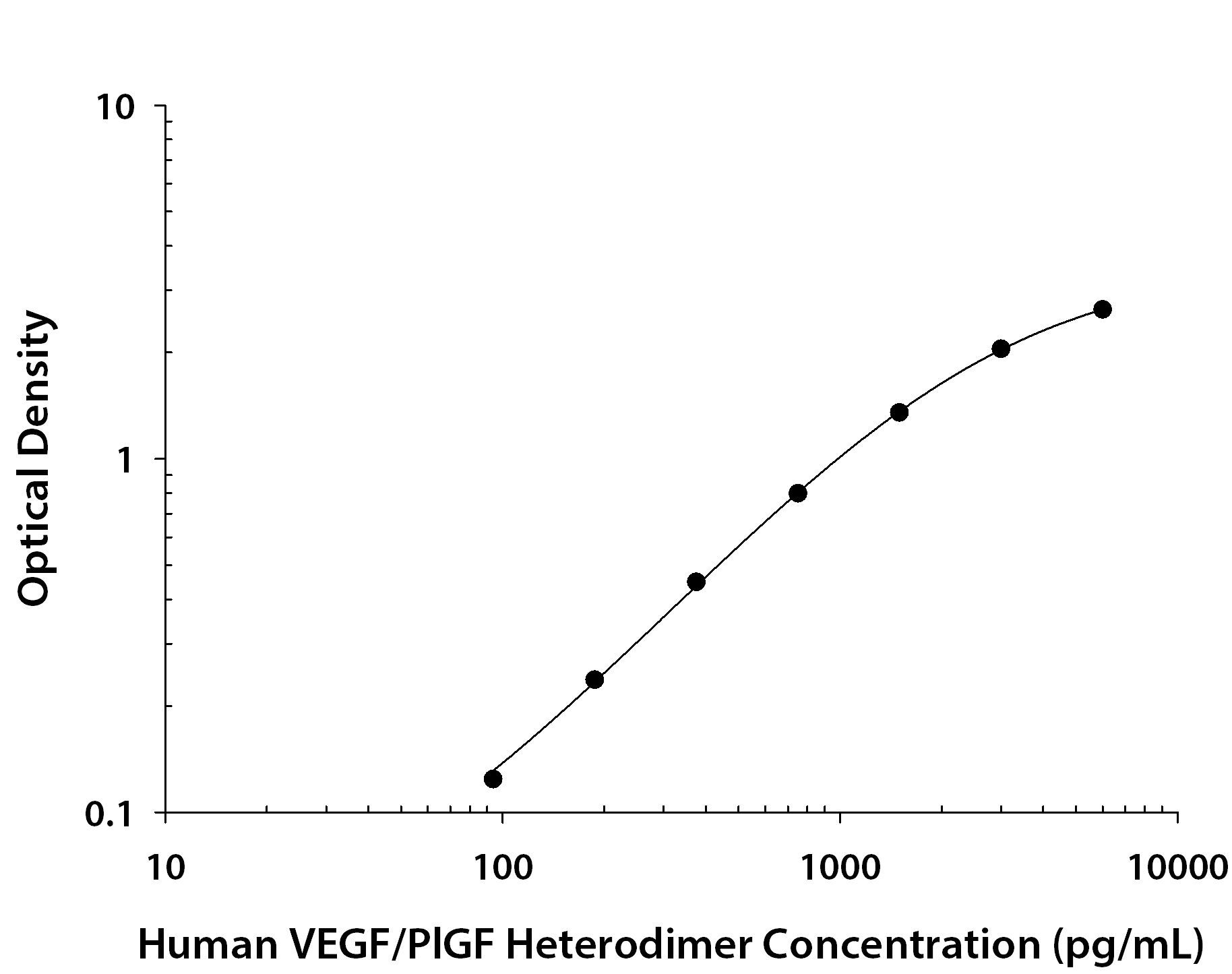

Human VEGF / PlGF Heterodimer ELISA Standard Curve
Kit Contents for Human VEGF/PlGF Heterodimer DuoSet ELISA
- Capture Antibody
- Detection Antibody
- Recombinant Standard
- Streptavidin conjugated to horseradish-peroxidase (Streptavidin-HRP)
Other Reagents Required
PBS: (Catalog # DY006), or 137 mM NaCl, 2.7 mM KCl, 8.1 mM Na2HPO4, 1.5 mM KH2PO4, pH 7.2 - 7.4, 0.2 µm filtered
Wash Buffer: (Catalog # WA126), or equivalent
Reagent Diluent*
Blocking Buffer*
Substrate Solution: 1:1 mixture of Color Reagent A (H2O2) and Color Reagent B (Tetramethylbenzidine) (Catalog # DY999)
Stop Solution: 2 N H2SO4 (Catalog # DY994)
Microplates: R&D Systems (Catalog # DY990), or equivalent
Plate Sealers: ELISA Plate Sealers (Catalog # DY992), or equivalent
*For the Reagent Diluent and Blocking Buffer recommended for a specific DuoSet ELISA Development Kit, please see the product .
Preparation and Storage
Shipping
The product is shipped at ambient temperature. Upon receipt, store it immediately at the temperature recommended below.
Stability & Storage
Store the unopened product at 2 - 8 °C. Do not use past expiration date.
Background: VEGF/PlGF Heterodimer
Long Name
Vascular Endothelial Growth Factor/Placenta Growth Factor Heterodimer
Additional VEGF/PlGF Heterodimer Products
Product Documents for Human VEGF/PlGF Heterodimer DuoSet ELISA
Certificate of Analysis
To download a Certificate of Analysis, please enter a lot or batch number in the search box below.
Note: Certificate of Analysis not available for kit components.
Product Specific Notices for Human VEGF/PlGF Heterodimer DuoSet ELISA
For research use only
