Human VISTA/B7-H5/PD-1H Alexa Fluor® 488-conjugated Antibody

  • Species Reactivity
  • Specificity
    Detects human VISTA/B7-H5/PD-1H in direct ELISAs. In direct ELISAs, no cross-reactivity with recombinant mouse VISTA/B7-H5/PD-1H is observed.
  • Source
    Monoclonal Mouse IgG2B Clone # 730804
  • Purification
    Protein A or G purified from hybridoma culture supernatant
  • Immunogen
    Mouse myeloma cell line NS0-derived recombinant human VISTA/B7-H5/PD-1H
    Accession # Q9H7M9
  • Formulation
    Supplied in a saline solution containing BSA and Sodium Azide.
  • Label
    Alexa Fluor 488
  • Flow Cytometry
    5 µL/106 cells
    See below
Please Note: Optimal dilutions should be determined by each laboratory for each application. General Protocols are available in the Technical Information section on our website.
Data Examples

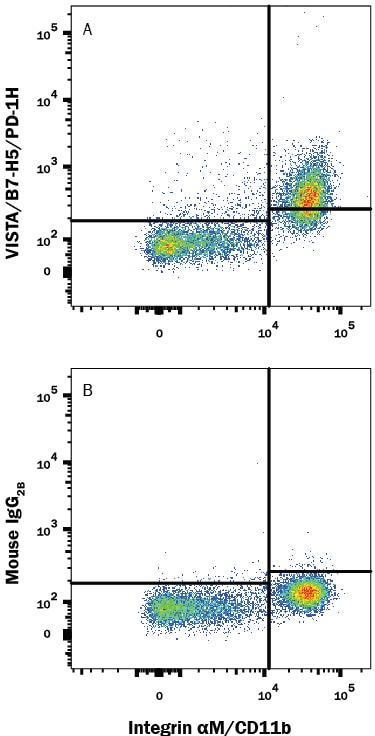

Detection of VISTA/B7-H5/PD-1H in Human PBMCs by Flow Cytometry. Human peripheral blood mononuclear cells (PBMCs) were stained with Mouse Anti-Human Integrin  alpha M/CD11b APC‑conjugated Monoclonal Antibody (Catalog # FAB16991A) and either (A) Mouse Anti-Human VISTA/B7-H5/PD-1H Alexa Fluor® 488‑conjugated Monoclonal Antibody (Catalog # FAB71261G) or (B) Mouse IgG2B Alexa Fluor 488 Isotype Control (Catalog # IC0041G). View our protocol for Staining Membrane-associated Proteins.
Preparation and Storage
  • Shipping
    The product is shipped with polar packs. Upon receipt, store it immediately at the temperature recommended below.
  • Stability & Storage
    Protect from light. Do not freeze.
    • 12 months from date of receipt, 2 to 8 °C as supplied.
Background: VISTA/B7-H5/PD-1H
Platelet Receptor Gi24, also known as Dies1 (Differentiation of ESC-1), VISTA (V-domain Ig suppressor of T cell activation), SISP1 and C10orf54, is a 55-65 kDa member of the Ig superfamily. It is a transmembrane molecule expressed in bone, on embryonic stem cells (ESCs), and on tumor cell surfaces. On ESCs, Gi24 appears to positively interact with BMP-4, potentiating BMP signaling and the transition from an undifferentiated to a differentiated state. On tumor cells, Gi24 both promotes MT1-MMP expression and activity and serves as a substrate for MT1-MMP. This increases the potential for cell motility. Mature human Gi24 contains a 162 aa extracellular region with one V-type Ig-like domain and a 96 aa cytoplasmic domain. Human Gi24 undergoes proteolytic cleavage by MT1-MMP, generating a soluble 30 kDa extracellular fragment plus a 25-30 kDa membrane-bound fragment. Over aa 33-194, human Gi24 shares 70% and 67% aa identity with mouse and rat Gi24, respectively.
  • Entrez Gene IDs:
    64115 (Human); 74048 (Mouse); 690899 (Rat)
  • Alternate Names:
    4632428N05Rik; B7H5; B7-H5; C10orf54; chromosome 10 open reading frame 54; Dies1; Gi24; PD1H; PD-1H; platelet receptor Gi24; PP2135; SISP1; stress induced secreted protein 1
