Human VISTA/B7-H5/PD-1H Antibody

  (2 citations)
(1 Review)

Datasheet / CoA / SDS
Product Details
Citations (2)
FAQs
Supplemental Products
Reviews
  • Species Reactivity
    Human
  • Specificity
    Detects human VISTA/B7-H5/PD-1H in direct ELISAs. In direct ELISAs, no cross-reactivity with recombinant mouse VISTA/B7-H5/PD-1H is observed.
  • Source
    Monoclonal Mouse IgG2B Clone # 730804
  • Purification
    Protein A or G purified from hybridoma culture supernatant
  • Immunogen
    Mouse myeloma cell line NS0-derived recombinant human VISTA/B7-H5/PD-1H
    Phe33-Ala194
    Accession # Q9H7M9
  • Formulation
    Lyophilized from a 0.2 μm filtered solution in PBS with Trehalose. *Small pack size (SP) is supplied as a 0.2 µm filtered solution in PBS.
  • Label
    Unconjugated
Product Datasheets

Certificate of Analysis Lookup

To download a Certificate of Analysis, please enter a lot number in the search box below.

Note: Certificate of Analysis not available for kit components.

Certificate of Analysis Lookup

Certificate of Analysis Request Form

To download a Certificate of Analysis, please enter the catalog and lot numbers in the search box below.

Note: Certificate of Analysis not available for kit components.

Applications
  •
    Recommended
    Concentration
    Sample
  • Flow Cytometry
    0.25 µg/106 cells
    See below
  • CyTOF-ready
    Ready to be labeled using established conjugation methods. No BSA or other carrier proteins that could interfere with conjugation.
  • Immunocytochemistry
    8-25 µg/mL
    See below
Please Note: Optimal dilutions should be determined by each laboratory for each application. General Protocols are available in the Technical Information section on our website.
Data Examples

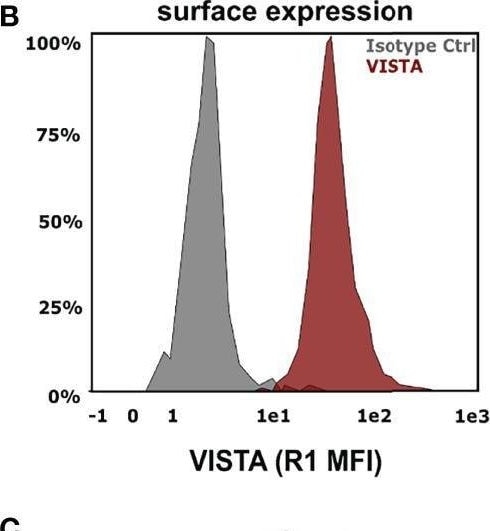

Detection of VISTA/B7-H5/PD-1H in Human PBMCs by Flow Cytometry. Human peripheral blood mononuclear cells (PBMCs) were stained with Mouse Anti-Human Integrin  alpha M/CD11b PE-conjugated Monoclonal Antibody (Catalog # FAB16991P) and either (A) Mouse IgG2B Isotype Control (Catalog # MAB0041) or (B) Mouse Anti-Human VISTA/B7-H5/PD-1H Monoclonal Antibody (Catalog # MAB71261) followed by Allophycocyanin-conjugated Anti-Mouse IgG Secondary Antibody (Catalog # F0101B).
Immunocytochemistry
VISTA/B7-H5/PD-1H in BG01V Human Embryonic Stem Cells.

VISTA/B7-H5/PD-1H was detected in immersion fixed BG01V human embryonic stem cells using Mouse Anti-Human
VISTA/B7-H5/PD-1H Monoclonal Antibody (Catalog # MAB71261) at 10 µg/mL for 3 hours at room temperature. Cells were stained using the NorthernLights™ 557-conjugated Anti-Mouse IgG Secondary Antibody (red, upper panel; Catalog # NL007) and counterstained with DAPI (blue, lower panel). Specific staining was localized to cell surfaces and cytoplasm. View our protocol for Fluorescent ICC Staining of Cells on Coverslips.

Preparation and Storage
  • Reconstitution
    Sterile PBS to a final concentration of 0.5 mg/mL.
    Reconstitution Buffer Available
  • Shipping
    The product is shipped at ambient temperature. Upon receipt, store it immediately at the temperature recommended below. *Small pack size (SP) is shipped with polar packs. Upon receipt, store it immediately at -20 to -70 °C
  • Stability & Storage
    Use a manual defrost freezer and avoid repeated freeze-thaw cycles.
    • 12 months from date of receipt, -20 to -70 °C as supplied.
    • 1 month, 2 to 8 °C under sterile conditions after reconstitution.
    • 6 months, -20 to -70 °C under sterile conditions after reconstitution.
Background: VISTA/B7-H5/PD-1H
Platelet Receptor Gi24, also known as VISTA (V-domain Ig suppressor of T cell activation), B7-H5, B7H5, Dies1 (Differentiation of ESC-1), SISP1 and C10orf54, is a 55-65 kDa member of the Ig superfamily. It is a transmembrane molecule expressed in bone, on embryonic stem cells (ESCs), and on tumor cell surfaces. On ESCs, Gi24 appears to positively interact with BMP-4, potentiating BMP signaling and the transition from an undifferentiated to a differentiated state. On tumor cells, Gi24 both promotes MT1-MMP expression and activity and serves as a substrate for MT1-MMP. This increases the potential for cell motility. Mature human Gi24 contains a 162 aa extracellular region with one V-type Ig-like domain and a 96 aa cytoplasmic domain. Human Gi24 undergoes proteolytic cleavage by MT1-MMP, generating a soluble 30 kDa extracellular fragment plus a 25-30 kDa membrane-bound fragment. Over aa 33-194, human Gi24 shares 70% and 67% aa identity with mouse and rat Gi24, respectively.
  • Entrez Gene IDs:
    64115 (Human); 74048 (Mouse); 690899 (Rat); 102116468 (Cynomolgus Monkey)
  • Alternate Names:
    4632428N05Rik; B7H5; B7-H5; C10orf54; chromosome 10 open reading frame 54; Dies1; Gi24; PD1H; PD-1H; platelet receptor Gi24; PP2135; SISP1; stress induced secreted protein 1; VISTA; VSIR
Related Research Areas
Citations:

R&D Systems personnel manually curate a database that contains references using R&D Systems products. The data collected includes not only links to publications in PubMed, but also provides information about sample types, species, and experimental conditions.

2 Citations: Showing 1 - 2
Filter your results:

Species
Applications
Sample Type
  1. Interferon-? converts human microvascular pericytes into negative regulators of alloimmunity through induction of indoleamine 2,3-dioxygenase 1
    Authors: R Liu, J Merola, TD Manes, L Qin, GT Tietjen, F López-Girá, V Broecker, C Fang, C Xie, PM Chen, NC Kirkiles-S, D Jane-Wit, JS Pober
    JCI Insight, 2018;3(5):.
    Species: Human
    Sample Type: Whole Cells
    Application: Flow
  2. Characterization of programmed death-1 homologue-1 (PD-1H) expression and function in normal and HIV infected individuals.
    Authors: Bharaj, Preeti, Chahar, Harendra, Alozie, Ogechika, Rodarte, Lizette, Bansal, Anju, Goepfert, Paul A, Dwivedi, Alok, Manjunath, N, Shankar, Premlata
    PLoS ONE, 2014;9(10):e109103.
    Species: Human
    Sample Type: Whole Cells
    Application: Flow
