Detection of CXCR7 in D3 Mouse Cell Line by Flow Cytometry. D3 mouse embryonic stem cell line was stained with Rat Anti-Mouse CXCR7/RDC‑1 Monoclonal Antibody (Catalog # MAB7167, filled histogram) or isotype control antibody rat IgM (open histogram), followed by Allophycocyanin-conjugated Anti-Rat IgM Secondary Antibody.

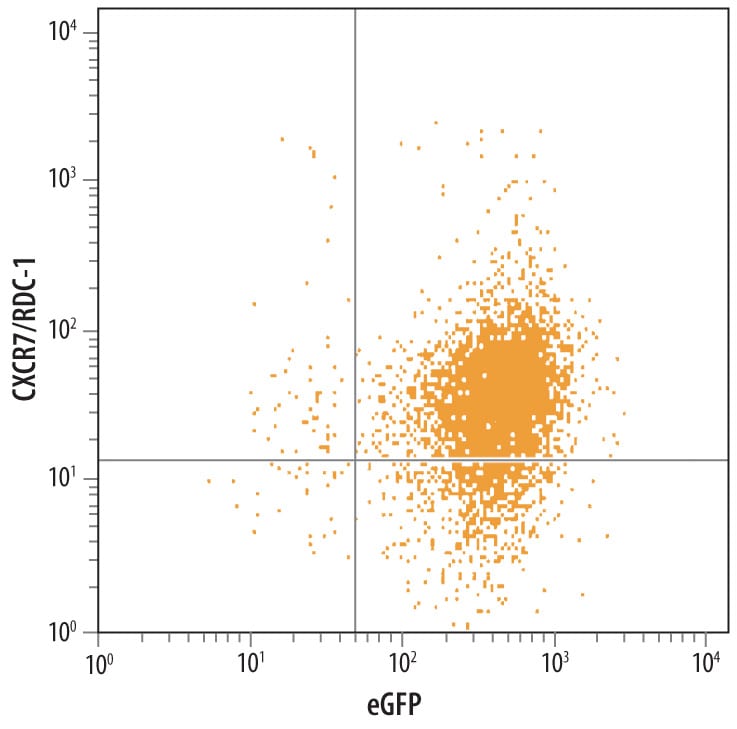

Detection of CXCR7 in HEK293 Human Cell Line Transfected with eGFP and Mouse CXCR7/RDC-1 by Flow Cytometry. HEK293 human embryonic kidney cell line transfected with eGFP and Mouse CXCR7/RDC-1 were stained with Rat Anti-Mouse CXCR7/RDC‑1 Monoclonal Antibody (Catalog # MAB7167) followed by Allophycocyanin-conjugated-Anti-Rat IgM secondary antibody. Quadrant markers were set based on control antibody staining.
Preparation and Storage
Sterile PBS to a final concentration of 0.5 mg/mL.
The product is shipped at ambient temperature. Upon receipt, store it immediately at the temperature recommended below. *Small pack size (SP) is shipped with polar packs. Upon receipt, store it immediately at -20 to -70 °C
Stability & Storage
Use a manual defrost freezer and avoid repeated freeze-thaw cycles.
12 months from date of receipt, -20 to -70 °C as supplied.
1 month, 2 to 8 °C under sterile conditions after reconstitution.
6 months, -20 to -70 °C under sterile conditions after reconstitution.
CXCR7 (CXC chemokine receptor 7; also GPRN1, RDC-1 and chemokine orphan receptor 1) is a 60 kDa member of the G-protein coupled receptor 1 family. It is expressed on multiple cell types, including neurons, T cells, NK cells, neutrophils, B cells plus angiogenic endothelial cells. CXCR7 forms both homodimers and heterodimers with CXCR4. It selectively binds I-TAC and SDF1, and appears to involve beta -arrestin2 during signaling. Notably, a CXCR7:CXCR4 heterodimer shows increased responsiveness to SDF1, and I-TAC may actually block some SDF1-mediated migration activity. Mouse CXCR7 is a 7-transmembrane glycoprotein that is 362 amino acids (aa) in length. It contains a 47 aa N-terminal extracellular region plus a 43 aa C-terminal cytoplasmic domain. Over the collective extracellular domains (aa 1-47, 103-118, 184-213 and 274-296), mouse CXCR7 shares 97% and 91% aa identity with rat and human CXCR7, respectively.
