Mouse DNAM-1/CD226 APC‑conjugated Antibody

R&D Systems | Catalog # FAB4436A

R&D Systems
Discontinued Product
FAB4436A has been discontinued. View all DNAM-1/CD226 products.

Key Product Details

Species Reactivity

Mouse

Applications

Flow Cytometry

Label

Allophycocyanin (Excitation = 620-650 nm, Emission = 660-670 nm)

Antibody Source

Monoclonal Rat IgG2B Clone # 838216
View all DNAM-1/CD226 Primary Antibodies »

Product Specifications

Immunogen

Mouse myeloma cell line NS0-derived recombinant mouse DNAM-1/CD226
Met1-Pro254
Accession # Q8K4F0

Specificity

Detects mouse DNAM-1/CD226 in ELISAs. In direct ELISAs, no cross-reactivity with recombinant human DNAM-1/CD226 is observed.

Clonality

Monoclonal

Host

Rat

Isotype

IgG2B

Scientific Data Images for Mouse DNAM-1/CD226 APC‑conjugated Antibody

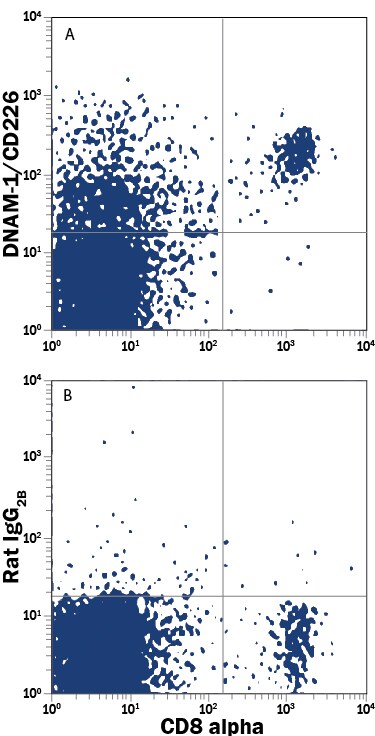

Detection of DNAM-1/CD226 antibody in Mouse Splenoctyes antibody by Flow Cytometry.

Detection of DNAM-1/CD226 in Mouse Splenoctyes by Flow Cytometry.

Mouse splenocytes were stained with Rat Anti-Mouse CD8a PE-conjugated Monoclonal Antibody (Catalog # FAB116P) and either (A) Rat Anti-Mouse DNAM-1/CD226 APC-conjugated Monoclonal Antibody (Catalog # FAB4436A) or (B) Rat IgG2BAllophycocyanin Isotype Control (Catalog # IC013A). View our protocol for Staining Membrane-associated Proteins.

Applications for Mouse DNAM-1/CD226 APC‑conjugated Antibody

Application
Recommended Usage

Flow Cytometry

10 µL/106 cells
Sample: Mouse splenocytes

Spectra Viewer

Plan Your Experiments

Use our spectra viewer to interactively plan your experiments, assessing multiplexing options. View the excitation and emission spectra for our fluorescent dye range and other commonly used dyes.

Spectra Viewer
Spectra Viewer

Flow Cytometry Panel Builder

Bio-Techne Knows Flow Cytometry

Save time and reduce costly mistakes by quickly finding compatible reagents using the Panel Builder Tool.

Advanced Features

  • Spectra Viewer - Custom analysis of spectra from multiple fluorochromes
  • Spillover Popups - Visualize the spectra of individual fluorochromes
  • Antigen Density Selector - Match fluorochrome brightness with antigen density
Build Your Panel Now
Flow Cytometry

Formulation, Preparation, and Storage

Purification

Protein A or G purified from cell culture supernatant

Formulation

Supplied in a saline solution containing BSA and Sodium Azide.

Shipping

The product is shipped with polar packs. Upon receipt, store it immediately at the temperature recommended below.

Stability & Storage

Store the unopened product at 2 - 8° C. Do not use past expiration date. Protect from light.

Background: DNAM-1/CD226

DNAX accessory molecule-1 (DNAM-1), also known as CD226, is a 63-65 kDa type I transmembrane glycoprotein that belongs to the immunoglobulin superfamily. Mature mouse DNAM has a 236 amino acid (aa) extracellular domain (ECD) that contains two Ig-like C2-set domains, and possesses a 58 aa cytoplasmic region that contains motifs for binding PDZ domains and band 4.1 family proteins. Within the ECD, mouse DNAM-1 shares 52% and 86% aa sequence identity with human and rat DNAM-1, respectively. Additional cDNA transcripts of mouse DNAM-1 may give rise to secreted or transmembrane isoforms with ECD deletions. DNAM-1 is expressed on several lymphoid and myeloid cell types including NK cells, CD8+ T cells, CD4+ Th1 cells, NKT cells, monocytes, mast cells and plateletes and interacts with CD155/PVR and Nectin-2/CD112 in trans, and with LFA-1 in cis. Ligation of DNAM-1 promotes the activation of NK cells, CD8+ T cells, and mast cells, induces dendritic cell maturation, initiates megakaryocyte and activated platelet adhesion to vascular endothelial cells, and stimulates monocyte extravasation; conversely, it inhibits the formation of osteoclasts. Platelet-endothelium interactions that are mediated by DNAM-1 enable the metastasis of tumor cells to the lung. On activated, but not resting NK, T, and mast cells, the cis association of DNAM-1 with CD18 contributes to tyrosine and serine phosphorylation of DNAM-1 during activation. Finally, DNAM-1 is now known to differentiate between DNAM-1+ NK cells that produce inflammatory cytokines, an DNAM-1- NK cells that secrete MIP-1 chemokines.

Long Name

DNAX Accessory Molecule 1

Alternate Names

CD226, DNAM1, PTA1, TLiSA1

Entrez Gene IDs

10666 (Human); 225825 (Mouse); 307199 (Rat); 102117316 (Cynomolgus Monkey)

Gene Symbol

CD226

UniProt

Q8K4F0
