Mouse VISTA/B7-H5/PD-1H APC-conjugated Antibody


  • Species Reactivity
    Mouse
  • Specificity
    Detects mouse VISTA/B7-H5/PD-1H in direct ELISAs and Western blots. In direct ELISAs, approximately 25% cross-reactivity with recombinant human VISTA/B7-H5/PD-1H is observed.
  • Source
    Polyclonal Sheep IgG
  • Purification
    Antigen Affinity-purified
  • Immunogen
    Mouse myeloma cell line NS0-derived recombinant mouse VISTA/B7-H5/PD-1H
    Phe33-Ala191
    Accession # Q9D659
  • Formulation
    Supplied in a saline solution containing BSA and Sodium Azide.
  • Label
    Allophycocyanin
Applications
  •
    Recommended
    Concentration
    Sample
  • Flow Cytometry
    10 µL/106 cells
    See below
Please Note: Optimal dilutions should be determined by each laboratory for each application. General Protocols are available in the Technical Information section on our website.
Data Examples

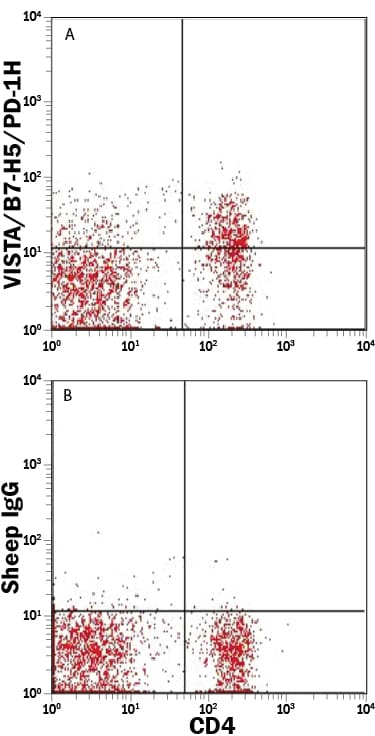

Detection of VISTA/B7-H5/PD-1H in Mouse Splenocytes by Flow Cytometry. Mouse splenocytes were stained with Rat Anti-Mouse CD4 PE‑conjugated Monoclonal Antibody (Catalog # FAB554P) and either (A) Sheep Anti-Mouse VISTA/B7-H5/PD-1H APC‑conjugated Antigen Affinity-purified Polyclonal Antibody (Catalog # FAB7005A) or (B) Normal Sheep IgG Allophycocyanin Control (Catalog # IC016A). View our protocol for Staining Membrane-associated Proteins.

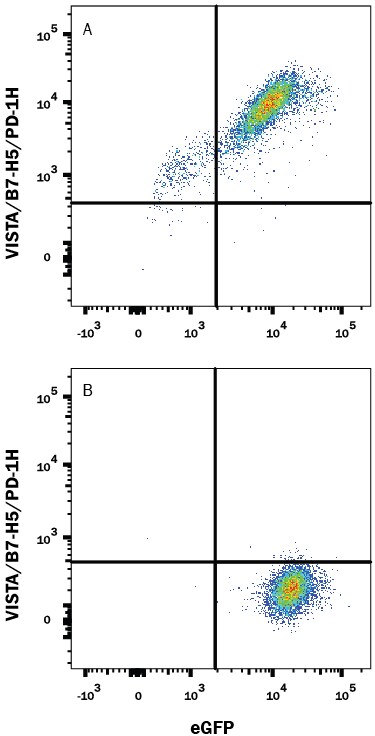

Detection of VISTA/B7-H5/PD-1H in HEK293 Human Cell Line Transfected with Mouse VISTA and eGFP by Flow Cytometry. HEK293 human embryonic kidney cell line transfected with either (A) mouse VISTA or (B) irrelevant transfectants and eGFP was stained with Sheep Anti-Mouse VISTA/B7-H5/PD-1H APC‑conjugated Antigen Affinity-purified Polyclonal Antibody (Catalog # FAB7005A). Quadrant markers were set based on control antibody staining (Catalog # IC016A). View our protocol for Staining Membrane-associated Proteins.
Preparation and Storage
  • Shipping
    The product is shipped with polar packs. Upon receipt, store it immediately at the temperature recommended below.
  • Stability & Storage
    Protect from light. Do not freeze.
    • 12 months from date of receipt, 2 to 8 °C as supplied.
Background: VISTA/B7-H5/PD-1H

VISTA, also known as B7-H5, PD-1H, Platelet Receptor Gi24, Dies1 (Differentiation of ESC-1), SISP1 and C10orf54, is a 55-65 kDa member of the Ig superfamily. It is a transmembrane molecule expressed in bone, on embryonic stem cells (ESCs), and on tumor cell surfaces. On ESCs, VISTA appears to positively interact with BMP4, potentiating BMP signaling and the transition from an undifferentiated to a differentiated state. On tumor cells, VISTA both promotes MT1-MMP expression and activity, and serves as a substrate for MT1-MMP. This increases the potential for cell motility. Mature mouse VISTA is a 277 amino acid (aa) type I transmembrane glycoprotein (aa 33-309). It contains a 149 aa extracellular region (aa 33-191) with one V-type Ig-like domain (aa 33-161) and a 97 aa cytoplasmic domain. Based on human VISTA, mouse Gi24 will likely undergo proteolytic cleavage by MT1-MMP, generating a soluble 30 kDa extracellular fragment, plus a 25-30 kDa membrane-bound fragment. There are two potential isoform variants. One contains a deletion of aa 127-187, while another shows an alternative start site at Met82. Over aa 33-191, mouse VISTA/Dies1 shares 78% and 70% aa sequence identity with rat and human VISTA, respectively.

  • Entrez Gene IDs:
    64115 (Human); 74048 (Mouse); 690899 (Rat); 102116468 (Cynomolgus Monkey)
  • Alternate Names:
    4632428N05Rik; B7H5; B7-H5; C10orf54; chromosome 10 open reading frame 54; Dies1; Gi24; PD1H; PD-1H; platelet receptor Gi24; PP2135; SISP1; stress induced secreted protein 1; VISTA
