NKG2D/CD314 Antibody

Novus Biologicals | Catalog # NB100-1891

Novus Biologicals
100% Guarantee

Key Product Details

Species Reactivity

Validated:

Human

Predicted:

Mouse (100%), Rat (100%). Backed by our 100% Guarantee.

Applications

Western Blot, Peptide ELISA, Flow Cytometry

Label

Unconjugated

Antibody Source

Polyclonal Goat IgG
View all NKG2D/CD314 Primary Antibodies »

Product Specifications

Immunogen

Peptide with sequence C-KVYSKEDQDLLK corresponding to internal region according to NP_031386.2.

Clonality

Polyclonal

Host

Goat

Isotype

IgG

Scientific Data Images for NKG2D/CD314 Antibody

Western Blot: NKG2D/CD314 Antibody [NB100-1891]

Western Blot: NKG2D/CD314 Antibody [NB100-1891]

Western Blot: NKG2D/CD314 Antibody [NB100-1891] - Staining of MOLT-4 cell lysate (A) + peptide (B) with antibody at 0.5 ug/mL (35ug protein in RIPA buffer). Detected by chemiluminescence.

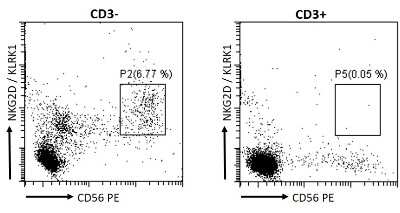

Flow Cytometry: NKG2D/CD314 Antibody [NB100-1891]

Flow Cytometry: NKG2D/CD314 Antibody [NB100-1891]

Flow Cytometry: NKG2D/CD314 Antibody [NB100-1891] - Flow cytometric analysis of human peripheral blood monocytes. Primary incubation 30 minutes (10ug/ml) followed by Alexa Fluor 488 secondary antibody (1ug/ml).

Applications for NKG2D/CD314 Antibody

Application
Recommended Usage

Flow Cytometry

10 ug/ml

Peptide ELISA

Detection limit 1:64000

Western Blot

0.1 - 0.5 ug/mL
Application Notes
WB: Approx 36-37 kDa band observed in lysates of cell line MOLT4 (calculated MW of 25.3kDa according to NP_031386.2).

Flow Cytometry Panel Builder

Bio-Techne Knows Flow Cytometry

Save time and reduce costly mistakes by quickly finding compatible reagents using the Panel Builder Tool.

Advanced Features

  • Spectra Viewer - Custom analysis of spectra from multiple fluorochromes
  • Spillover Popups - Visualize the spectra of individual fluorochromes
  • Antigen Density Selector - Match fluorochrome brightness with antigen density
Build Your Panel Now
Flow Cytometry

Formulation, Preparation, and Storage

Purification

Immunogen affinity purified

Formulation

Tris saline (20 mM Tris pH 7.3, 150 mM NaCl), 0.5% BSA

Preservative

0.02% Sodium Azide

Concentration

0.5 mg/ml

Shipping

The product is shipped with polar packs. Upon receipt, store it immediately at the temperature recommended below.

Stability & Storage

Store at -20C. Avoid freeze-thaw cycles.

Background: NKG2D/CD314

Natural killer group 2 member D (NKG2D), also known as killer lectin-like receptor subfamily K member 1 (KLRK1) and CD314, is a 42 kDa type II transmembrane protein belonging to the C-type lectin superfamily and is an activating receptor for NK cells (1). NKG2D is expressed on innate and adaptive immune cells such as NK cells, NKT cells, CD8+ T cells, and gammadelta T cells (1-4). Under pathological conditions, including Crohn's disease and Rheumatoid arthritis, NKG2D expression can be induced on CD4+ cells (2,3). NKG2D is synthesized as a protein of 216 amino acids (aa) in length with a theoretical molecular weight of 25.3 kDa (5). The full NKG2D receptor is expressed on the cell surface as a disulfide-linked homodimer and, in humans, has several ligands expressed on tumor cells including MHC class I-related genes A and B (MICA and MICB) and 6 members of the UL16-binding protein (ULBP) family (1-4, 6). NKG2D interaction with its ligand results in activation of NK cells via the recruitment of adapter molecules DNAX-activating protein of 10 kDa (DAP10) or DAP12 homodimers to the intracellular tail region of NKG2D (1-4, 6). In humans, NKG2D can only bind DAP10; however, mice have both short and long NKG2D isoforms which can also bind DAP12 (2-4, 6). Following NKG2D receptor and ligand interaction, the YXXM motif of the DAP10 adapter molecule initiates a downstream signaling cascade through Grb2 and PI3K pathways, resulting in NK cell cytotoxicity (4,6).

In general, NKG2D signaling has dual functions, playing a role in both immune surveillance and immune escape (4,6). Detection of viruses or pathogens and corresponding cytokine production induces NKG2D-ligand expression on dendritic cells and macrophages as well as NKG2D receptor upregulation on NK cells to initiate an immune response (1,2,4,6). Similarly, NKG2D-ligand expression on tumor cells is upregulated in cancers such as liver cancer, ovarian cancer, colon cancer, and leukemia, and the NKG2D/NKG2D-ligand signaling axis functions in preventing progression and metastasis (1,4,6). By contrast, NKG2D signaling also mediates tumor escape through ligand shedding via proteases from the matrix metalloproteinase (MMP) and a disintegrin and metalloprotease (ADAM) families and transforming growth factor (TGF)-beta inhibition of T cell and NK cell function (4). A number of therapeutic strategies targeting the NKG2D receptor-ligand pathway have been developed for cancer immunotherapies including upregulating NKG2D expression on immune cells via soluble cytokines, modulating ligand expression with histone deacetylase (HDAC) inhibitors, or inhibiting ligand shedding molecules like ADAMs and MMPs (1,4,6). Alternatively, in instances of autoimmune diseases or inflammation, NKG2D blocking strategies are of interest (6).

References

1. Wang, J., Li, C. D., & Sun, L. (2020). Recent Advances in Molecular Mechanisms of the NKG2D Pathway in Hepatocellular Carcinoma. Biomolecules, 10(2), 301. https://doi.org/10.3390/biom10020301

2. Stojanovic, A., Correia, M. P., & Cerwenka, A. (2018). The NKG2D/NKG2DL Axis in the Crosstalk Between Lymphoid and Myeloid Cells in Health and Disease. Frontiers in immunology, 9, 827. https://doi.org/10.3389/fimmu.2018.00827

3. Wensveen, F. M., Jelencic, V., & Polic, B. (2018). NKG2D: A Master Regulator of Immune Cell Responsiveness. Frontiers in immunology, 9, 441. https://doi.org/10.3389/fimmu.2018.00441

4. Liu, H., Wang, S., Xin, J., Wang, J., Yao, C., & Zhang, Z. (2019). Role of NKG2D and its ligands in cancer immunotherapy. American journal of cancer research, 9(10), 2064-2078.

5. Uniprot (P26718)

6. Lanier L. L. (2015). NKG2D Receptor and Its Ligands in Host Defense. Cancer immunology research, 3(6), 575-582. https://doi.org/10.1158/2326-6066.CIR-15-0098

Long Name

Natural Killer G2D

Alternate Names

CD314, D12S2489E, KLRK1

Entrez Gene IDs

22914 (Human); 27007 (Mouse); 24934 (Rat)

Gene Symbol

KLRK1

UniProt

NP_031386.1 (Human)

Additional NKG2D/CD314 Products

Product Documents for NKG2D/CD314 Antibody

Certificate of Analysis

To download a Certificate of Analysis, please enter a lot or batch number in the search box below.

Download SDS

Product Specific Notices for NKG2D/CD314 Antibody

This product is for research use only and is not approved for use in humans or in clinical diagnosis. Primary Antibodies are guaranteed for 1 year from date of receipt.

Citations for NKG2D/CD314 Antibody

Customer Reviews for NKG2D/CD314 Antibody

There are currently no reviews for this product. Be the first to review NKG2D/CD314 Antibody and earn rewards!

Have you used NKG2D/CD314 Antibody?

Submit a review and receive an Amazon gift card!

$25/€18/£15/$25CAN/¥2500 Yen for a review with an image

$10/€7/£6/$10CAN/¥1110 Yen for a review without an image

Submit a review
Amazon Gift Card

Protocols

Find general support by application which include: protocols, troubleshooting, illustrated assays, videos and webinars.

FAQs

No product specific FAQs exist for this product.

View all FAQs for Antibodies
