Recombinant BatCoV RaTG13 Spike RBD Fc Chimera Protein, CF

R&D Systems | Catalog # 10556-CV

R&D Systems
100% Guarantee

Key Product Details

  • R&D Systems CHO-derived Recombinant BatCoV RaTG13 Spike RBD Fc Chimera Protein (10556-CV)
  • Quality control testing to verify active proteins with lot specific assays by in-house scientists
  • All R&D Systems proteins are covered with a 100% guarantee

Source

CHO

Accession Number

QHR63300.2

Structure / Form

Disulfide-linked homodimer

Applications

Bioactivity
View all Spike RBD Proteins and Enzymes »

Why choose R&D Systems Recombinant BatCoV RaTG13 Spike RBD Fc Chimera Protein?

  • Guaranteed Bioactivity and High Purity: Bioactivity tested by functional ELISA and purity determined by SDS-PAGE to be greater than 95%.
  • Lot-to-Lot Consistency: Stringent QC testing performed on each lot to ensure consistent activity and purity.
  • Bulk Quantities Available: Bulk up and save with large mass quantities to meet your research needs. Supply agreements available, partner with us. Please contact us.
  • Most Respected, Most Cited Brand in Proteins: With over 35 years of providing the best recombinant proteins to the scientific community, R&D Systems continues to lead the industry in quality, activity, and purity.

Interested in other Coronavirus proteins including SARS-CoV-2 Spike proteins? View Products

Product Specifications

Source

Chinese Hamster Ovary cell line, CHO-derived batcov ratg13 Spike RBD protein
BatCoV RaTG13 Spike RBD
(Arg319-Asn542)
Accession # QHR63300.2		 IEGRMD Human IgG1
(Pro100-Lys330)
N-terminus C-terminus

Purity

>95%, by SDS-PAGE visualized with Silver Staining and quantitative densitometry by Coomassie® Blue Staining.

Endotoxin Level

<0.10 EU per 1 μg of the protein by the LAL method.

N-terminal Sequence Analysis

Arg 319

Predicted Molecular Mass

52 kDa

SDS-PAGE

62-68 kDa, under reducing conditions

Activity

Measured by its binding ability in a functional ELISA with Recombinant Mouse ACE-2 His-tag  (Catalog # 3437-ZN).

Scientific Data Images for Recombinant BatCoV RaTG13 Spike RBD Fc Chimera Protein, CF

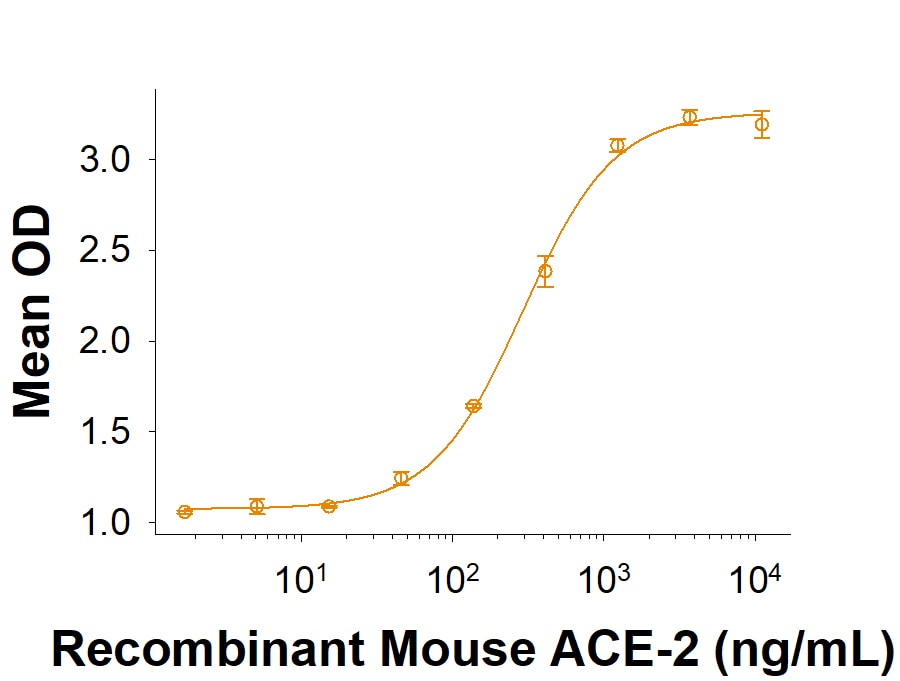

Recombinant BatCoV RaTG13 Spike RBD Fc Chimera Protein Binding Activity

Recombinant BatCoV RaTG13 Spike RBD Fc Chimera Protein Binding Activity

Recombinant BatCoV RaTG13 Spike RBD Fc Chimera (Catalog # 10556-CV) binds Recombinant Mouse ACE-2 His-tag (3437-ZN) in a functional ELISA.

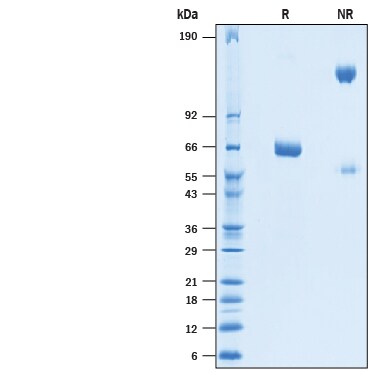

Recombinant BatCoV RaTG13 Spike RBD Fc Chimera Protein SDS-PAGE

Recombinant BatCoV RaTG13 Spike RBD Fc Chimera Protein SDS-PAGE

2 μg/lane of Recombinant BatCoV RaTG13 Spike RBD Fc Chimera Protein (10556-CV) was resolved with SDS-PAGE under reducing (R) and non-reducing (NR) conditions and visualized by Coomassie® Blue staining, showing bands at 62-68 kDa and 124-136 kDa, respectively.

Formulation, Preparation, and Storage

10556-CV
Formulation Lyophilized from a 0.2 μm filtered solution in PBS with Trehalose.
Reconstitution Reconstitute at 500 μg/mL in PBS.
Shipping The product is shipped at ambient temperature. Upon receipt, store it immediately at the temperature recommended below.
Stability & Storage Use a manual defrost freezer and avoid repeated freeze-thaw cycles.
  • 12 months from date of receipt, -20 to -70 °C as supplied.
  • 1 month, 2 to 8 °C under sterile conditions after reconstitution.
  • 3 months, -20 to -70 °C under sterile conditions after reconstitution.

Calculators

The reconstitution calculator allows you to quickly calculate the volume of a reagent to reconstitute your vial. Simply enter the mass of reagent and the target concentration and the calculator will determine the rest.

=
÷

Background: Spike RBD

SARS-CoV-2, which causes the global pandemic coronavirus disease 2019 (Covid-19), belongs to a family of viruses known as coronaviruses that are commonly comprised of four structural proteins: Spike protein(S), Envelope protein (E), Membrane protein (M), and Nucleocapsid protein (N) (1).  SARS-CoV-2 Spike Protein (S Protein) is a glycoprotein that mediates membrane fusion and viral entry. The S protein is homotrimeric, with each ~180-kDa monomer consisting of two subunits, S1 and S2 (2). In SARS-Cov-2, as with most coronaviruses, proteolytic cleavage of the S protein into two distinct peptides, S1 and S2 subunits, is required for activation. The S1 subunit is focused on attachment of the protein to the host receptor while the S2 subunit is involved with cell fusion (3-5). Based on structural biology studies, the receptor binding domain (RBD), located in the C-terminal region of S1, can be oriented either in the up/standing or down/lying state (6). The standing state is associated with higher pathogenicity and both SARS-CoV-1 and MERS can access this state due to the flexibility in their respective RBDs. A similar two-state structure and flexibility is found in the SARS-Cov-2 RBD (7). SARS-Cov 2 is likely originated from Bat coronavirus RaTG13. Based on amino acid (aa) sequence homology, the  RBD domain of RaTG13 shares 74.9%, 90.1%, and 20.2% homology with RBD domain of SARS-CoV, SARS-CoV2, and MERS, respectively. Despite high homology to SARS-COV2, five of the six key amino acids involved in ACE2 binding are different in RaTG13, leading to >1000 fold weaker binding to human ACE2 (8, 9). Before binding to the ACE2 receptor, structural analysis of the S1 trimer shows that only one of the three RBD domains in the trimeric structure is in the "up" conformation. This is an unstable and transient state that passes between trimeric subunits but is nevertheless an exposed state to be targeted for neutralizing antibody therapy (10). Polyclonal antibodies to the RBD of the SARS-CoV-2 protein have been shown to inhibit interaction with the ACE2 receptor, confirming RBD as an attractive target for vaccinations or antiviral therapy (11). There is also promising work showing that the RBD may be used to detect presence of neutralizing antibodies present in a patient's bloodstream, consistent with developed immunity after exposure to the SARS-CoV-2 virus (12). Lastly, it has been demonstrated the S Protein can invade host cells through the CD147/EMMPRIN receptor and mediate membrane fusion (13, 14).

References

  1. Wu, F. et al. (2020) Nature 579:265.
  2. Tortorici, M.A. and D. Veesler (2019). Adv. Virus Res. 105:93.
  3. Bosch, B.J. et al. (2003). J. Virol. 77:8801.
  4. Belouzard, S. et al. (2009) Proc. Natl. Acad. Sci. 106:5871.
  5. Millet, J.K. and G. R. Whittaker (2015) Virus Res. 202:120.
  6. Yuan, Y. et al. (2017) Nat. Commun. 8:15092.
  7. Walls, A.C. et al. (2010) Cell 180:281.
  8. Malayia, J. et al. (2020) J Med. Virol. https://doi.org/10.1002/jmv.26261.
  9. Wrobel, A.G. et al. (2020) Nat. struct. Mol. Biol. https://doi.org/10.1038/s41594-020-0468-7.
  10. Ortega, J.T. et al. (2020) EXCLI J. 19:410.
  11. Wrapp, D. et al. (2020) Science 367:1260.
  12. Tai, W. et al. (2020) Cell. Mol. Immunol. https://doi.org/10.1016/j.it.2020.03.007.
  13. Okba, N. M. A. et al. (2020). Emerg. Infect. Dis. https://doi.org/10.3201/eid2607.200841.
  14. Wang, X. et al. (2020) https://doi.org/10.1038/s41423-020-0424-9.
  15. Wang, K. et al. (2020) bioRxiv https://doi.org/10.1101/2020.03.14.988345.

Long Name

Spike Receptor Binding Domain

Entrez Gene IDs

3200426 (HCoV-HKU1); 14254594 (MERS-CoV); 1489668 (SARS-CoV); 43740568 (SARS-CoV-2)

Gene Symbol

S

UniProt

QHR63300.2
