Recombinant Human DNAM-1/CD226 Fc Avi-tag Protein, CF

Biotinylated
Catalog # Availability Size / Price Qty
AVI666-050
Recombinant Human DNAM-1/CD226 Fc Avi-tag Protein, CF Binding Activity
2 Images
Product Details
FAQs
Supplemental Products
Reviews

Recombinant Human DNAM-1/CD226 Fc Avi-tag Protein, CF Summary

Purity
>95%, by SDS-PAGE visualized with Silver Staining and quantitative densitometry by Coomassie® Blue Staining.
Endotoxin Level
<0.10 EU per 1 μg of the protein by the LAL method.
Activity
Measured by its binding ability in a functional ELISA. When Recombinant Human CD155/PVR Fc Chimera (Catalog # 9174-CD) is immobilized at 2 μg/mL (100 μL/well), the concentration of Recombinant Human DNAM-1/CD226 Fc Chimera Avi-tag (Catalog # AVI666) that produces 50% of the optimal binding response is 0.07‑0.42 μg/mL.
Source
Chinese Hamster Ovary cell line, CHO-derived human DNAM-1/CD226 protein
Human DNAM-1
(Glu19-Asn247)
Accession # Q15762
HIEGRMD Human IgG1
(Pro100-Lys330)
Avi-tag
N-terminusC-terminus
Accession #
N-terminal Sequence
Analysis
Glu19
Structure / Form
Disulfide-linked homodimer, biotinylated via Avi-tag
Predicted Molecular Mass
55 kDa
SDS-PAGE
83-95 kDa

Product Datasheets

Carrier Free

What does CF mean?

CF stands for Carrier Free (CF). We typically add Bovine Serum Albumin (BSA) as a carrier protein to our recombinant proteins. Adding a carrier protein enhances protein stability, increases shelf-life, and allows the recombinant protein to be stored at a more dilute concentration. The carrier free version does not contain BSA.

What formulation is right for me?

In general, we advise purchasing the recombinant protein with BSA for use in cell or tissue culture, or as an ELISA standard. In contrast, the carrier free protein is recommended for applications, in which the presence of BSA could interfere.

AVI666

Formulation Lyophilized from a 0.2 μm filtered solution in PBS with Trehalose.
Reconstitution Reconstitute at 500 μg/mL in PBS.
Shipping The product is shipped at ambient temperature. Upon receipt, store it immediately at the temperature recommended below.
Stability & Storage: Use a manual defrost freezer and avoid repeated freeze-thaw cycles.
  • 12 months from date of receipt, -20 to -70 °C as supplied.
  • 1 month, 2 to 8 °C under sterile conditions after reconstitution.
  • 3 months, -20 to -70 °C under sterile conditions after reconstitution.

Data Images

Binding Activity Binding Activity View Larger

When Recombinant Human CD155/PVR Fc Chimera (Catalog # 9174-CD) is immobilized at 2 μg/mL, Recombinant Human DNAM-1/CD226 Fc Chimera Avi-tag (Catalog # AVI666) binds with an ED50 of 0.07-0.42 μg/mL.

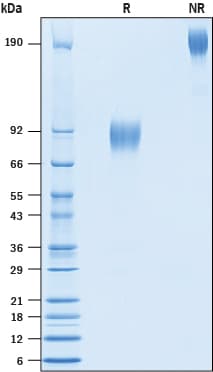

SDS-PAGE SDS-PAGE View Larger

2 μg/lane of Recombinant Human DNAM-1/CD266 Fc Chimera Avi-tag (Catalog # AVI666) was resolved with SDS-PAGE under reducing (R) and non-reducing (NR) conditions and visualized by Coomassie® Blue staining, showing bands at 83-95 kDa and 170-190 kDa, respectively.

Reconstitution Calculator

Reconstitution Calculator

The reconstitution calculator allows you to quickly calculate the volume of a reagent to reconstitute your vial. Simply enter the mass of reagent and the target concentration and the calculator will determine the rest.

=
÷

Background: DNAM-1/CD226

DNAX accessory molecule-1 (DNAM-1), also known as CD226, is a 65 kDa type I transmembrane glycoprotein in the immunoglobulin superfamily (1). Mature human DNAM-1 contains a 236 amino acid (aa) extracellular domain (ECD) with two Ig-like C2-set domains and a 61 aa cytoplasmic region that contains motifs for binding PDZ domains and band 4.1 family proteins (1, 2). Within the ECD, human DNAM-1 shares 50% and 52% aa sequence identity with mouse and rat DNAM-1, respectively. DNAM-1 is expressed on multiple lymphoid and myeloid cells and interacts with CD155/PVR and Nectin-2/CD112 (3, 4). Ligation of DNAM-1 promotes the activation of NK cells, CD8+ T cells, and mast cells (2-6), dendritic cell maturation, megakaryocyte and activated platelet adhesion to vascular endothelial cells, and monocyte extravasation; it inhibits the forrmation of osteoclasts (7-10). Platelet-endothelium interactions mediated by DNAM-1 enable the metastasis of tumor cells to the lung (11). In activated, but not in resting NK, T, and mast cells, the cis association of DNAM-1 with CD18 contributes to the tyrosine and serine phosphorylation of DNAM-1 during activation (6, 9, 12-14).

References
  1. Fuchs, A. and M. Colonna (2006) Semin. Cancer Biol. 16:359.
  2. Shibuya, A. et al. (1996) Immunity 4:573.
  3. Bottino, C. et al. (2003) J. Exp. Med. 198:557.
  4. Tahara-Hanaoka, S. et al. (2004) Int. Immunol. 16:533.
  5. Dardalhon, V. et al. (2005) J. Immunol. 175:1558.
  6. Bachelet, I. et al. (2006) J. Biol. Chem. 281:27190.
  7. Reymond, N. et al. (2004) J. Exp. Med. 199:1331.
  8. Kakehi, S. et al. (2007) Mol. Cell. Biochem. 301:209.
  9. Kojima, H. et al. (2003) J. Biol. Chem. 278:36748.
  10. Tahara-Hanaoka, S. et al. (2006) Blood 107:1491.
  11. Morimoto, K. et al. (2007) Oncogene July 16 epub.
  12. Shibuya, K. et al. (1999) Immunity 11:615.
  13. Shibuya, K. et al. (2003) J. Exp. Med. 198:1829.
  14. Shibuya, A. et al. (1998) J. Immunol. 166:1671.
Long Name
DNAX Accessory Molecule 1
Entrez Gene IDs
10666 (Human); 225825 (Mouse); 307199 (Rat); 102117316 (Cynomolgus Monkey)
Alternate Names
CD226 antigenplatelet and T cell activation antigen 1; CD226 molecule; CD226; DNAM1; DNAM-1; DNAM1adhesion glycoprotein; DNAM-1DNAX accessory molecule-1; DNAX accessory molecule 1; PTA1; T lineage-specific activation antigen 1 antigen; TLiSA1
