Simple Plex Human IL-10 2nd Gen Assay Cartridge

Name: Simple Plex Human IL-10 2nd Gen Assay Cartridge
Brand: R&D Systems
SKU: SPCKB-PS-009385
Price: 600 USD
Availability: InStock

R&D Systems | Catalog # SPCKB-PS-009385

Submit a review

Citations

Product Documents

Simple Plex Human IL-10 2nd Gen assay kit for use on Ella instrument. Contains cartridge, sample diluent SD13, and wash buffer. Part # starting with ST01 ships in 3-5 days.Sample type indicated with PS (Plasma/Serum).

Compatible Instruments
Product Specifications
Precision
Recovery
Linearity
Scientific Data
Preparation & Storage
Background
Product Documents
Specific Notices
Research Areas

Key Product Details

Assay Length

90 minutes

Sample Type & Volume Required Per Well*

Cell Culture Supernates (10 µL), Serum (25 µL), EDTA Plasma (25 µL), Heparin Plasma (25 µL)

Sensitivity

0.17 pg/mL

Assay Range

0.38-1446 pg/mL (Cell Culture Supernates, Serum, EDTA Plasma, Heparin Plasma)

Simple Plex Human IL-10 2nd Gen Assay Cartridge Summary

Simple Plex assay for the detection of human Interleukin 10 (IL-10) in cell culture supernatant (CCS), serum and plasma (EDTA/Heparin).

*The Sample Volume represented is based on the amount of sample incorporated into the reaction after taking into account the assay's minimum required dilution for a given matrix. Serial dilution may be necessary to achieve some of the final sample volumes represented.

View all IL-10 Simple Plex »

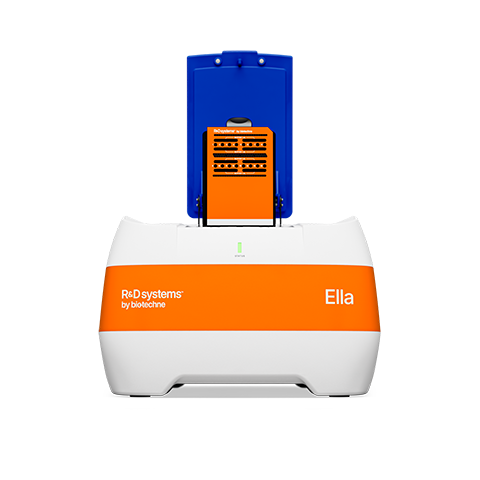

Compatible Instruments

Ella Automated Immunoassay System

Efficiently analyze biomarkers with Ella's advanced technology, providing accurate, precise results in under 90 minutes. Quantify up to 8 targets per assay through a streamlined automated workflow. Choose from >350 highly validated Simple Plex assays or Simple Plex discovery assays.

Learn More

Product Specifications

Assay Type

Automated sandwich ELISA

Format

Microfluidic cartridge containing three Glass Nano Reactors (GNR)

Species

Human

Specificity

Natural and recombinant human IL-10.

Cross-reactivity

< 0.5% cross-reactivity observed with available related molecules. < 50% cross-species reactivity observed with species tested.

Interference

No significant interference observed with available related molecules.

Precision

Intra-Assay Precision (Precision within an assay) Each control was tested 16 times in one assay.

Inter-Assay Precision (Precision between assays) Replicates of each control were tested in multiple assays performed by at least three technicians using two lots of reagents.

Cell Culture Supernates, EDTA Plasma, Heparin Plasma, Serum

	Intra-Assay Precision		Inter-Assay Precision
Sample	1	2	1	2
n	16	16	35	37
Mean (pg/mL)	8.89	462	10.8	477
Standard Deviation	0.193	16.0	0.940	24.5
CV%	2.2	3.5	8.7	5.1

Recovery for Simple Plex Human IL-10 2nd Gen Assay Cartridge

Recovery at three different spiked concentrations within the range of the assay was evaluated.

Sample Type	Average % Recovery	Range %
Cell Culture Media (n=2)	101	100-103
EDTA Plasma (n=4)	91	84-93
Heparin Plasma (n=4)	91	79-95
Serum (n=4)	95	93-97

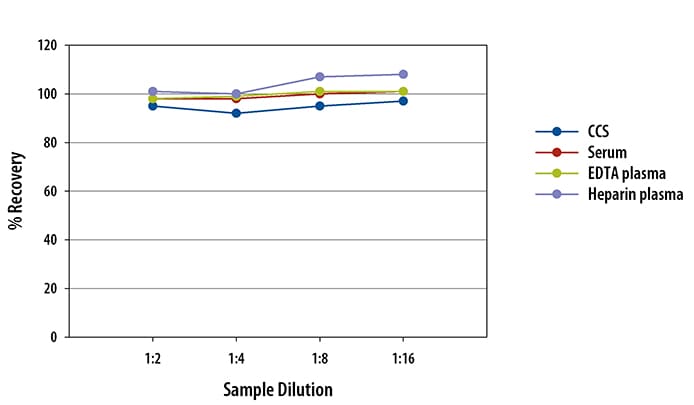

Linearity

Scientific Data Images for Simple Plex Human IL-10 2nd Gen Assay Cartridge

Human IL-10 (2nd Generation) Ella Assay Standard Curve

Preparation and Storage

Shipping

The product is shipped with polar packs. Upon receipt, store it immediately at the temperature recommended below.

Stability & Storage

Store the unopened product at 2 - 8 °C. Do not use past expiration date.

Background: IL-10

IL-10 (Interleukin-10) functions as an anti-inflammatory cytokine by inhibiting the expansion and activation of Th1 cells and Th17 cells and by promoting the development of M2 macrophages and regulatory T cells (Treg). Within a tumor microrenvironment, however, IL-10 can inhibit the expansion of both Treg and myeloid-derived suppressor cells (MDSC). IL-10 exerts protective effects including limiting tissue damage in arthritic inflammation and promoting muscle regeneration after injury, but it also contributes to the persistence of viral infections. IL-10 signals through a receptor complex composed of IL-10 R alpha and IL-10 R beta. IL-10 R beta additionally associates with IL-20 R alpha, IL-22 R alpha 1, or IL-28 R alpha to form the receptor complexes for IL-22, IL-26, IL-28, and IL-29.

Long Name

Interleukin 10

Alternate Names

CSIF, GVHDS, IL10, IL10A, TGIF

Entrez Gene IDs

3586 (Human); 16153 (Mouse); 25325 (Rat); 397106 (Porcine); 403628 (Canine); 102133450 (Cynomolgus Monkey); 100034187 (Equine); 493683 (Feline); 100715618 (Guinea Pig); 2949786 (Viral)
