Simple Plex Human IL-13 Cartridge

Name: Simple Plex Human IL-13 Cartridge
Brand: R&D Systems
SKU: SPCKB-PS-000499
Price: 450 USD
Availability: InStock

R&D Systems | Catalog # SPCKB-PS-000499

Submit a review

Citations

Product Documents

Simple Plex Human IL-13 assay kit for use on Ella instrument. Contains cartridge, sample diluent SD13, and wash buffer.

Customize This Cartridge

Simple Plex cartridges are custom built to fit your needs. Choose from over 350 assays spanning human, mouse, rat, and non-human primate. Just select your sample type, cartridge size (16, 32, or 72 samples), and up to 8 analytes per cartridge. Customize this cartridge.

Customize This Cartridge

Compatible Instruments
Product Specifications
Precision
Recovery
Linearity
Scientific Data
Preparation & Storage
Background
Product Documents
Specific Notices
Research Areas

Key Product Details

Assay Length

90 minutes

Sample Type & Volume Required Per Well*

Cell Culture Supernates (10 µL), Serum (25 µL), EDTA Plasma (25 µL), Heparin Plasma (25 µL)

Sensitivity

0.864 pg/mL

Assay Range

4.13-13720 pg/mL (Cell Culture Supernates, Serum, EDTA Plasma, Heparin Plasma)

Simple Plex Human IL-13 Cartridge Summary

Simple Plex assay is for the detection of human Interleukin 13 (IL-13) in cell culture supernatant (CCS), serum, and plasma (EDTA/Heparin) in Sample Diluent SD13.

*The Sample Volume represented is based on the amount of sample incorporated into the reaction after taking into account the assay's minimum required dilution for a given matrix. Serial dilution may be necessary to achieve some of the final sample volumes represented.

View all IL-13 Simple Plex »

Compatible Instruments

Ella Automated Immunoassay System

Efficiently analyze biomarkers with Ella's advanced technology, providing accurate, precise results in under 90 minutes. Quantify up to 8 targets per assay through a streamlined automated workflow. Choose from >350 highly validated Simple Plex assays or Simple Plex discovery assays.

Learn More

Product Specifications

Assay Type

Automated sandwich ELISA

Format

Microfluidic cartridge containing three Glass Nano Reactors (GNR)

Species

Human

Specificity

Natural and recombinant human IL-13.

Cross-reactivity

< 0.5% cross-reactivity observed with available related molecules. < 50% cross-species reactivity observed with species tested.

Interference

No significant interference observed with available related molecules.

Precision

Intra-Assay Precision (Precision within an assay) Each control was tested multiple times in one IL-13 assay.

Inter-Assay Precision (Precision between assays) Replicates of each IL-13 control were tested in multiple assays performed by at least three technicians using two lots of reagents for human IL-13.

Cell Culture Supernates, EDTA Plasma, Heparin Plasma, Serum

	Intra-Assay Precision		Inter-Assay Precision
Sample	1	2	1	2
n	16	16	12	12
Mean (pg/mL)	75.8	4104	73.5	4060
Standard Deviation	2.01	181	4.90	251
CV%	2.7	4.4	6.7	6.2

Recovery for Simple Plex Human IL-13 Cartridge

Recovery for the human IL-13 assays was evaluated at three different spiked concentrations of IL-13 protein.

Sample Type	Average % Recovery	Range %
Cell Culture Supernates (n=4)	95	92-99
EDTA Plasma (n=4)	103	99-112
Heparin Plasma (n=4)	98	93-109
Serum (n=4)	105	96-114

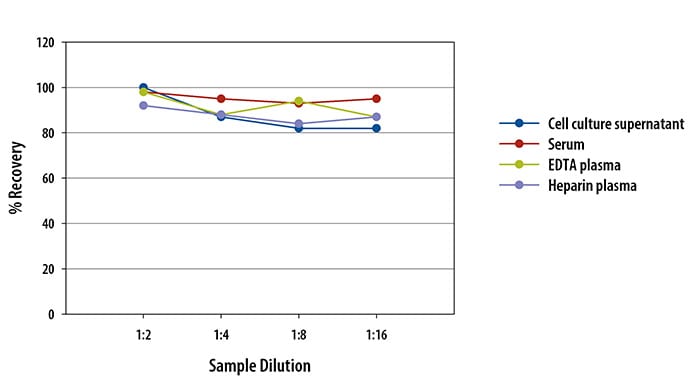

Linearity

Samples containing and/or spiked with high concentrations of human IL-13 were serially diluted with Sample Diluent to produce samples within the dynamic range of the assay

Scientific Data Images for Simple Plex Human IL-13 Cartridge

Simple Plex Human IL-13 Assay Standard Curve

Data shown represents typical performance results for Lower Limit of Quantitation (LLOQ) and Upper Limit of Quantitation (ULOQ) for Simple Plex Human IL-13 Assay. Assay range is 3.6-13,720 pg/mL

Preparation and Storage

Shipping

The product is shipped with polar packs. Upon receipt, store it immediately at the temperature recommended below.

Stability & Storage

Store the unopened product at 2 - 8 °C. Do not use past expiration date.

Background: IL-13

IL-13 (Interleukin-13) plays a key role in the pathogenesis of allergy, cancer, and tissue fibrosis. It is secreted by several helper T cell subsets, NK cells, mast cells, eosinophils, basophils, and visceral smooth muscle cells. IL-13 suppresses the production of proinflammatory cytokines and other cytotoxic substances by macrophages, fibroblasts, and endothelial cells. It promotes B cell activation, immunoglobulin class switching to IgE, and the upregulation of CD23/Fc epsilon RII. IL-13 signals through a receptor complex containing IL-13 R alpha 1 and IL-4 R alpha. This complex also functions as the type 2 IL-4 receptor. IL-13 R alpha 2 binds IL-13 and prevents IL-13 from signaling through the IL-13 R alpha 1/IL-4 R alpha complex. IL-13-bound IL-13 R alpha 2 can directly promote tumor cell invasiveness and the development of tissue fibrosis.
