Simple Plex Mouse GM-CSF Cartridge

Name: Simple Plex Mouse GM-CSF Cartridge
Brand: R&D Systems
SKU: SPCKB-MP-003559
Price: 600 USD
Availability: InStock

R&D Systems | Catalog # SPCKB-MP-003559

Submit a review

Citations

Product Documents

Simple Plex Mouse GM-CSF assay kit for use on Ella instrument. Contains cartridge, sample diluent SD09, and wash buffer.

Customize This Cartridge

Simple Plex cartridges are custom built to fit your needs. Choose from over 350 assays spanning human, mouse, rat, and non-human primate. Just select your sample type, cartridge size (16, 32, or 72 samples), and up to 8 analytes per cartridge. Customize this cartridge.

Customize This Cartridge

Compatible Instruments
Product Specifications
Precision
Recovery
Linearity
Scientific Data
Preparation & Storage
Background
Product Documents
Specific Notices
Research Areas

Key Product Details

Assay Length

90 minutes

Sample Type & Volume Required Per Well*

Cell Culture Supernates (10 µL), Serum (25 µL), EDTA Plasma (25 µL), Heparin Plasma (25 µL)

Sensitivity

0.2 pg/mL

Assay Range

0.63-6040 pg/mL (Cell Culture Supernates, Serum, EDTA Plasma, Heparin Plasma)

Simple Plex Mouse GM-CSF Cartridge Summary

Simple Plex assay is for the detection of mouse Granulocyte Macrophage Colony Stimulating Factor (GM-CSF) in cell culture supernatant (CCS), serum, and plasma (EDTA/Heparin) in Sample Diluent SD09.

*The Sample Volume represented is based on the amount of sample incorporated into the reaction after taking into account the assay's minimum required dilution for a given matrix. Serial dilution may be necessary to achieve some of the final sample volumes represented.

View all GM-CSF Simple Plex »

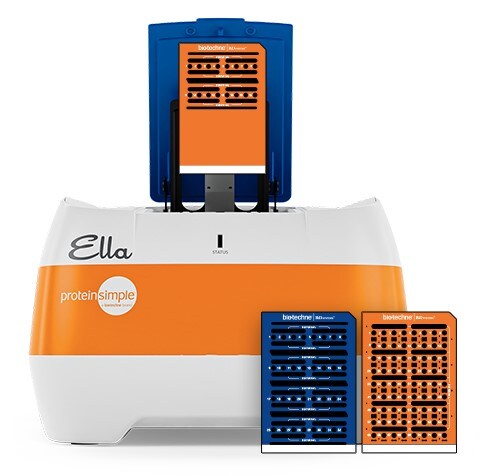

Compatible Instruments

Ella Automated Immunoassay System

Efficiently analyze biomarkers with Ella's advanced technology, providing accurate, precise results in under 90 minutes. Quantify up to 8 targets per assay through a streamlined automated workflow. Choose from >350 highly validated Simple Plex assays or Simple Plex discovery assays.

Learn More

Product Specifications

Assay Type

Automated sandwich ELISA

Format

Microfluidic cartridge containing three Glass Nano Reactors (GNR)

Species

Mouse

Specificity

Natural and recombinant mouse GM-CSF.

Cross-reactivity

< 0.5% cross-reactivity observed with available related molecules. < 50% cross-species reactivity observed with species tested.

Interference

No significant interference observed with available related molecules.

Precision

Intra-Assay Precision (Precision within an assay) Each control was tested multiple times in one GM-CSF assay.

Inter-Assay Precision (Precision between assays) Replicates of each GM-CSF control were tested in multiple assays performed by at least three technicians using two lots of reagents for mouse GM-CSF.

Cell Culture Supernates, EDTA Plasma, Heparin Plasma, Serum

	Intra-Assay Precision		Inter-Assay Precision
Sample	1	2	1	2
n	16	16	99	98
Mean (pg/mL)	24.9	1518	35.9	1727
Standard Deviation	2.07	75.6	2.97	145
CV%	5.9	5.0	8.3	8.4

Recovery for Simple Plex Mouse GM-CSF Cartridge

Recovery for the mouse GM-CSF assays was evaluated at three different spiked concentrations of GM-CSF protein.

Sample Type	Average % Recovery	Range %
EDTA Plasma (n=4)	106	101-110
Heparin Plasma (n=4)	103	93-110
Serum (n=4)	99	97-106

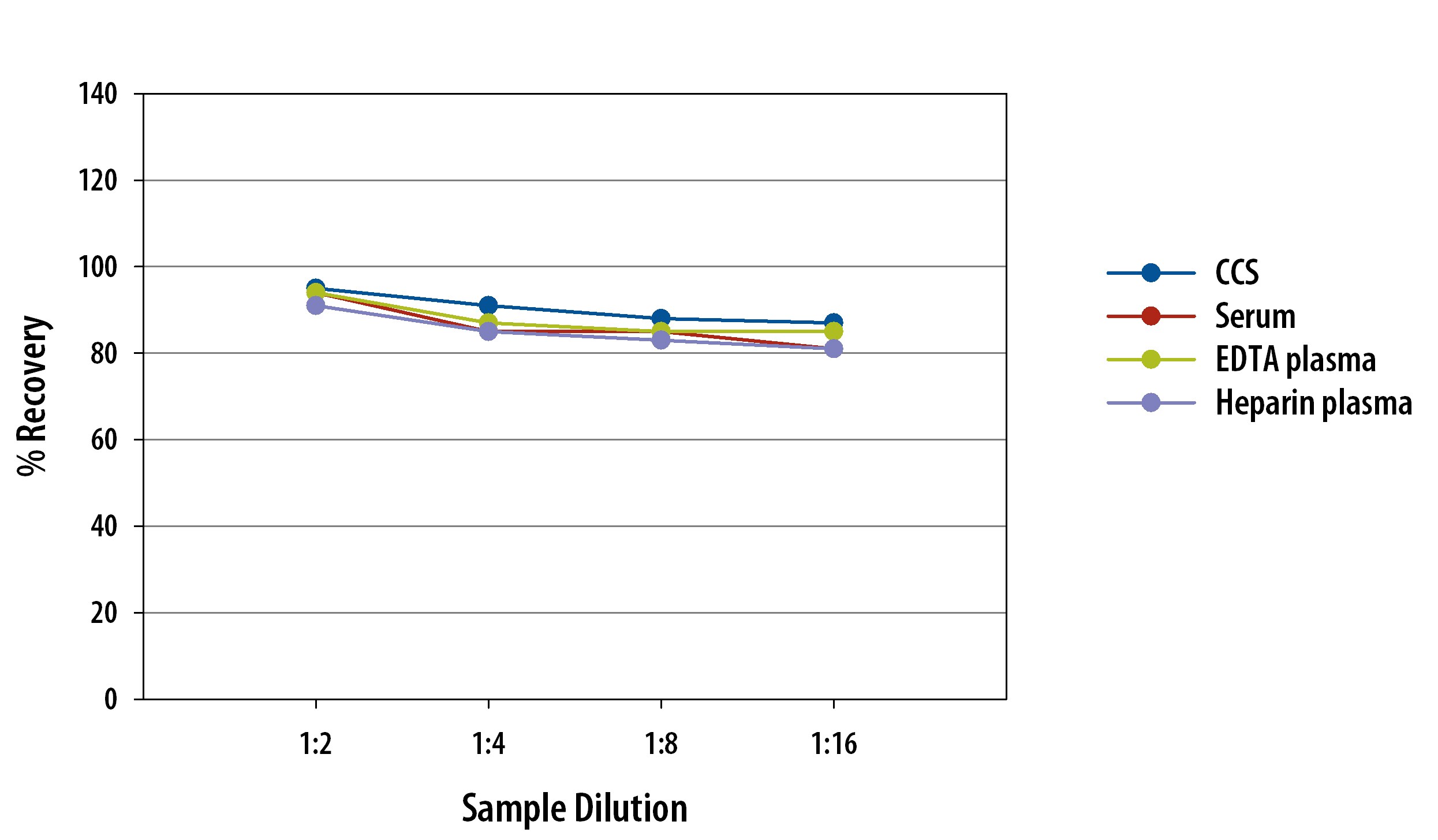

Linearity

Samples containing and/or spiked with high concentrations of mouse GM-CSF were serially diluted with Sample Diluent to produce samples within the dynamic range of the assay.

Scientific Data Images for Simple Plex Mouse GM-CSF Cartridge

Simple Plex Mouse GM-CSF Assay Standard Curve

Data shown represents typical performance results for Lower Limit of Quantitation (LLOQ) and Upper Limit of Quantitation (ULOQ) for Simple Plex Mouse GM-CSF Assay. Assay range is 0.63-6040 pg/mL.

Preparation and Storage

Shipping

The product is shipped with polar packs. Upon receipt, store it immediately at the temperature recommended below.

Stability & Storage

Store the unopened product at 2 - 8 °C. Do not use past expiration date.

Background: GM-CSF

GM-CSF (Granulocyte-Macrophage Colony Stimulating Factor) induces the development of monocytes, neutrophils, eosinophils, and myeloid and dermal dendritic cells. It also acts as a neutrophil and dendritic cell chemoattractant. GM-CSF promotes Th1 and Th17 cell mediated autoimmune inflammation as well as the inflammatory activation of dendritic cells, microglia, alveolar macrophages, and eosinophils. In addition, it cooperates with G-CSF in promoting tumor cell proliferation and invasion. GM-CSF signals through a receptor complex composed of GM-CSF R alpha and the Common beta Chain (beta c) with Syndecan-2 as a potential co-receptor. The beta c subunit is shared by the receptor complexes for IL-3 and IL-5.
