Simple Plex Mouse/Rat VCAM-1/CD106 Cartridge

Name: Simple Plex Mouse/Rat VCAM-1/CD106 Cartridge
Brand: R&D Systems
SKU: SPCKB-MP-008305
Price: 885 USD
Availability: InStock

R&D Systems | Catalog # SPCKB-MP-008305

Submit a review

Citations

Product Documents

Simple Plex Mouse/Rat VCAM-1/CD106 assay kit for use on Ella instrument. Contains cartridge, sample diluent SD09, and wash buffer.

Customize This Cartridge

Simple Plex cartridges are custom built to fit your needs. Choose from over 350 assays spanning human, mouse, rat, and non-human primate. Just select your sample type, cartridge size (16, 32, or 72 samples), and up to 8 analytes per cartridge. Customize this cartridge.

Customize This Cartridge

Compatible Instruments
Product Specifications
Precision
Recovery
Linearity
Scientific Data
Preparation & Storage
Background
Product Documents
Specific Notices
Research Areas

Key Product Details

Assay Length

90 minutes

Sample Type & Volume Required Per Well*

Cell Culture Supernates (10 µL), Serum (10 µL), EDTA Plasma (10 µL), Heparin Plasma (10 µL)

Sensitivity

1.59 pg/mL

Assay Range

7.97-30372 pg/mL (Cell Culture Supernates, Serum, EDTA Plasma, Heparin Plasma)

Simple Plex Mouse/Rat VCAM-1/CD106 Cartridge Summary

Simple Plex assay is for the detection of mouse and rat Vascular Cell Adhesion Molecule 1 (VCAM-1) in cell culture supernatant (CCS), serum, and plasma (EDTA/Heparin) in Sample Diluent SD09.

*The Sample Volume represented is based on the amount of sample incorporated into the reaction after taking into account the assay's minimum required dilution for a given matrix. Serial dilution may be necessary to achieve some of the final sample volumes represented.

View all VCAM-1/CD106 Simple Plex »

Compatible Instruments

Ella Automated Immunoassay System

Efficiently analyze biomarkers with Ella's advanced technology, providing accurate, precise results in under 90 minutes. Quantify up to 8 targets per assay through a streamlined automated workflow. Choose from >350 highly validated Simple Plex assays or Simple Plex discovery assays.

Learn More

Product Specifications

Assay Type

Automated sandwich ELISA

Format

Microfluidic cartridge containing three Glass Nano Reactors (GNR)

Species

Mouse, Rat

Specificity

Natural and recombinant mouse and rat VCAM-1.

Cross-reactivity

< 0.5% cross-reactivity observed with available related molecules. < 50% cross-species reactivity observed with species tested.

Interference

No significant interference observed with available related molecules.

Precision

Intra-Assay Precision (Precision within an assay) Each control was tested multiple times in one VCAM-1 assay.

Inter-Assay Precision (Precision between assays) Replicates of each VCAM-1 control were tested in multiple assays performed by at least three technicians using two lots of reagents for VCAM-1.

Cell Culture Supernates, EDTA Plasma, Heparin Plasma, Serum

	Intra-Assay Precision		Inter-Assay Precision
Sample	1	2	1	2
n	16	16	44	43
Mean (pg/mL)	197	9548	198	10414
Standard Deviation	8.38	546	21.2	1216
CV%	4.2	5.7	10.7	11.7

Recovery for Simple Plex Mouse/Rat VCAM-1/CD106 Cartridge

Recovery for the mouse/rat VCAM-1 assays was evaluated at three different spiked concentrations of VCAM-1 protein.

Sample Type	Average % Recovery	Range %
Cell Culture Media (n=2)	105	103-107

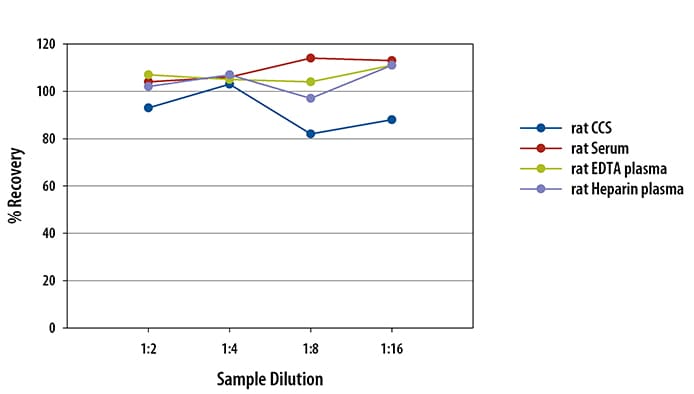

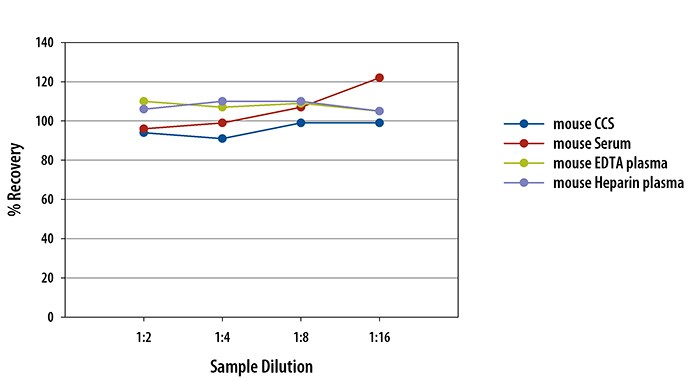

Linearity

Samples containing and/or spiked with high concentrations of mouse/rat VCAM-1 were serially diluted with Sample Diluent to produce samples within the dynamic range of the assay.

Scientific Data Images for Simple Plex Mouse/Rat VCAM-1/CD106 Cartridge

Simple Plex Mouse/Rat VCAM-1 Assay Standard Curve

Data shown represents typical performance results for Lower Limit of Quantitation (LLOQ) and Upper Limit of Quantitation (ULOQ) for Simple Plex Mouse/Rat VCAM-1 Assay. Assay range is 7.97-30,372 pg/mL.

Preparation and Storage

Shipping

The product is shipped with polar packs. Upon receipt, store it immediately at the temperature recommended below.

Stability & Storage

Store the unopened product at 2 - 8 °C. Do not use past expiration date.

Background: VCAM-1/CD106

VCAM-1 (Vascular Cell Adhesion Molecule-1; CD106) is a transmembrane molecule that mediates the adhesion of immune cells to the vascular endothelium during inflammation. It binds to several integrins including alpha4/beta1 (VLA-4), alpha4/beta7, alpha9/beta1, and alphaD/beta2. It is expressed constitutively in the bone marrow where it regulates T cell, B cell, and hematopoietic progenitor cell migration. A soluble form VCAM-1 can promote monocyte chemotaxis.
