Simple Plex Mouse ST2/IL-33R/IL-1R4 Cartridge

R&D Systems | Catalog # SPCKB-MP-009156

Simple Plex Mouse ST2 assay kit for use on Ella instrument. Contains cartridge, sample diluent SD09, and wash buffer.
R&D Systems

Customize This Cartridge

Simple Plex cartridges are custom built to fit your needs. Choose from over 350 assays spanning human, mouse, rat, and non-human primate. Just select your sample type, cartridge size (16, 32, or 72 samples), and up to 8 analytes per cartridge. Customize this cartridge.

Customize This Cartridge

Key Product Details

Assay Length

90 minutes

Sample Type & Volume Required Per Well*

Cell Culture Supernates (10 µL), Serum (5 µL), EDTA Plasma (5 µL), Heparin Plasma (5 µL)

Sensitivity

2.35 pg/mL

Assay Range

15.73-24000 pg/mL (Cell Culture Supernates, Serum, EDTA Plasma, Heparin Plasma)

Simple Plex Mouse ST2/IL-33R/IL-1R4 Cartridge Summary

Simple Plex assay for the detection of mouse ST2/IL-33R/IL-1R4 in cell culture supernatant (CCS), serum and plasma (EDTA/Heparin).

*The Sample Volume represented is based on the amount of sample incorporated into the reaction after taking into account the assay's minimum required dilution for a given matrix. Serial dilution may be necessary to achieve some of the final sample volumes represented.

View all ST2/IL-33R Simple Plex »

Compatible Instruments

Ella Automated Immunoassay System

Ella Automated Immunoassay System

Efficiently analyze biomarkers with Ella's advanced technology, providing accurate, precise results in under 90 minutes. Quantify up to 8 targets per assay through a streamlined automated workflow. Choose from >350 highly validated Simple Plex assays or Simple Plex discovery assays.
Learn More

Product Specifications

Assay Type

Automated sandwich ELISA

Format

Microfluidic cartridge containing three Glass Nano Reactors (GNR)

Species

Mouse

Specificity

Natural and recombinant mouse ST2.

Cross-reactivity

< 0.5% cross-reactivity observed with available related molecules. < 50% cross-species reactivity observed with species tested.

Interference

No significant interference observed with available related molecules.

Precision

Intra-Assay Precision (Precision within an assay) Each control was tested 16 times in one assay.

Inter-Assay Precision (Precision between assays) Replicates of each control were tested in multiple assays performed by at least three technicians using two lots of reagents.

Cell Culture Supernates, EDTA Plasma, Heparin Plasma, Serum

Intra-Assay Precision Inter-Assay Precision
Sample 1 2 1 2
n 16 16 36 40
Mean (pg/mL) 197 9544 186 9232
Standard Deviation 16.8 805 21.6 647
CV% 8.5 8.4 11.6 7.0

Recovery for Simple Plex Mouse ST2/IL-33R/IL-1R4 Cartridge

Recovery at three different spiked concentrations within the range of the assay was evaluated.

Sample Type Average % Recovery Range %
Cell Culture Media (n=2) 109 102-115

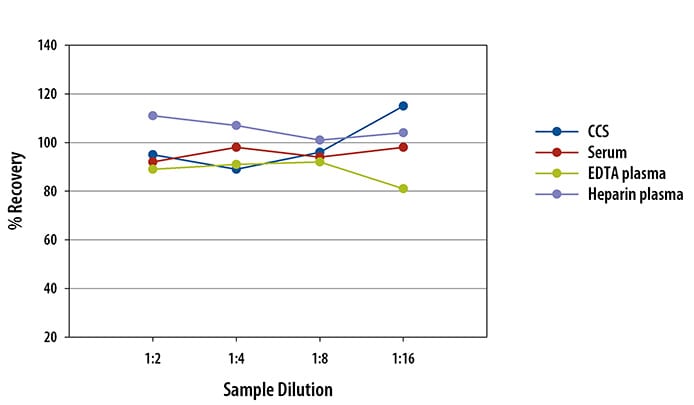

Linearity

Samples containing and/or spiked with high concentrations of mouse ST2 were serially diluted with Sample Diluent to produce samples within the dynamic range of the assay.

Scientific Data Images for Simple Plex Mouse ST2/IL-33R/IL-1R4 Cartridge

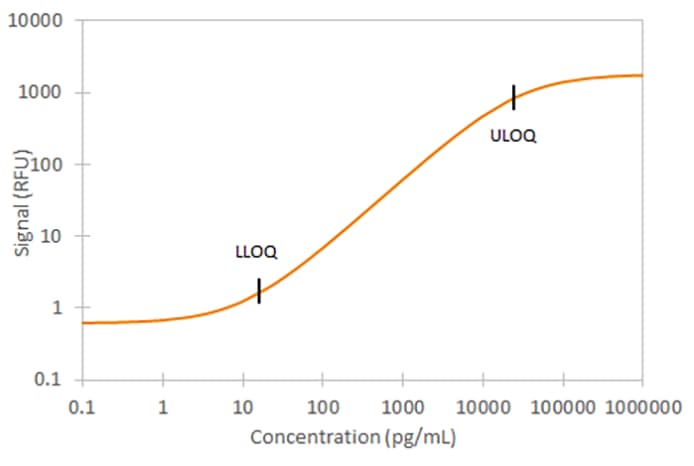

Mouse ST2 Ella Assay Standard Curve

Preparation and Storage

Shipping

The product is shipped with polar packs. Upon receipt, store it immediately at the temperature recommended below.

Stability & Storage

Store the unopened product at 2 - 8 °C. Do not use past expiration date.

Background: ST2/IL-33R

ST2, also known as IL-1R4, is a component of the receptor for the proinflammatory cytokine Interleukin-33. The IL-33 receptor additionally includes IL-1 RAcp which also associates with IL-1 RI and IL-1 R rp2/IL-1 R6. A soluble form of ST2 functions as a decoy receptor. IL-33 promotes Th2-biased immune responses, resulting in eosinophilia, mast cell activation, and allergic inflammation. In addition, IL-33 enhances inflammation-associated hypernociception and protects from atherosclerosis and cardiac myocyte hypertrophy. Soluble ST2 is elevated in the serum under inflammatory conditions including allergic asthma, sepsis, trauma, dengue fever, pulmonary disease, and lupus. It is also associated aortic stenosis, congestive cardiomyopathy, and risk of cardiovascular heart failure and death.

Long Name

Interleukin 33 Receptor

Alternate Names

DER4, Fit-1, IL-1 R4, IL-1R4, IL-1RL1, IL-33 R, IL-33R, IL1R4, IL33R, Ly84, ST2L, ST2V, T1

Entrez Gene IDs

9173 (Human); 17082 (Mouse)

Gene Symbol

IL1RL1

Additional ST2/IL-33R Products

Product Documents for Simple Plex Mouse ST2/IL-33R/IL-1R4 Cartridge

Loading product document information...

Loading product document information...

Certificate of Analysis

To download a Certificate of Analysis, please enter your Simple Plex catalog number and lot number in the search boxes below.

Product Specific Notices for Simple Plex Mouse ST2/IL-33R/IL-1R4 Cartridge

For research use only
