TIM-3 Antibody (F38-2E2) - BSA Free

Novus Biologicals | Catalog # NBP2-27220

Clone F38-2E2 was used by HLDA to establish CD designation.
Novus Biologicals

Key Product Details

Validated by

Biological Validation

Species Reactivity

Human

Applications

Flow Cytometry, Flow (Cell Surface)

Label

Unconjugated

Antibody Source

Monoclonal Mouse IgG1 kappa Clone # F38-2E2

Format

BSA Free
View all TIM-3 Primary Antibodies »

Product Specifications

Immunogen

This antibody was raised against recombinant human TIM-3. [Uniprot# Q8TDQ0]

Clonality

Monoclonal

Host

Mouse

Isotype

IgG1 kappa

Scientific Data Images for TIM-3 Antibody (F38-2E2) - BSA Free

Flow Cytometry: TIM-3 Antibody (F38-2E2) - BSA Free [NBP2-27220]

Flow Cytometry: TIM-3 Antibody (F38-2E2) - BSA Free [NBP2-27220]

Flow Cytometry: TIM-3 Antibody (F38-2E2) [NBP2-27220] - Cell surface staining of unstimulated (A) and Con A stimulated (B) human PBMCs with purified human TIM-3 antibody (Red) and mouse IgG1 isotype control (Green)and PE-conjugated secondary antibody this antibody was used for this test (cells were not fixed for testing).
Flow (Cell Surface): TIM-3 Antibody (F38-2E2) - BSA Free [NBP2-27220]

Flow (Cell Surface): TIM-3 Antibody (F38-2E2) - BSA Free [NBP2-27220]

Flow (Cell Surface): TIM-3 Antibody (F38-2E2) [NBP2-27220] - Analysis using the PE conjugate of NBP2-27220. Staining of Con A stimulated human PBMCs with PE-conjugated human TIM-3 antibody (Red) and mouse IgG1 isotype control (Green)was used for this test (cells were not fixed for testing).
Flow (Cell Surface): TIM-3 Antibody (F38-2E2) - BSA Free [NBP2-27220]

Flow (Cell Surface): TIM-3 Antibody (F38-2E2) - BSA Free [NBP2-27220]

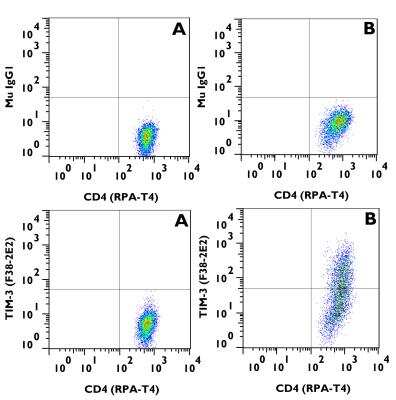

Flow (Cell Surface): TIM-3 Antibody (F38-2E2) [NBP2-27220] - hPBMC cells were either stimulated with Con A (panel B) or grown in normal media (panel A). A cell surface stain was performed with TIM-3 (F38-2E2) NBP2-27220 and Mouse IgG1 Kappa NBP2-27287. Cells were incubated with antibody for 20 minutes. A co-stain was also performed with CD4 (RPA-T4) NBP2-27216AF647.

Applications for TIM-3 Antibody (F38-2E2) - BSA Free

Application
Recommended Usage

Flow Cytometry

0.5-1ug/10^6cells

Flow Cytometry Panel Builder

Bio-Techne Knows Flow Cytometry

Save time and reduce costly mistakes by quickly finding compatible reagents using the Panel Builder Tool.

Advanced Features

  • Spectra Viewer - Custom analysis of spectra from multiple fluorochromes
  • Spillover Popups - Visualize the spectra of individual fluorochromes
  • Antigen Density Selector - Match fluorochrome brightness with antigen density
Build Your Panel Now
Flow Cytometry

Formulation, Preparation, and Storage

Purification

Protein G purified

Formulation

PBS

Format

BSA Free

Preservative

0.05% Sodium Azide

Concentration

1.0 mg/ml

Shipping

The product is shipped with polar packs. Upon receipt, store it immediately at the temperature recommended below.

Stability & Storage

Store at 4C short term. Aliquot and store at -20C long term. Avoid freeze-thaw cycles.

Background: TIM-3

T cell immunoglobulin and mucin-domain containing 3 (TIM-3) is a type I transmembrane protein that functions in suppressing immune cell responses and is considered a checkpoint receptor (1,2). TIM-3 is an inhibitory receptor that was first identified as a cell marker for interferon-gamma (IFN-gamma)-producing CD4+ T helper (Th1) and CD8+ T cytotoxic (Tc1) cells (1,2). TIM-3 is also expressed on other immune cell types: regulatory T cells (Treg), natural killer (NK) cells, macrophages, and dendritic cells (DCs), as well as leukemia stem cells (LSCs) (1-3). Human TIM-3 protein is 301 amino acids (aa) in length with a theoretical molecular weight (MW) of 33.4 kDa and shares ~63% aa sequence identity with mouse TIM-3 (2,4). The TIM-3 protein has an extracellular IgV domain, a mucin and stalk domain with O- and N-glycosylation sites, a transmembrane domain, and an intracellular tail with conserved tyrosine residues (2,3). Ligands for TIM-3 include soluble galectin-9, high-mobility group protein B1 (HMGB1), phosphatidylserine (PtdSer), and carcinoembyronic antigen-related cell adhesion molecule-1 (CEACAM-1) (1-3,5). Each of these ligands interact with different regions of the TIM-3 IgV domain. In the absence of ligand binding, the unphosphorylated intracellular tyrosine residues of TIM-3 are associated with HLA-B associated transcript 3 (Bat3), which recruits Lck and this Bat3-Lck complex preserves T cell signaling (1-3,5). When TIM-3 is engaged, an intracellular signaling cascade is initiated to inhibit immune cell activation. (1-3,5). Specifically, the tyrosine residues of TIM-3 are phosphorylated, Bat3 is released, and this results in suppression of immune responses (1-3, 5). Persistent, sustained TIM-3 signaling eventually results in T cell exhaustion (1-3,5).

Dysregulation of TIM-3 expression is associated with autoimmune diseases as shown by studies where inhibition of TIM-3 using blocking antibodies worsened disease progression in experimental autoimmune encephalomyelitis (EAE) models of multiple sclerosis (MS) (2,3,5). Conversely, high levels of TIM-3 have been shown during viral infection as well as in many cancer types where its increased expression may be an indicator of poor prognosis (2,3,5). TIM-3 has emerged as a potential cancer immunotherapy target as preclinical studies blocking TIM-3 results in increased anti-tumor immunity and prevents tumor growth (3,5). Studies have suggested combination therapy of TIM-3 blockade with blockade of other checkpoint inhibitors such as programmed death 1 (PD-1) or lymphocyte activation gene 3 (LAG-3) is more effective than TIM-3 blockade alone (3,5).

References

1. Acharya N, Sabatos-Peyton C, Anderson AC. Tim-3 finds its place in the cancer immunotherapy landscape. J Immunother Cancer. 2020; 8(1):e000911. https://doi.org/10.1136/jitc-2020-000911

2. Das M, Zhu C, Kuchroo VK. Tim-3 and its role in regulating anti-tumor immunity. Immunol Rev. 2017; 276(1):97-111. https://doi.org/10.1111/imr.12520

3. Joller N, Kuchroo VK. Tim-3, Lag-3, and TIGIT. Curr Top Microbiol Immunol. 2017; 410:127-156. https://doi.org/10.1007/82_2017_62

4. Uniprot (Q8TDQ0)

5. Wolf Y, Anderson AC, Kuchroo VK. TIM3 comes of age as an inhibitory receptor. Nat Rev Immunol. 2020; 20(3):173-185. https://doi.org/10.1038/s41577-019-0224-6

Long Name

T Cell Immunoglobulin Mucin-3

Alternate Names

CD366, HAVcr-2, HAVCR2, KIM-3, SPTCL, TIM3, TIMD3, anti human tim 3, anti human tim-3, anti-TIM 3, TIM 3 human, TIM-3 human

Entrez Gene IDs

84868 (Human)

Gene Symbol

HAVCR2

UniProt

Q8TDQ0
