Recombinant Human CD3 delta/CD3d Fc Avi-tag Protein, CF

R&D Systems | Catalog # AVI10280

Biotinylated
R&D Systems
100% Guarantee

Key Product Details

  • R&D Systems CHO-derived Recombinant Human CD3 delta/CD3d Fc Avi-tag Protein (AVI10280)
  • Quality control testing to verify active proteins with lot specific assays by in-house scientists
  • All R&D Systems proteins are covered with a 100% guarantee

Source

CHO

Accession Number

P04234.1

Structure / Form

Disulfide-linked homodimer, biotinylated via Avi-tag

Conjugate

Biotin

Applications

Bioactivity
View all CD3 delta/CD3d Proteins and Enzymes »

Product Specifications

Source

Chinese Hamster Ovary cell line, CHO-derived human CD3 delta/CD3d protein
Human CD3 delta/CD3d
(Phe22-Ala105)
Accession # P04234.1		 IEGRMD Human IgG1
(Pro100-Lys330)		 Avi-tag
N-terminus C-terminus

Purity

>95%, by SDS-PAGE visualized with Silver Staining and quantitative densitometry by Coomassie® Blue Staining.

Endotoxin Level

<0.10 EU per 1 μg of the protein by the LAL method.

N-terminal Sequence Analysis

Phe22

Predicted Molecular Mass

38 kDa

SDS-PAGE

54-61 kDa, under reducing conditions

Activity

The biotin to protein ratio is greater than 0.7 as determined by the HABA assay.

Measured by its binding ability in a functional ELISA.
When Recombinant Human CD3 epsilon Fc Chimera Protein (Catalog # 9850-CD) is immobilized at 10 μg/mL, 100 μL/well, the concentration of Biotinylated Recombinant Human CD3 delta/CD3d Fc Chimera Avi-tag (Catalog # AVI10280) that produces 50% of the optimal binding response is approximately 2.0-14 μg/mL.

Scientific Data Images for Recombinant Human CD3 delta/CD3d Fc Avi-tag Protein, CF

Biotinylated Recombinant Human CD3 delta/CD3d Fc Chimera Avi-tag Protein Binding Activity.

When Recombinant Human CD3 epsilon Fc Chimera Protein (9850-CD) is immobilized at 10 μg/mL, 100 μL/well, the concentration of Biotinylated Recombinant Human CD3 delta/CD3d Fc Chimera Avi-tag (Catalog # AVI10280) that produces 50% of the optimal binding response is approximately 2.0-14 μg/mL.

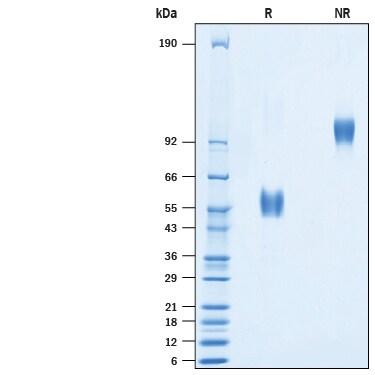

Biotinylated Recombinant Human CD3 delta/CD3d Fc Chimera Avi-tag SDS-PAGE.

2 μg/lane of Biotinylated Recombinant Human CD3 delta/CD3d Fc Chimera Avi-tag (Catalog # AVI10280) was resolved with SDS-PAGE under reducing (R) and non-reducing (NR) conditions and visualized by Coomassie® Blue staining, showing bands at 54-61 kDa and 108-122 kDa, respectively.

Formulation, Preparation, and Storage

AVI10280
Formulation Lyophilized from a 0.2 μm filtered solution in PBS with Trehalose.
Reconstitution Reconstitute at 500 μg/mL in PBS.
Shipping The product is shipped at ambient temperature. Upon receipt, store it immediately at the temperature recommended below.
Stability & Storage Use a manual defrost freezer and avoid repeated freeze-thaw cycles.
  • 12 months from date of receipt, -20 to -70 °C as supplied.
  • 1 month, 2 to 8 °C under sterile conditions after reconstitution.
  • 3 months, -20 to -70 °C under sterile conditions after reconstitution.

Calculators

The reconstitution calculator allows you to quickly calculate the volume of a reagent to reconstitute your vial. Simply enter the mass of reagent and the target concentration and the calculator will determine the rest.

=
÷

Background: CD3 delta/CD3d

CD3d, also known as CD3 delta and T3D, is a single-pass type I membrane protein. CD3 delta/CD3d is part of the T-cell receptor/CD3 complex (TCR/CD3 complex) and is involved in T-cell development and signal transduction (1). The encoded membrane protein represents the delta subunit of the CD3 complex, and along with four other CD3 subunits, binds either TCR alpha/beta or TCR gamma/delta to form the TCR/CD3 complex on the surface of T cells (2). CD3 delta/CD3d contains an 84 amino acid extracellular domain, a 21 amino acid transmembrane domain, and a 45 amino acid cytoplasmic domain. Human CD3 delta/CD3d shares 89%, 61%, and 57% sequence identity in its extracellular domain with its cynomolgus monkey, rat, and mouse homologs, respectively. CD3 delta/CD3d, like other subunit members CD3G and CD3E of the TCR-CD3 complex, contains an extracellular Ig domain and a single immunoreceptor tyrosine-based activation motif (3, 4). Defects in CD3 delta/CD3d cause severe combined immunodeficiency autosomal recessive T-cell-negative/B-cell-positive/NK-cell-positive (T-/B+/NK+ SCID) which is a genetically and clinically heterogeneous group of rare congenital disorders characterized by impairment of both humoral and cell-mediated immunity, leukopenia, and low or absent antibody levels (5, 6). Our Avi-tag Biotinylated human CD-3D Fc Chimera protein features biotinylation at a single site contained within the Avi-tag, a unique 15 amino acid peptide. Protein orientation will be uniform when bound to streptavidin-coated surface due to the precise control of biotinylation and the rest of the protein is unchanged so there is no interference in the protein's bioactivity.

References

  1. Gil, J. et al. (2011) J. Clin. Invest. 121:3872.
  2. Carson, G.R. et al. (1991) J. Biol. Chem. 266:7883.
  3. Birnbaum, M.E. et al. (2014). Proc. Natl. Acad. Sci. USA. 111:17576.
  4. Wucherpfennig, K. et al. (2010). Cold Spring Harb Perspect. Biol. 2:a005140.
  5. Kim, S.T. et al. (2010) J. Immunol. 185:2951.
  6. Holst, J. et al. (2008) Nat. Immunol. 9:658.

Long Name

CD3 delta

Alternate Names

CD3D

Entrez Gene IDs

915 (Human); 12500 (Mouse); 25710 (Rat); 102133701 (Cynomolgus Monkey)

Gene Symbol

CD3D

UniProt

P04234.1
