Key Product Details

Species Reactivity

Mouse

Applications

Agonist Activity

Label

CoraFluor 1

Antibody Source

Monoclonal Rat IgG2A Clone # 158321
View all 4-1BB/TNFRSF9/CD137 Primary Antibodies »

Product Specifications

Immunogen

Mouse myeloma cell line NS0-derived recombinant mouse 4-1BB
Val24-Leu187
Accession # P20334

Specificity

Detects mouse 4-1BB in direct ELISAs and Western blots. In direct ELISAs, this antibody shows no cross-reactivity with recombinant mouse (rm) BAFF R, rmCD27, rmCD30, rmCD40, rmDR3, rmEDAR, rmFas, rmGITR, rmLT beta R, rmNGF R, rmOPG, rmRANK, rmTAJ, rmTNF RI, rmTNF RII, rh4-1BB, rhDR6, or rhHVEM.

Clonality

Monoclonal

Host

Rat

Isotype

IgG2A

Description

CoraFluor(TM) 1 is a high performance terbium-based TR-FRET (Time-Resolved Fluorescence Resonance Energy Transfer) or TRF (Time-Resolved Fluorescence) donor for high throughput assay development. CoraFluor(TM) 1 absorbs UV light at approximately 340 nm, and emits at approximately 490 nm, 545 nm, 585 nm and 620 nm. It is compatible with common acceptor dyes that absorb at the emission wavelengths of CoraFluor(TM) 1. CoraFluor(TM) 1 can be used for the development of robust and scalable TR-FRET binding assays such as target engagement, ternary complex, protein-protein interaction and protein quantification assays.

CoraFluor(TM) 1, amine reactive

CoraFluor(TM) 1, thiol reactive

For more information, please see our CoraFluor(TM) TR-FRET technology flyer.

Scientific Data Images for 4-1BB/TNFRSF9/CD137 Antibody (158321) [CoraFluor™ 1]

4-1BB/TNFRSF9/CD137 Antibody (158321) [CoraFluor™ 1]

Product Feature: CoraFluor Probes for TR-FRET

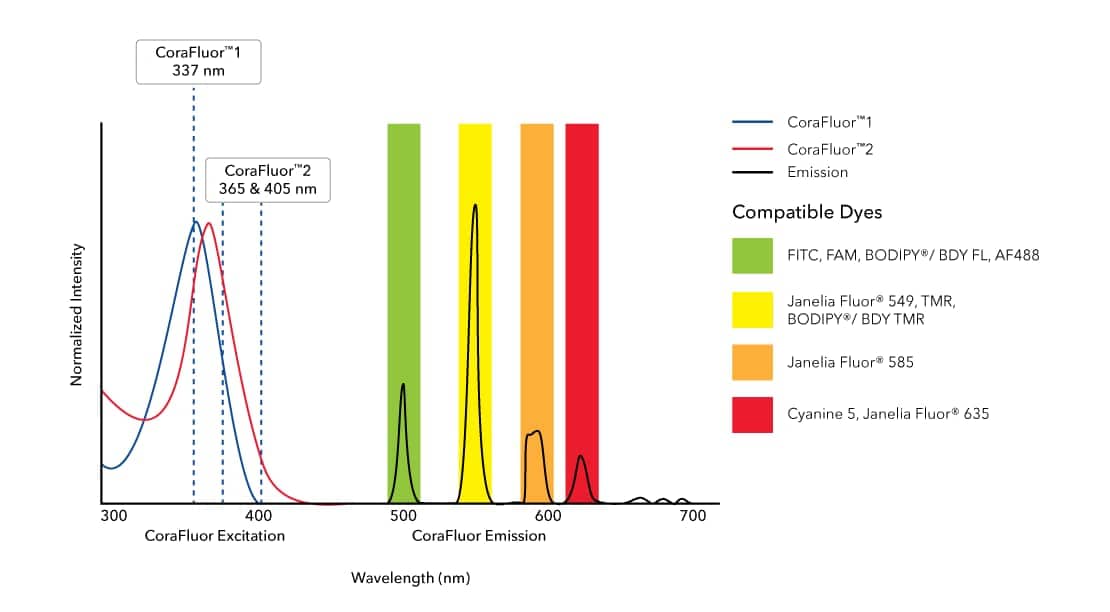

CoraFluor™ 1, amine reactive (Catalog:7920) and CoraFluor™ 2, amine reactive (Catalog # 7950) are terbium-based probes that have been developed for use as TR-FRET donors. They emit wavelengths compatible with commonly used fluorescent acceptor dyes such as BODIPY® (or BDY) and Janelia Fluor® dyes, FITC (Catalog # 5440), TMR and Cyanine 5 (Catalog # 5436). CoraFluor™ fluorescence is brighter and more stable in biological media than existing TR-FRET donors, leading to enhanced sensitivity and improved data generation. CoraFluor™ 1 exhibits excitation upon exposure to a 337 nm UV laser.

Applications for 4-1BB/TNFRSF9/CD137 Antibody (158321) [CoraFluor™ 1]

Application
Recommended Usage

Agonist Activity

Optimal dilutions of this antibody should be experimentally determined.
Application Notes
Optimal dilution of this antibody should be experimentally determined.

Formulation, Preparation, and Storage

Purification

Protein A or G purified from hybridoma culture supernatant

Formulation

PBS

Preservative

No Preservative

Concentration

Please see the vial label for concentration. If unlisted please contact technical services.

Shipping

The product is shipped with polar packs. Upon receipt, store it immediately at the temperature recommended below.

Stability & Storage

Store at 4C in the dark. Do not freeze.

Background: 4-1BB/TNFRSF9/CD137

4-1BB, also called CD137 and tumor necrosis factor receptor superfamily member 9 (TNFRSF9), is a type I surface glycoprotein expressed on activated T cell and natural killer (NK) cells (1,2). Human 4-1BB protein is 255 amino acids (aa) in length with a theoretical molecular weight of 28 kDa. It contains an extracellular domain, a helical transmembrane domain, and a cytoplasmic/intracellular domain (3). 4-1BB/TNFRSF9/CD137 is a costimulatory receptor that binds the ligand 4-1BBL/CD137L which is primarily expressed on antigen presenting cells (APCs) such as dendritic cells (DCs), macrophages, and B cells (1,2,4,5). The 4-1BB receptor-ligand interaction results in recruitment of TNFR-associated factor (TRAF) family adaptor proteins to 4-1BB's cytoplasmic domain (1,2,4,5). TRAF1, TRAF2, and TRAF3 are found in various homodimer and/or heterodimer configurations. Their recruitment to 4-1BB/CD137 initiates signalosome formation as well as activation of the nuclear factor-kappa B (NF-kappaB) and mitogen-activated protein kinase (MAPK) signaling cascade (1,4,5). 4-1BB/TNFRSF9/CD137 stimulation leads to increased cellular cytotoxic activity and pro-inflammatory cytokine production (1,2,4). Given its role in immune cell activation, 4-1BB has become a promising target for cancer immunotherapy (1,2,4). Current approaches to target 4-1BB include agonistic monoclonal and bispecific anti-4-1BB antibodies and well as utilizing the cytoplasmic domain of 4-1BB in generating chimeric antigen receptors (CARs) (1,2,4). 4-1BB agonists in clinical trials include Urelumab and Utolimumab. Utolimumab also has ligand blocking properties whereas Urelumab does not (1,2,4). Anti-4-1BB monoclonal antibodies are being tested as monotherapy as well as combination therapy with either other immunostimulatory monoclonal antibodies or with checkpoint blockade antibodies like anti-PD-1 (1,2,4).

References

1. Etxeberria, I., Glez-Vaz, J., Teijeira, A., & Melero, I. (2020). New emerging targets in cancer immunotherapy: CD137/4-1BB costimulatory axis. ESMO open, 4(Suppl 3), e000733. https://doi.org/10.1136/esmoopen-2020-000733

2. Chester, C., Sanmamed, M. F., Wang, J., & Melero, I. (2018). Immunotherapy targeting 4-1BB: mechanistic rationale, clinical results, and future strategies. Blood, 131(1), 49-57. https://doi.org/10.1182/blood-2017-06-741041

3. Uniport (Q07011)

4. Chester, C., Ambulkar, S., & Kohrt, H. E. (2016). 4-1BB agonism: adding the accelerator to cancer immunotherapy. Cancer Immunology, Immunotherapy: CII, 65(10), 1243-1248. https://doi.org/10.1007/s00262-016-1829-2

5. Zapata, J. M., Perez-Chacon, G., Carr-Baena, P., Martinez-Forero, I., Azpilikueta, A., Otano, I., & Melero, I. (2018). CD137 (4-1BB) signalosome: complexity is a matter of TRAFs. Frontiers in Immunology, 9, 2618. https://doi.org/10.3389/fimmu.2018.02618

Alternate Names

41BB, CD137, ILA, TNFRSF9

Gene Symbol

TNFRSF9

Additional 4-1BB/TNFRSF9/CD137 Products

Product Documents for 4-1BB/TNFRSF9/CD137 Antibody (158321) [CoraFluor™ 1]

Certificate of Analysis

To download a Certificate of Analysis, please enter a lot or batch number in the search box below.

Download SDS

Product Specific Notices for 4-1BB/TNFRSF9/CD137 Antibody (158321) [CoraFluor™ 1]

CoraFluor (TM) is a trademark of Bio-Techne Corp. Sold for research purposes only under agreement from Massachusetts General Hospital. US patent 2022/0025254

This product is for research use only and is not approved for use in humans or in clinical diagnosis. Primary Antibodies are guaranteed for 1 year from date of receipt.
