Mouse 4-1BB/TNFRSF9/CD137 Antibody Summary

Species Reactivity
Detects mouse 4-1BB in direct ELISAs and Western blots. In direct ELISAs, this antibody shows no cross-reactivity with recombinant mouse (rm) BAFF R, rmCD27, rmCD30, rmCD40, rmDR3, rmEDAR, rmFas, rmGITR, rmLT beta R, rmNGF R, rmOPG, rmRANK, rmTAJ, rmTNF RI, rmTNF RII, rh4-1BB, rhDR6, or rhHVEM.
Monoclonal Rat IgG2A Clone # 158321
Protein A or G purified from hybridoma culture supernatant
Mouse myeloma cell line NS0-derived recombinant mouse 4-1BB
Accession # P20334
Lyophilized from a 0.2 μm filtered solution in PBS with Trehalose. *Small pack size (SP) is supplied either lyophilized or as a 0.2 µm filtered solution in PBS.
Endotoxin Level
<0.10 EU per 1 μg of the antibody by the LAL method.


Recommended Concentration
Agonist Activity
Measured by its ability to co-stimulate IFN-gamma secretion by mouse splenic T cells in the presence of anti-CD3 [Saoulli, K. et al. (1998) J. Exp. Med. 187(11):1849; Cannons, J. et al. (2001) J. Immunol. 167:1313.].
The ED50 for this effect is typically 0.4 - 1.2 μg/mL.

Please Note: Optimal dilutions should be determined by each laboratory for each application. General Protocols are available in the Technical Information section on our website.

Reconstitution Calculator

Reconstitution Calculator

The reconstitution calculator allows you to quickly calculate the volume of a reagent to reconstitute your vial. Simply enter the mass of reagent and the target concentration and the calculator will determine the rest.


Preparation and Storage

Reconstitute at 0.5 mg/mL in sterile PBS.
Reconstitution Buffer Available
Reconstitution Buffer 1 (PBS)
Catalog #
Size / Price
The product is shipped at ambient temperature. Upon receipt, store it immediately at the temperature recommended below. *Small pack size (SP) is shipped with polar packs. Upon receipt, store it immediately at -20 to -70 °C
Stability & Storage
Use a manual defrost freezer and avoid repeated freeze-thaw cycles.
  • 12 months from date of receipt, -20 to -70 °C as supplied.
  • 1 month, 2 to 8 °C under sterile conditions after reconstitution.
  • 6 months, -20 to -70 °C under sterile conditions after reconstitution.

Background: 4-1BB/TNFRSF9/CD137

4-1BB is a type I transmembrane protein belonging to the TNF receptor superfamily. It has been designated TNFRSF9 and is also known as CD137. 4-1BB is expressed on T cells, NK cells, monocytes, neutrophils, dendritic cells, and eosinophils. The ligand for 4-1BB, 4-1BBL, is a TNF ligand superfamily member (TNFSF9) expressed on the surfaces of activated antigen presenting cells and T and B lymphoma cell lines. 4-1BB transduces a T cell costimulatory signal to promote survival, proliferation, cytokine production, and effector function. On dendritic cells, 4-1BB ligation enhances cytokine production and upregulates expression of B7-1 and B7-2 costimulatory molecules.

Entrez Gene IDs
3604 (Human); 21942 (Mouse); 500590 (Rat); 102127961 (Cynomolgus Monkey)
Alternate Names
4-1BB ligand receptor; 41BB; 4-1BB; CD137 antigen; CD137; CD137MGC2172; CDw137; FLJ43501; ILA; ILAhomolog of mouse 4-1BB; induced by lymphocyte activation (ILA); interleukin-activated receptor, homolog of mouse Ly63; receptor protein 4-1BB; T cell antigen ILA; T-cell antigen 4-1BB homolog; T-cell antigen ILA; TNFRSF9; tumor necrosis factor receptor superfamily member 9; tumor necrosis factor receptor superfamily, member 9

Product Datasheets

You must select a language.


Citations for Mouse 4-1BB/TNFRSF9/CD137 Antibody

R&D Systems personnel manually curate a database that contains references using R&D Systems products. The data collected includes not only links to publications in PubMed, but also provides information about sample types, species, and experimental conditions.

4 Citations: Showing 1 - 4
Filter your results:

Filter by:

  1. Integrin &alphav&beta8 on T�cells suppresses anti-tumor immunity in multiple models and is a promising target for tumor immunotherapy
    Authors: E Dodagatta-, HY Ma, B Liang, J Li, DS Meyer, SY Chen, KH Sun, X Ren, B Zivak, MD Rosenblum, MB Headley, L Pinzas, NI Reed, JS Del Cid, BC Hann, S Yang, A Giddabasap, K Noorbehesh, B Yang, J Dal Porto, T Tsukui, K Niessen, A Atakilit, RJ Akhurst, D Sheppard
    Cell Reports, 2021;36(1):109309.
    Species: Mouse
    Sample Types: In Vivo
    Applications: In Vivo
  2. Epitope and Fc-mediated Crosslinking, but not High Affinity, Are Critical for Antitumor Activity of CD137 Agonist Antibody with Reduced Liver Toxicity
    Authors: SK Ho, Z Xu, A Thakur, M Fox, SS Tan, E DiGiammari, L Zhou, M Sho, B Cairns, V Zhao, M Xiong, J Samayoa, CM Forsyth, DB Powers, DT Chao, D Hollenbaug, HM Alvarez, Y Akamatsu
    Mol. Cancer Ther., 2020;0(0):.
    Species: Mouse
    Sample Types: Whole Cells
    Applications: Agonist Activity
  3. Combined triggering of dendritic cell receptors results in synergistic activation and potent cytotoxic immunity.
    Authors: Wells JW, Cowled CJ, Farzaneh F
    J. Immunol., 2008;181(5):3422-31.
    Species: Mouse
    Sample Types: In Vivo
    Applications: Neutralization
  4. Excreted urinary mediators in an animal model of experimental immune nephritis with potential pathogenic significance.
    Authors: Wu T, Xie C, Bhaskarabhatla M, Yan M, Leone A, Chen SS, Zhou XJ, Putterman C, Mohan C
    Arthritis Rheum., 2007;56(3):949-59.
    Species: Mouse
    Sample Types: In Vivo
    Applications: Control


No product specific FAQs exist for this product, however you may

View all Antibody FAQs

Isotype Controls

Reconstitution Buffers

Secondary Antibodies

Reviews for Mouse 4-1BB/TNFRSF9/CD137 Antibody

Average Rating: 5 (Based on 2 Reviews)

5 Star
4 Star
3 Star
2 Star
1 Star

Have you used Mouse 4-1BB/TNFRSF9/CD137 Antibody?

Submit a review and receive an Amazon gift card.

$25/€18/£15/$25CAN/¥75 Yuan/¥1250 Yen for a review with an image

$10/€7/£6/$10 CAD/¥70 Yuan/¥1110 Yen for a review without an image

Submit a Review

Filter by:

Mouse 4-1BB/TNFRSF9/CD137 Antibody
By Anonymous on 04/10/2019

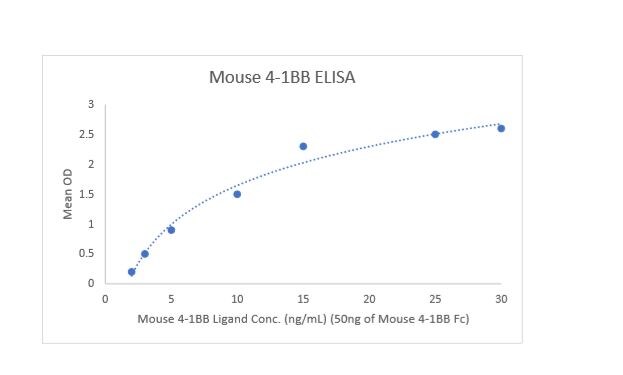

Application: ELISA Sample Tested: M41BB antigen Species: Mouse

Mouse 4-1BB/TNFRSF9/CD137 Antibody
By Anonymous on 12/16/2018

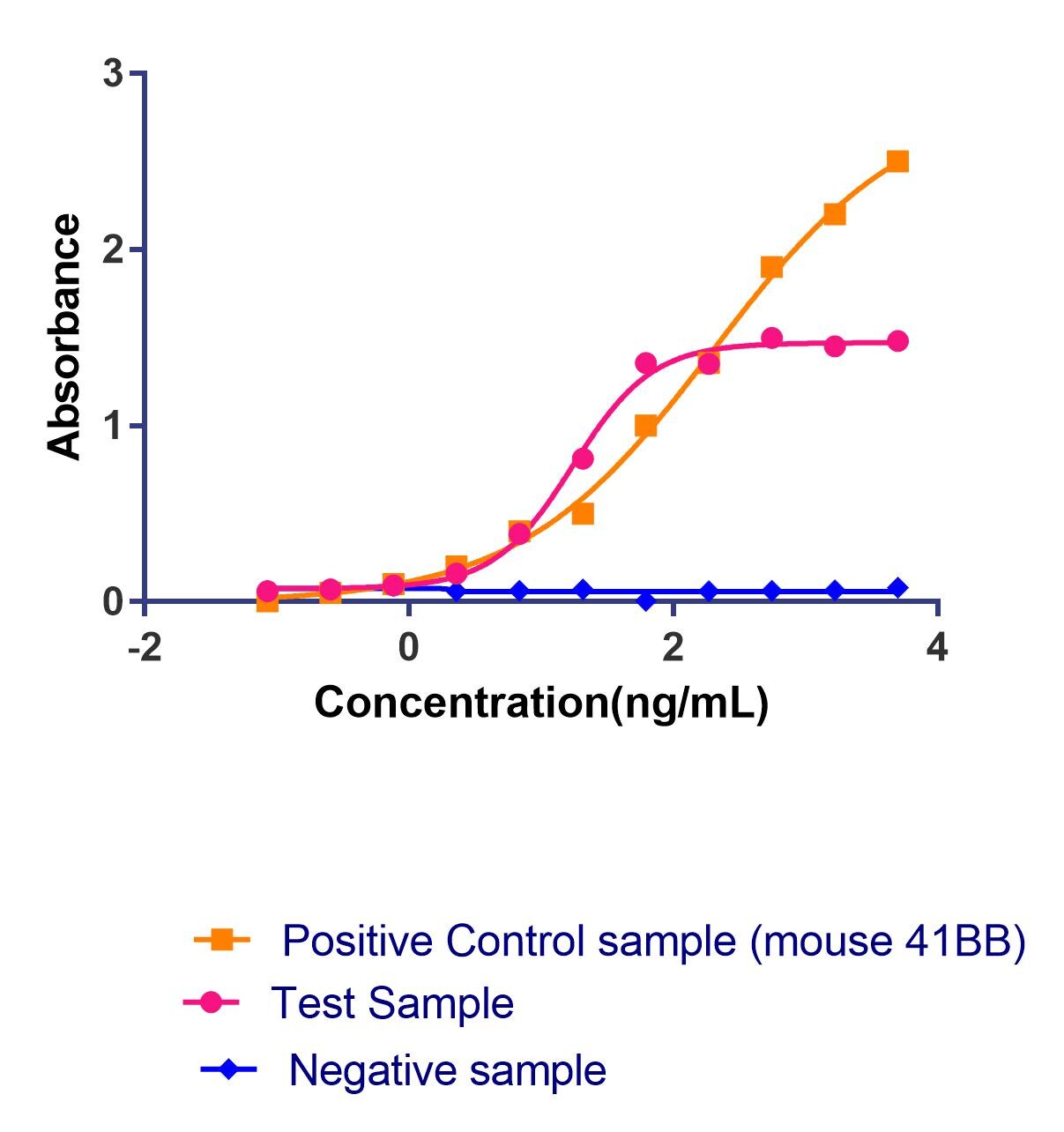

Application: ELISA Sample Tested: Commercial Antigen Species: Mouse
