ATG4C Antibody (JE59-99)

Western Blot: ATG4C Antibody (JE59-99) [NBP3-32059]

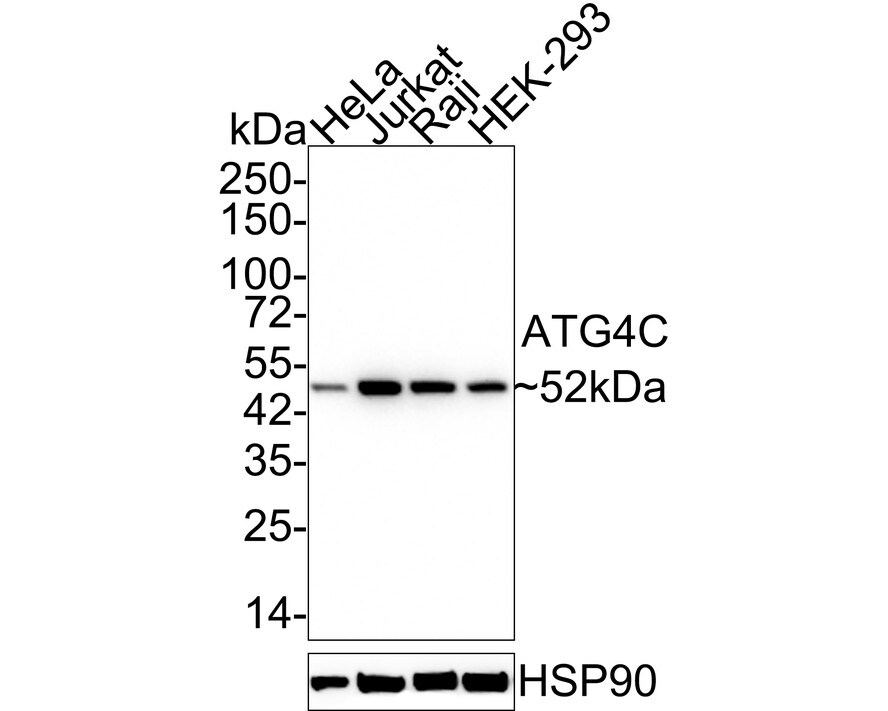

Western Blot: ATG4C Antibody (JE59-99) [NBP3-32059] - Western blot analysis of ATG4C on different lysates with Rabbit anti-ATG4C antibody (NBP3-32059) at 1/1,000 dilution.

Lane 1: HeLa cell lysate
Lane 2: Jurkat cell lysate
Lane 3: Raji cell lysate
Lane 4: HEK-293 cell lysate

Lysates/proteins at 20 ug/Lane.

Predicted band size: 52 kDa
Observed band size: 52 kDa

Exposure time: 5 minutes;

4-20% SDS-PAGE gel.

Proteins were transferred to a PVDF membrane and blocked with 5% NFDM/TBST for 1 hour at room temperature. The primary antibody (NBP3-32059) at 1/1,000 dilution was used in 5% NFDM/TBST at 4C overnight. Goat Anti-Rabbit IgG - HRP Secondary Antibody at 1/50,000 dilution was used for 1 hour at room temperature.

Immunohistochemistry: ATG4C Antibody (JE59-99) [NBP3-32059]

Immunohistochemistry: ATG4C Antibody (JE59-99) [NBP3-32059] - Immunohistochemical analysis of paraffin-embedded human testis tissue with Rabbit anti-ATG4C antibody (NBP3-32059) at 1/1,000 dilution.

The section was pre-treated using heat mediated antigen retrieval with Tris-EDTA buffer (pH 9.0) for 20 minutes. The tissues were blocked in 1% BSA for 20 minutes at room temperature, washed with ddH2O and PBS, and then probed with the primary antibody (NBP3-32059) at 1/1,000 dilution for 1 hour at room temperature. The detection was performed using an HRP conjugated compact polymer system. DAB was used as the chromogen. Tissues were counterstained with hematoxylin and mounted with DPX.

Immunocytochemistry/ Immunofluorescence: ATG4C Antibody (JE59-99) [NBP3-32059]

Immunocytochemistry/ Immunofluorescence: ATG4C Antibody (JE59-99) [NBP3-32059] - Immunocytochemistry analysis of Jurkat cells labeling ATG4C with Rabbit anti-ATG4C antibody (NBP3-32059) at 1/100 dilution.

Cells were fixed in 4% paraformaldehyde for 20 minutes at room temperature, permeabilized with 0.1% Triton X-100 in PBS for 5 minutes at room temperature, then blocked with 1% BSA in 10% negative goat serum for 1 hour at room temperature. Cells were then incubated with Rabbit anti-ATG4C antibody (NBP3-32059) at 1/100 dilution in 1% BSA in PBST overnight at 4 ℃. Goat Anti-Rabbit IgG H&L (iFluor™ 488) was used as the secondary antibody at 1/1,000 dilution. PBS instead of the primary antibody was used as the secondary antibody only control. Nuclear DNA was labelled in blue with DAPI.
