BMP-2 Quantikine ELISA Kit

Catalog # Availability Size / Price Qty
PDBP200
SBP200
DBP200
Control Products Available
Human/Mouse/Rat BMP-2 ELISA Standard Curve
2 Images
Product Details
Procedure
Citations (40)
FAQs
Supplemental Products
Reviews (7)

BMP-2 Quantikine ELISA Kit Summary

Assay Type
Solid Phase Sandwich ELISA
Format
96-well strip plate
Assay Length
4.5 hours
Sample Type & Volume Required Per Well
Cell Culture Supernates (50 uL), Bone Extracts (50 uL)
Sensitivity
29 pg/mL
Assay Range
62.5 - 4,000 pg/mL (Cell Culture Supernates, Bone Extracts)
Specificity
Natural and mammalian-expressed recombinant human BMP-2.  This assay does not recognize E. coli-expressed BMP-2.
Cross-reactivity
Cross-reactivity observed with 1 or more available related molecules.< 50% cross-species reactivity observed with species tested.
Interference
Interference observed with 1 or more available related molecules.

Product Summary

The Quantikine Human BMP-2 Immunoassay is a 4.5 hour solid-phase ELISA designed to measure human BMP-2 in bone tissue extracts and cell culture supernates. It contains CHO cell-expressed recombinant human BMP-2 and has been shown to accurately quantitate the recombinant factor. Results obtained using natural mouse BMP-2 showed linear curves that were parallel to the standard curves obtained using the Quantikine kit standards. These results indicate that this kit can be used to determine relative mass values for naturally occurring human BMP-2.

Precision

Intra-Assay Precision (Precision within an assay) Three samples of known concentration were tested on one plate to assess intra-assay precision
Inter-Assay Precision (Precision between assays) Three samples of known concentration were tested in separate assays to assess inter-assay precision

Cell Culture Supernates, Bone Extracts

Intra-Assay Precision Inter-Assay Precision
Sample 1 2 3 1 2 3
n 20 20 20 40 40 40
Mean 323 1010 2313 344 1043 2213
Standard Deviation 8.3 28.3 56 25.2 55.4 140.2
CV% 2.6 2.8 2.4 7.3 5.3 6.3

Recovery

The recovery of recombinant human BMP-2 spiked to levels throughout the range of the assay in various matrices was evaluated.

Sample Type Average % Recovery Range %
2 M Guanidine-HCI (n=1) 98 94-101
2 M Urea (n=1) 101 92-106
Cell Culture Media (n=4) 102 94-110

Linearity

The following samples were spiked with rhBMP-2 and then diluted with Calibrator Diluent. The samples were then serially diluted and tested to assess the linearity of the assay.

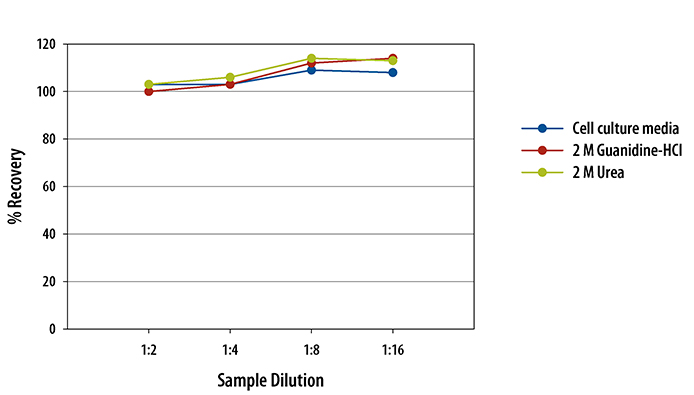

Human/Mouse/Rat BMP-2 ELISA Linearity

Data Examples

Human/Mouse/Rat BMP-2 ELISA Standard Curve

Product Datasheets

Preparation and Storage

Shipping
The product is shipped at ambient temperature. Upon receipt, store it immediately at the temperature recommended below.
Storage
Store the unopened product at 2 - 8 °C. Do not use past expiration date.

Background: BMP-2

BMPs are secreted signaling molecules that comprise a subfamily of the TGF-beta superfamily and were originally identified as regulators of cartilage and bone formation. There are at least 20 structurally and functionally related BMPs, most of which play roles in embryogenesis and morphogenesis of various tissues and organs. Biologically active BMPs are usually homodimers containing a characteristic cysteine knot structure. Heterodimers, BMP-2/BMP-7 and BMP-4/BMP-7 have also been suggested to exist and function in vivo. They are more potent inducers of bone formation than their respective homodimers. In addition, heterodimers, but not homodimers, are ventral mesoderm inducers. Heterodimer activity may be mediated by a different or additional receptor subtype.

Decapentaplegic (Dpp) is one of at least five TGF-beta superfamily ligands identified in the Drosophila genome. Dpp, a functional ortholog of mammalian BMP-2 and BMP-4, is a morphogen and plays an essential role in Drosophila development. Dpp regulates embryonic dorsal-ventral polarity and is required for gut morphogenesis and outgrowth and patterning of imaginal disks.

Long Name:
Bone Morphogenetic Protein 2
Entrez Gene IDs:
650 (Human); 12156 (Mouse); 29373 (Rat)
Alternate Names:
BDA2; BMP2; BMP-2; BMP-2A; BMP2ABone morphogenetic protein 2A; bone morphogenetic protein 2; SSFSC
⚠ WARNING: This product can expose you to chemicals including N,N-Dimethylforamide, which is known to the State of California to cause cancer. For more information, go to www.P65Warnings.ca.gov.

Assay Procedure

Refer to the product for complete assay procedure.

Bring all reagents and samples to room temperature before use. It is recommended that all samples, standards, and controls be assayed in duplicate.
  1.   Prepare all reagents, standard dilutions, and samples as directed in the product insert.
  2.   Remove excess microplate strips from the plate frame, return them to the foil pouch containing the desiccant pack, and reseal.

  3. 100 µL Assay Diluent
  4.   Add 100 µL of Assay Diluent to each well.

  5. 50 µL Standard, Control, or Sample
  6.   Add 50 µL of Standard, control, or sample to each well. Cover with a plate sealer, and incubate at room temperature for 2 hours on a horizontal orbital microplate shaker.
  7.   Aspirate each well and wash, repeating the process 3 times for a total of 4 washes.

  8. 200 µL Conjugate
  9.   Add 200 µL of Conjugate to each well. Cover with a new plate sealer, and incubate at room temperature for 2 hours on the shaker.
  10.   Aspirate and wash 4 times.

  11. 200 µL Substrate Solution
  12.   Add 200 µL Substrate Solution to each well. Incubate at room temperature for 30 minutes on the benchtop. PROTECT FROM LIGHT.

  13. 50 µL Stop Solution
  14.   Add 50 µL of Stop Solution to each well. Read at 450 nm within 30 minutes. Set wavelength correction to 540 nm or 570 nm.
