Kit Summary

For the differentiation of Th2 cells from a preparation of CD4+ T cells isolated from mouse splenocytes.

Key Benefits

  • Provides optimized reagents needed to induce Th2 differentiation
  • Yields ~80 x 106 CD4+ T cells, of which > 40% are Th2 polarized
  • Contains high quality bioactive proteins
  • Includes straightforward procedures
  • Does not require specialized instrumentation




Why Expand and Differentiate Th2 Cells Ex Vivo?

T helper type 2 (Th2) cells are a lineage of CD4+ effector T cells that provide host protection against intestinal parasites and extracellular bacteria. In addition, they provide support for B cell-dependent humoral responses. Pathological Th2 cell activity is a hallmark of allergic inflammation and asthma. Differentiation of CD4+ effector cells into the Th2 lineage is promoted by cytokines such as IL-4 in combination with either IL-2, IL-7, or TSLP. Th2 cells secrete IL-4, IL-5, IL-9, IL-13, and IL-17E/IL-25. In vitro differentiation of mouse Th2 cells from the larger naïve CD4+ T cell population provides increased numbers of Th2 cells to facilitate downstream research. The CellXVivo Mouse Th2 Cell Differentiation Kit contains all necessary components to differentiate mouse naïve CD4+ T cells into Th2 polarized cells.



Kit Contents

This kit contains the following reagents for the ex vivo differentiation of mouse Th2 cells.

  • Hamster Anti-Mouse CD3, Th2
  • Rat Anti-Mouse CD28, Th2
  • Mouse Th2 Reagent 1
  • Mouse Th2 Reagent 2
  • Mouse Th2 Reagent 3
  • Reconstitution Buffer 1
  • Reconstitution Buffer 2
  • 20X Wash Buffer

The quantity of the components in the kit is sufficient to differentiate approximately 4 x 106 naïve CD4+ T cells, and generate 80 x 106 T cells, of which >40% are IL-4+ Th2 polarized cells.

Note: Results may vary due to strain, age, and/or the health of the mice used for isolation.

Stability and Storage

Store the unopened kit at ≤-20 °C. Do not use past the kit expiration date.

Limitations

  • FOR LABORATORY RESEARCH USE ONLY. NOT FOR USE IN DIAGNOSTIC PROCEDURES.
  • The safety and efficacy of this product in diagnostic or other clinical uses has not been established.
  • This reagent should not be used beyond the expiration date indicated on the label.
  • Results may vary due to variations among cells derived from different donors.



Data Examples
Intracellular Cytokine Staining of Differentiated Mouse Th2 Cells
View Larger Image

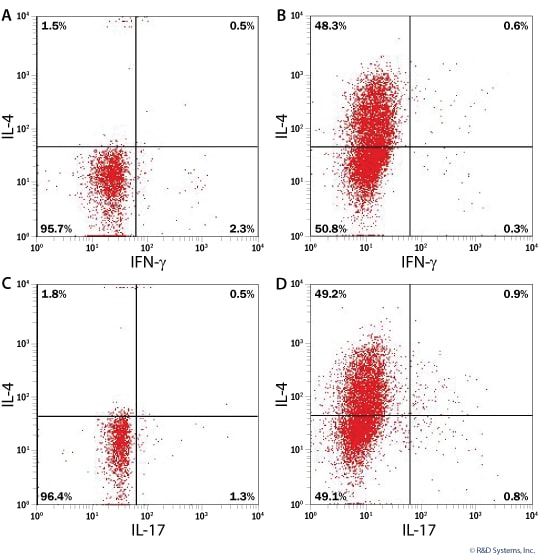

Intracellular Cytokine Staining of Differentiated Mouse Th2 Cells. Flow cytometry data of mouse naïve CD4+ T cells (A, C) and differentiated Th2 cells (B, D) generated using reagents included in this kit. After 6 days of differentiation, naïve CD4+ cells or differentiated Th2 cells were stimulated with Cell Activation Cocktail (Tocris®, Catalog # 5476) and stained with conjugated Anti-Mouse IL-4 (Clone 11B11), Anti-Mouse IFN-gamma (Catalog # IC485P), and Anti-Mouse IL-17A (Novus Biologicals®, Catalog # NBP1-72027) Monoclonal Antibodies. Quadrants were set based on isotype-stained controls.

Th2-differentiated Mouse CD4+ Cells Secrete High Levels of IL-4
View Larger Image

Th2-differentiated Mouse CD4+ Cells Secrete High Levels of IL-4. Mouse naïve CD4+ T cells were differentiated for 6 days using the reagents included in this kit. On day 6 of differentiation cells were harvested and stimulated with Anti-Mouse CD3 and Anti-Mouse CD28 overnight. Cell culture supernatant was collected and cytokine secretion determined using the Mouse IL-4 Quantikine® ELISA Kit (Catalog # M4000B), the Mouse IFN-gamma Quantikine® ELISA Kit (Catalog # MIF00), and the Mouse IL-17 Quantikine® ELISA Kit (Catalog # M1700).

Preparation and Storage
  • Stability & Storage
    Store the unopened product at -20 to -70 °C. Use a manual defrost freezer and avoid repeated freeze-thaw cycles. Do not use past expiration date.
Related Research Areas
Assay Procedure

Refer to the product datasheet for complete product details.

Briefly, CD4+ T cells isolated from mouse splenocytes are differentiated ex vivo into the Th2 phenotype with reagents provided in this kit and using the following procedure:

  • Isolate CD4+ T cells from mouse splenocytes
  • Culture CD4+ T cells in reagents provided in kit
  • Verify Th2 cell expansion after 6 days in culture




Reagents Provided

Reagents Supplied in the CellXVivo Mouse Th2 Cell Differentiation Kit (Catalog # CDK019):

  • Hamster Anti-Mouse CD3, Th2
  • Rat Anti-Mouse CD28, Th2
  • Mouse Th2 Reagent 1
  • Mouse Th2 Reagent 2
  • Mouse Th2 Reagent 3
  • Reconstitution Buffer 1
  • Reconstitution Buffer 2
  • 20X Wash Buffer



Other Supplies Required

Reagents

  • Laboratory mice
  • X-VIVO™ 15 Chemically Defined, Serum-free Hematopoietic Cell Medium (Lonza, or equivalent)
  • MagCellect Mouse Naïve CD4+ T Cell Isolation Kit (R&D Systems, Catalog # MAGM205, or equivalent)
  • Penicillin/Streptomycin (optional)
  • Cell Activation Cocktail 500X (Tocris®, Catalog # 5476)

Equipment

  • Tissue culture plates and/or flasks
  • Sterile deionized water
  • Pipettes and pipette tips
  • Inverted microscope
  • Hemocytometer
  • 37 °C, 5% CO2 incubator
  • Centrifuge



Procedure Overview

Protocol for mouse Th2 cell differentiation using the CellXVivo Mouse Th2 Cell Differentiation Kit.

Note: Results may vary due to strain, age, and/or the health of the mice used for isolation.

Coat the desired tissue culture plate with Hamster Anti-Mouse CD3 antibody.

Coat the desired tissue culture plate or flask

Isolate mouse splenocytes.

Isolate mouse splenocytes

Isolate mouse naïve CD4+ T cells from splenocytes (e.g., using magnetic cell selection).

Perform a cell count

Perform a cell count.

Perform a cell count

Suspend 1 x 106 naïve CD4+ T cells/mL in Mouse Th2 Differentiation Media. Culture the cells on plates pre-coated with Hamster Anti-Mouse CD3 antibody.

Suspend cells in media

Harvest cells on day 3.

Dilute cells 1:20 with fresh Mouse Th2 Differentiation Media.

Culture cells in a new flask for an additional 3 days.

Harvest cells on Day 3

Verify Th2 cell differentiation by analyzing cytokine expression via flow cytometry or ELISA (optional).

Verify Th2 cell differentiation
