CRMP2 Antibody (JE31-53)

Western Blot: CRMP2 Antibody (JE31-53) [NBP3-32224]

Western Blot: CRMP2 Antibody (JE31-53) [NBP3-32224] - Western blot analysis of CRMP2 on different lysates with Rabbit anti-CRMP2 antibody (NBP3-32224) at 1/1,000 dilution.

Lane 1: U-87 MG cell lysate (20 ug/Lane)
Lane 2: SH-SY5Y cell lysate (10 ug/Lane)
Lane 3: Neuro-2a cell lysate (15 ug/Lane)
Lane 4: PC-12 cell lysate (10 ug/Lane)
Lane 5: Mouse brain tissue lysate (10 ug/Lane)
Lane 6: Rat brain tissue lysate (10 ug/Lane)

Predicted band size: 62 kDa
Observed band size: 62 kDa

Exposure time: 5 seconds;

4-20% SDS-PAGE gel.

Proteins were transferred to a PVDF membrane and blocked with 5% NFDM/TBST for 1 hour at room temperature. The primary antibody (NBP3-32224) at 1/1,000 dilution was used in 5% NFDM/TBST at room temperature for 2 hours. Goat Anti-Rabbit IgG - HRP Secondary Antibody at 1:100,000 dilution was used for 1 hour at room temperature.

Immunocytochemistry/ Immunofluorescence: CRMP2 Antibody (JE31-53) [NBP3-32224]

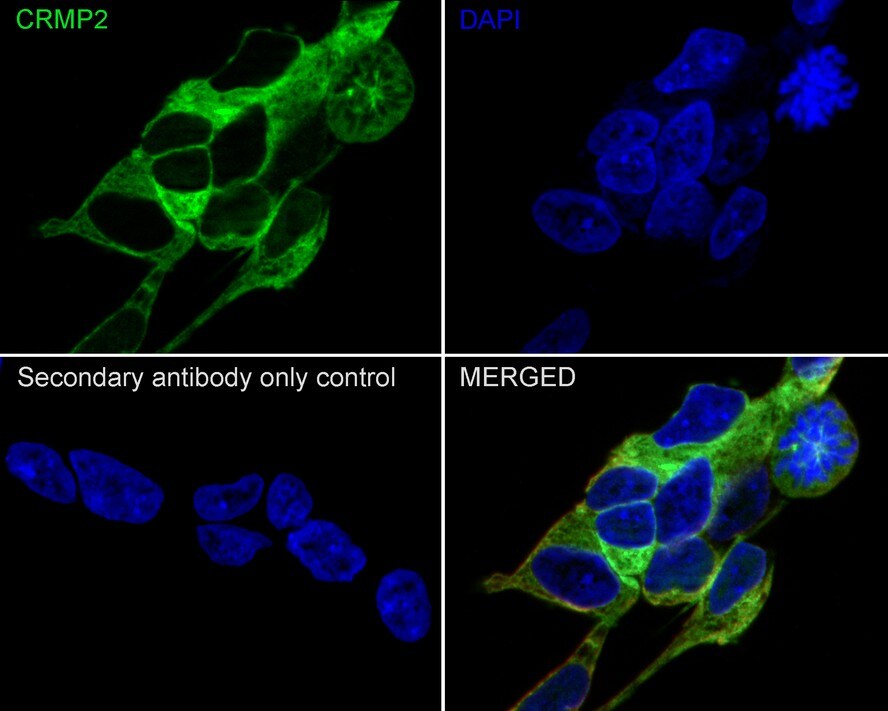

Immunocytochemistry/ Immunofluorescence: CRMP2 Antibody (JE31-53) [NBP3-32224] - Immunocytochemistry analysis of SH-SY5Y cells labeling CRMP2 with Rabbit anti-CRMP2 antibody (NBP3-32224) at 1/100 dilution.

Cells were fixed in 4% paraformaldehyde for 20 minutes at room temperature, permeabilized with 0.1% Triton X-100 in PBS for 5 minutes at room temperature, then blocked with 1% BSA in 10% negative goat serum for 1 hour at room temperature. Cells were then incubated with Rabbit anti-CRMP2 antibody (NBP3-32224) at 1/100 dilution in 1% BSA in PBST overnight at 4 ℃. Goat Anti-Rabbit IgG H&L (iFluor™ 488) was used as the secondary antibody at 1/1,000 dilution. PBS instead of the primary antibody was used as the secondary antibody only control. Nuclear DNA was labelled in blue with DAPI.

Beta tubulin (red) was stained at 1/100 dilution overnight at +4℃. Goat Anti-Mouse IgG H&L (iFluor™ 594) was used as the secondary antibody at 1/1,000 dilution.

Flow Cytometry: CRMP2 Antibody (JE31-53) [NBP3-32224]

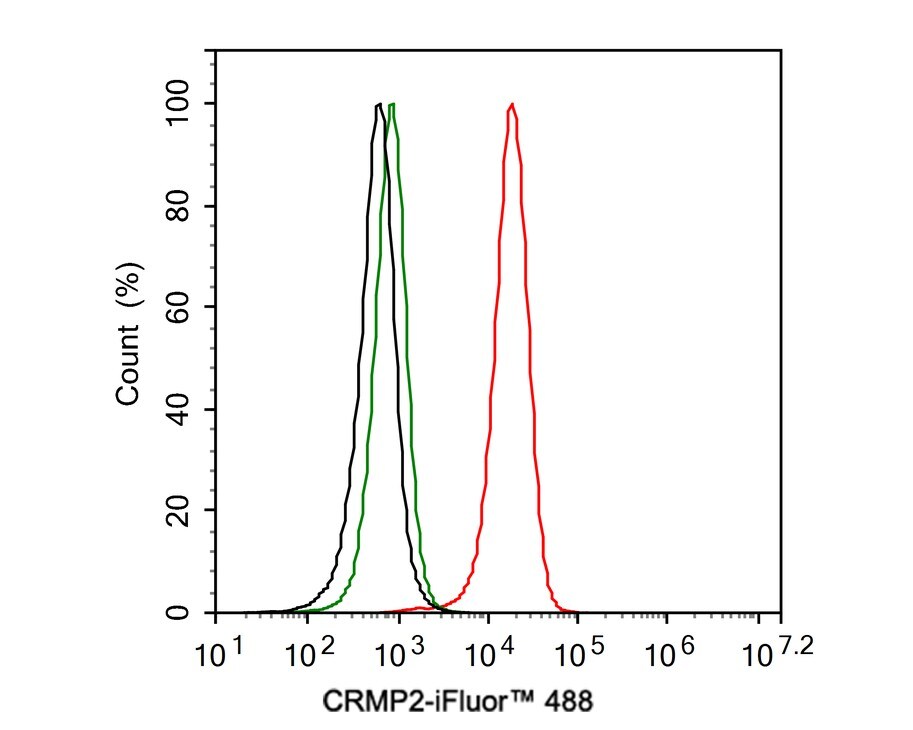

Flow Cytometry: CRMP2 Antibody (JE31-53) [NBP3-32224] - Flow cytometric analysis of SH-SY5Y cells labeling CRMP2.

Cells were fixed and permeabilized. Then stained with the primary antibody (NBP3-32224, 1ug/ml) (red) compared with Rabbit IgG Isotype Control (green). After incubation of the primary antibody at +4℃ for an hour, the cells were stained with a iFluor™ 488 conjugate-Goat anti-Rabbit IgG Secondary antibody at 1/1,000 dilution for 30 minutes at +4℃. Unlabelled sample was used as a control (cells without incubation with primary antibody; black).
