Human CCRL2/CRAM-A/B APC-conjugated Antibody

Catalog # Availability Size / Price Qty
Detection of CCRL2/CRAM‑A/B in PBMCs by Flow Cytometry.
2 Images
Product Details
Citations (1)
Supplemental Products

Human CCRL2/CRAM-A/B APC-conjugated Antibody Summary

Species Reactivity
Detects human CCRL2/CRAM‑A/B. Stains human CCRL2-transfected cells but not irrelevant transfectants. Detects both the CRAM-A and CRAM-B isoforms.
Monoclonal Mouse IgG2B Clone # 152254
Protein A or G purified from hybridoma culture supernatant
NS0 mouse myeloma cell line transfected with human CRAM-A
Met1-Val356 (Val180Met)
Accession # NP_001124382
Supplied in a saline solution containing BSA and Sodium Azide.
Allophycocyanin (Excitation= 620-650 nm, Emission= 660-670 nm)


Recommended Concentration
Flow Cytometry
10 µL/106 cells
See below

Please Note: Optimal dilutions should be determined by each laboratory for each application. General Protocols are available in the Technical Information section on our website.

Scientific Data

Flow Cytometry Detection of CCRL2/CRAM-A/B antibody in PBMCs antibody by Flow Cytometry. View Larger

Detection of CCRL2/CRAM‑A/B in PBMCs by Flow Cytometry. Peripheral Blood Mononuclear Cells (PBMCs) cultured with Recombinant Human IL-2 (Catalog # 202-IL) were stained with Mouse Anti-Human CD14 PE-conjugated Monoclonal Antibody (Catalog # FAB3832P) and either (A) Mouse Anti-Human CCRL2/CRAM-A/B APC-conjugated Monoclonal Antibody (Catalog # FAB23501A) or (B) Mouse IgG2BAllophycocyanin Isotype Control (Catalog # IC0041A). View our protocol for Staining Membrane-associated Proteins.

Flow Cytometry View Larger

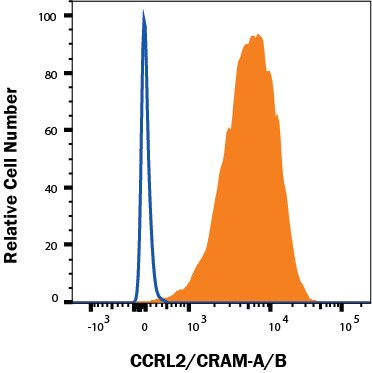

Detection of CCRL2/CRAM‑A/B in MDA-MB-231 Human Cell Line by Flow Cytometry. MDA-MB-231 human breast adenocarcinoma cell line was stained with Mouse Anti-Human CCRL2/CRAM-A/B APC-conjugated Monoclonal Antibody (Catalog # FAB23501A, filled histogram) or Mouse IgG2B Allophycocyanin Isotype Control (IC0041A, open histogram). Staining was performed using our Staining Membrane-associated Proteins protocol.

Reconstitution Calculator

Reconstitution Calculator

The reconstitution calculator allows you to quickly calculate the volume of a reagent to reconstitute your vial. Simply enter the mass of reagent and the target concentration and the calculator will determine the rest.


Preparation and Storage

The product is shipped with polar packs. Upon receipt, store it immediately at the temperature recommended below.
Stability & Storage
Store the unopened product at 2 - 8° C. Do not use past expiration date. Protect from light.

Background: CCRL2/CRAM-A/B

CCRL2, also known as CCR11, CRAM-A, CRAM-B, CKRX, and HCR, is a seven-transmembrane G-protein linked receptor that shares homology with other human chemokine receptors. The isoforms CRAM-A and CRAM-B differ at their N-termini by the insertion of an additional 12 amino acids in CRAM-A. CCRL2/CRAM‑A/B is expressed at varying levels on a variety of peripheral blood cells including monocytes, neutrophils, B cells, and T cells (1, 2). CCL19 has been identified as a ligand for CRAM-B (4). Human and mouse CRAM share approximately 47% amino acid sequence identity.

  1. Fan, P. et al. (1998) Biochem. Biophys. Res. Commun. 243:264.
  2. Migeotte, I. et al. (2002) Eur. J. Immunol. 32:494.
  3. Hartmann, T.N. et al. (2008) Immunology 125:252.
  4. Leick, M. et al. (2010) Immunology 129:536.
Long Name
CC Chemokine Receptor-like 2
Entrez Gene IDs
9034 (Human)
Alternate Names
ACKR5; C-C chemokine receptor-like 2; CCR11; CCR6; CCRL2; CCRL2/CRAM-A/B; chemokine (C-C motif) receptor-like 2; Chemokine receptor CCR11; Chemokine receptor X; CKRX; CKRXMGC116710; CRAM; CRAMA; CRAM-A; CRAMB; CRAM-B; FLJ55815; HCR; HCRMGC34104; Putative MCP-1 chemokine receptor

Product Datasheets

You must select a language.


Citation for Human CCRL2/CRAM-A/B APC-conjugated Antibody

R&D Systems personnel manually curate a database that contains references using R&D Systems products. The data collected includes not only links to publications in PubMed, but also provides information about sample types, species, and experimental conditions.

1 Citation: Showing 1 - 1

  1. Mesenchymal stromal cell-secreted chemerin is a novel immunomodulatory molecule driving the migration of ChemR23-expressing cells
    Authors: Paola Vinci
    Cytotherapy, 2016;0(0):.
    Species: Human
    Sample Types: Whole Cells
    Applications: Flow Cytometry
