Human LAG‑3 mFluor™ Violet 610-Conjugated Antibody

R&D Systems | Catalog # FAB23193MFV610

R&D Systems
Loading...

Key Product Details

Validated by

Biological Validation

Species Reactivity

Human

Applications

Flow Cytometry

Label

mFluor Violet 610 SE (Excitation = 421 nm, Emission = 613 nm)

Antibody Source

Monoclonal Mouse IgG1 Clone # 874501
Loading...

Product Specifications

Immunogen

Mouse myeloma cell line NS0-derived recombinant human LAG-3
Leu23-Leu450
Accession # P18627

Specificity

Detects human LAG-3 in direct ELISAs.

Clonality

Monoclonal

Host

Mouse

Isotype

IgG1

Scientific Data Images for Human LAG‑3 mFluor™ Violet 610-Conjugated Antibody

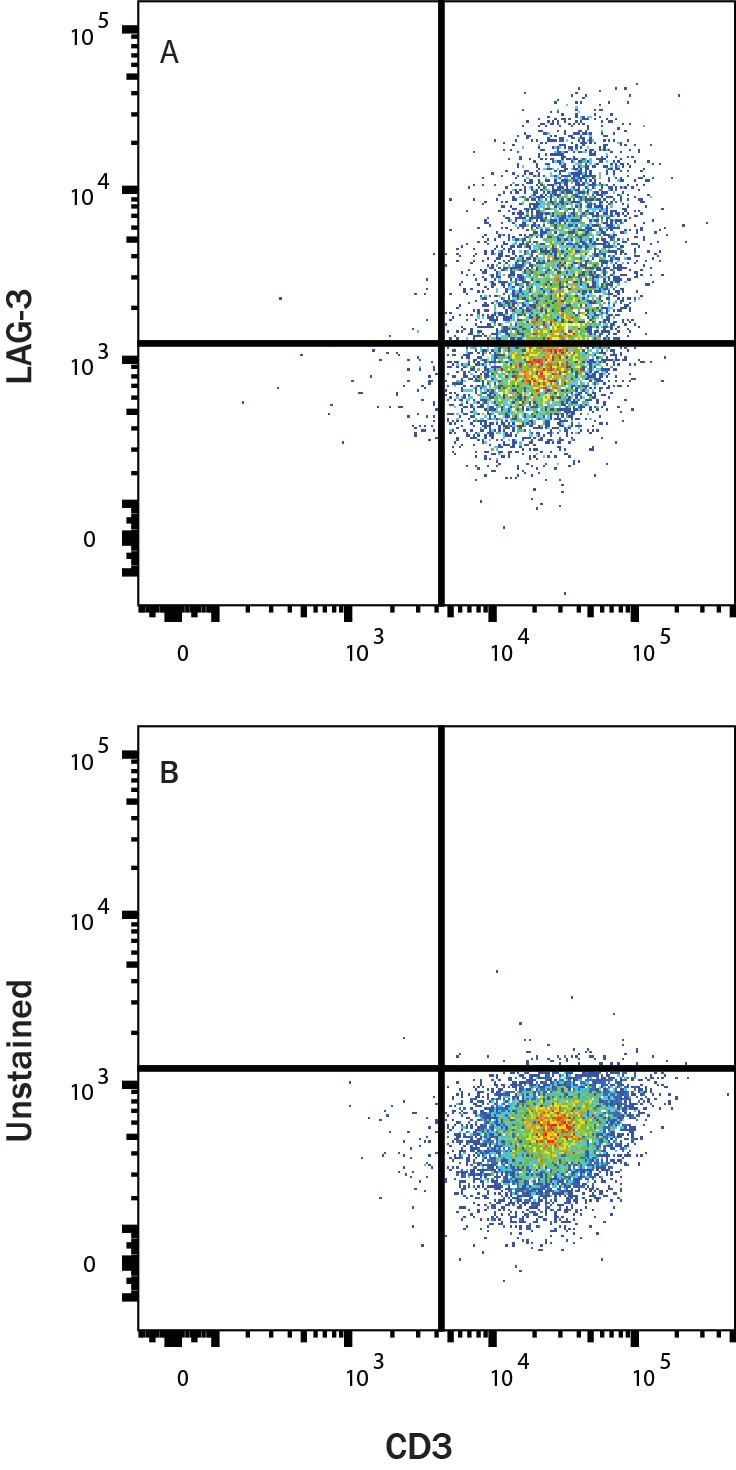

LAG-3 Antibody (874501) [mFluor Violet 610 SE]

Detection of LAG‑3 in PBMCs treated with 5 ug/mL PHA for 5 days cells by Flow Cytometry.

PBMCs treated with 5 ug/mL PHA for 5 days were stained with Mouse Anti-Human CD3 epsilon APC‑conjugated Monoclonal Antibody (Catalog # FAB100A) and either (A) Mouse Anti-Human LAG‑3 mFluor™ Violet 610-Conjugated Monoclonal Antibody (Catalog # FAB23193MFV610) or (B) unstained cells. View our protocol for Staining Membrane-associated Proteins.

Applications for Human LAG‑3 mFluor™ Violet 610-Conjugated Antibody

Application
Recommended Usage

Flow Cytometry

5 µL/106 cells
Sample: PBMCs treated with 5 ug/mL PHA for 5 days

Spectra Viewer

Plan Your Experiments

Use our spectra viewer to interactively plan your experiments, assessing multiplexing options. View the excitation and emission spectra for our fluorescent dye range and other commonly used dyes.

Spectra Viewer

Flow Cytometry Panel Builder

Bio-Techne Knows Flow Cytometry

Save time and reduce costly mistakes by quickly finding compatible reagents using the Panel Builder Tool.

Advanced Features

  • Spectra Viewer - Custom analysis of spectra from multiple fluorochromes
  • Spillover Popups - Visualize the spectra of individual fluorochromes
  • Antigen Density Selector - Match fluorochrome brightness with antigen density
Build Your Panel Now

Formulation, Preparation, and Storage

Purification

Protein A or G purified from hybridoma culture supernatant

Formulation

Supplied in a saline solution containing BSA and Sodium Azide.

Shipping

The product is shipped with polar packs. Upon receipt, store it immediately at the temperature recommended below.

Stability & Storage

Do not freeze.
  • 12 months from date of receipt, 2 to 8 °C as supplied.

Background: LAG-3

LAG-3 (Lymphocyte activation gene-3), also known as CD223, is a member of the immunoglobulin superfamily (IgSF). The mature LAG-3 protein is a 496 amino acid (aa) membrane protein with a 421 aa extracellular region which contains four IgSF domains, a 21 aa transmembrane region and a 54 aa cytoplasmic region. LAG-3 and CD4 molecules share < 20% aa sequence homology but have a similar structure (1, 2). Both molecules bind to MHC class II. LAG-3 binds to MHC class II with higher affinity compared to CD4. Both LAG-3 and CD4 genes are located on the distal part of the short arm of chromosome 12.

LAG-3 is an activation-induced molecule, expressed on activated T cells and NK cells, but not on resting T cells. Studies using LAG-3 -/- mice have shown significant delay of T cell apoptosis following antigen stimulation and increased size of memory T cells pool following infection (3, 4). It also has been reported that anti-LAG-3 antibodies up-regulate T cell activation by blocking interaction of LAG-3 and MHC class II. The study has demonstrated that LAG-3 is selectively expressed on activated CD4+CD25+ TReg cells and plays a role in their suppressive activity (5). This evidence indicated, unlike the interaction of CD4 with MHC class II that plays a positive role in T cell activation, LAG-3 binds to MHC class II and negatively regulates T cell activation through LAG-3 signaling. On the other hand, studies have shown that binding of LAG-3 to MHC class II molecules on antigen presenting cells induce maturation of dendritic cells and cytokine secretion by monocytes through MHC class II signal transduction (6). Taken together, LAG-3 may have two major functions, it negatively regulates T cells activation through LAG-3 signaling and stimulates antigen presenting cells which express MHC class II.

References

  1. Triebel, F. et al. (1990) J. Exp. Med. 171:1393.
  2. Baixeras, E. et al. (1992) J. Exp. Med 176:327.
  3. Workman, C.J. and D.A. Vignali (2003) Eur. J. Immunol. 33:970.
  4. Workman, C.J. et al. (2004) J. Immunol. 172:5450.
  5. Huang, C.T. et al. (2004) Immunity 21:503.
  6. Andreae, S. et al. (2003) Blood 102:2130.

Long Name

Lymphocyte-activation Gene 3

Alternate Names

CD223, LAG3

Entrez Gene IDs

3902 (Human); 16768 (Mouse); 297596 (Rat); 102122272 (Cynomolgus Monkey)

Gene Symbol

LAG3

UniProt

Additional LAG-3 Products

Product Documents for Human LAG‑3 mFluor™ Violet 610-Conjugated Antibody

Certificate of Analysis

To download a Certificate of Analysis, please enter a lot or batch number in the search box below.

Note: Certificate of Analysis not available for kit components.

Product Specific Notices for Human LAG‑3 mFluor™ Violet 610-Conjugated Antibody

mFluorTM is a trademark of AAT Bioquest, Inc.

For research use only
