Human/Mouse NLRP3/NALP3 Alexa Fluor® 750-conjugated Antibody

Catalog # Availability Size / Price Qty
IC7578S-100UG
Detection of Mouse NLRP3/NALP3 by Flow Cytometry
2 Images
Product Details
Citations (2)
FAQs
Reviews

Human/Mouse NLRP3/NALP3 Alexa Fluor® 750-conjugated Antibody Summary

Species Reactivity
Human, Mouse
Specificity
Detects mouse NLRP3/NALP3 in direct ELISAs. In direct ELISAs, 100% cross-reactivity with recombinant human NLRP3/NALP3 is observed.
Source
Monoclonal Rat IgG2a Clone # 768319
Immunogen
E. coli-derived recombinant mouse NLRP3/NALP3
Met1-Arg153
Accession # Q8R4B8
Formulation
Supplied 0.2 mg/mL in a saline solution containing BSA and Sodium Azide.
Label
Alexa Fluor 750 (Excitation= 749 nm, Emission= 775 nm)

Applications

Recommended Concentration
Sample
Intracellular Staining by Flow Cytometry
0.25-1 µg/106 cells
RAW 264.7 mouse monocyte/macrophage cell line and human peripheral blood monocytes fixed with paraformaldehyde and permeabilized with saponin

Please Note: Optimal dilutions should be determined by each laboratory for each application. General Protocols are available in the Technical Information section on our website.

Scientific Data

Flow Cytometry Detection of Mouse NLRP3/NALP3 by Flow Cytometry View Larger

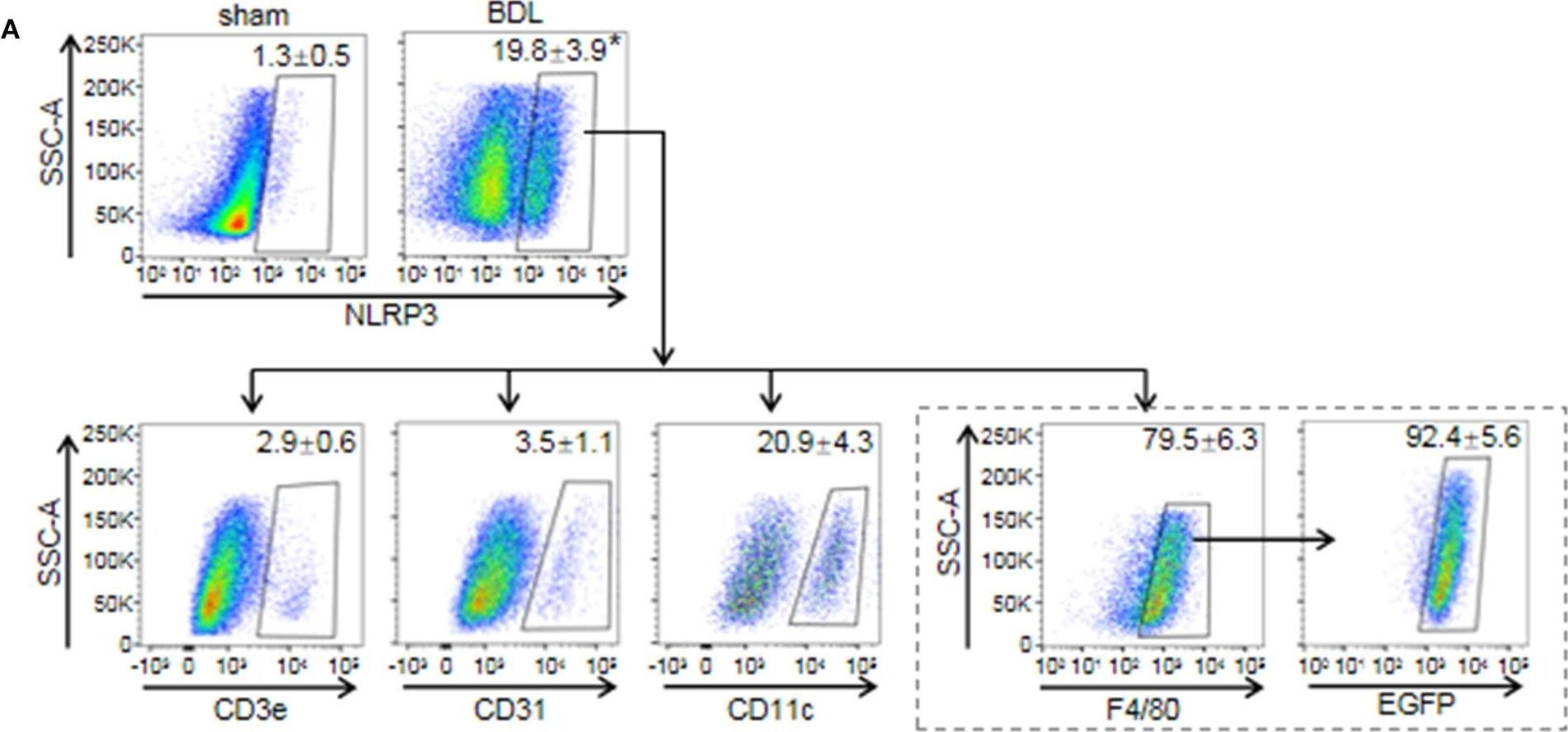

Detection of Mouse NLRP3/NALP3 by Flow Cytometry The cell-specific expression pattern of NLRP3 in the fibrotic liver of BDL-treated mice. (A) Mice were anesthetized and sacrificed at 2 weeks after sham or BDL operation. NLRP3 positive cells of the mouse liver non-parenchymal cells were analyzed for T cells, endothelial cells, dendritic cells, and macrophages-specific markers (CD3e, CD31, CD11c, and F4/80, respectively). Mice were lethally irradiated and received whole bone marrow cell transplants from EGFP transgenic mice, followed by sham or BDL operation. At 2 weeks after sham or BDL operation, the proportion of NLRP3+ cells in BMMs (F4/80+ EGFP+) was analyzed by FACS. (B) Representative images of immunofluorescence analysis by confocal microscopy to track the expression of NLRP3 (red) in macrophages (F4/80+, pink) of bone marrow origin (EGFP+, green) in mouse liver tissue. Data are presented as the mean ± SEM. n = 6 per group. Student's t-test was used in panel (A). *p < 0.05 vs. sham group. Image collected and cropped by CiteAb from the following publication (https://pubmed.ncbi.nlm.nih.gov/32695095), licensed under a CC-BY license. Not internally tested by R&D Systems.

Flow Cytometry Detection of Mouse NLRP3/NALP3 by Flow Cytometry View Larger

Detection of Mouse NLRP3/NALP3 by Flow Cytometry The cell-specific expression pattern of NLRP3 in the fibrotic liver of BDL-treated mice. (A) Mice were anesthetized and sacrificed at 2 weeks after sham or BDL operation. NLRP3 positive cells of the mouse liver non-parenchymal cells were analyzed for T cells, endothelial cells, dendritic cells, and macrophages-specific markers (CD3e, CD31, CD11c, and F4/80, respectively). Mice were lethally irradiated and received whole bone marrow cell transplants from EGFP transgenic mice, followed by sham or BDL operation. At 2 weeks after sham or BDL operation, the proportion of NLRP3+ cells in BMMs (F4/80+ EGFP+) was analyzed by FACS. (B) Representative images of immunofluorescence analysis by confocal microscopy to track the expression of NLRP3 (red) in macrophages (F4/80+, pink) of bone marrow origin (EGFP+, green) in mouse liver tissue. Data are presented as the mean ± SEM. n = 6 per group. Student's t-test was used in panel (A). *p < 0.05 vs. sham group. Image collected and cropped by CiteAb from the following publication (https://pubmed.ncbi.nlm.nih.gov/32695095), licensed under a CC-BY license. Not internally tested by R&D Systems.

Reconstitution Calculator

Reconstitution Calculator

The reconstitution calculator allows you to quickly calculate the volume of a reagent to reconstitute your vial. Simply enter the mass of reagent and the target concentration and the calculator will determine the rest.

=
÷

Preparation and Storage

Shipping
The product is shipped with polar packs. Upon receipt, store it immediately at the temperature recommended below.
Stability & Storage
Store the unopened product at 2 - 8 °C. Do not use past expiration date.

Background: NLRP3/NALP3

NLRP3, also known as NALP3, CIAS1, PYPAF or Cryopyrin, is a cytosolic ~120 kDa member of the NLRP family of proteins expressed in leukocytes, especially neutrophils. As a component of the inflammasome, NLRP3 activates caspases 1 and 5. Defects in NLRP3 may cause FCAS1, CINCA, or Muckle-Wells autoinflammatory syndromes. Mouse NLRP3 contains an N-terminal Pyrin domain (aa 1-91) followed by a Nacht region (aa 216-532), and seven LRRs (aa 739-988). Within the sequence used as an immunogen, mouse NLRP3 shares 78% and 93% aa identity with human and rat NLRP3, respectively. Alternate splicing of mouse NLRP3 generates additional isoforms that lack either LRR2 and 3, LRR 6 and 7, or LRR4-9.

Long Name
NLR Family, Pyrin Domain Containing 2
Entrez Gene IDs
114548 (Human); 216799 (Mouse); 287362 (Rat)
Alternate Names
AGTAVPRL; AII; AII/AVP; Angiotensin/vasopressin receptor AII/AVP-like; AVP; C1orf7; Caterpiller protein 1.1; CIAS1; CLR1.1; Cold autoinflammatory syndrome 1 protein; Cold autoinflammatory syndrome 1; Cryopyrin; Familial cold autoinflammatory syndrome; FCAS; FCU; Leucine-rich repeat-, and PYD-containing protein 3; Muckle-Wells syndrome; MWS; NACHT; NACHT, LRR and PYD containing protein 3; NACHT, LRR and PYD domains-containing protein 3; NALP3; NLR family, pyrin domain containing 3; NLRP3; Nucleotide-Binding Oligomerization Domain, Leucine Rich Repeat And Pyrin Domain Containing 3; PYPAF1; PYRIN-containing APAF1-like protein 1

Product Datasheets

You must select a language.

x

Product Specific Notices


This product is provided under an agreement between Life Technologies Corporation and R&D Systems, Inc, and the manufacture, use, sale or import of this product is subject to one or more US patents and corresponding non-US equivalents, owned by Life Technologies Corporation and its affiliates. The purchase of this product conveys to the buyer the non-transferable right to use the purchased amount of the product and components of the product only in research conducted by the buyer (whether the buyer is an academic or for-profit entity). The sale of this product is expressly conditioned on the buyer not using the product or its components (1) in manufacturing; (2) to provide a service, information, or data to an unaffiliated third party for payment; (3) for therapeutic, diagnostic or prophylactic purposes; (4) to resell, sell, or otherwise transfer this product or its components to any third party, or for any other commercial purpose. Life Technologies Corporation will not assert a claim against the buyer of the infringement of the above patents based on the manufacture, use or sale of a commercial product developed in research by the buyer in which this product or its components was employed, provided that neither this product nor any of its components was used in the manufacture of such product. For information on purchasing a license to this product for purposes other than research, contact Life Technologies Corporation, Cell Analysis Business Unit, Business Development, 29851 Willow Creek Road, Eugene, OR 97402, Tel: (541) 465-8300. Fax: (541) 335-0354.
