Human/Mouse NLRP3/NALP3 APC-conjugated Antibody


  • Species Reactivity
    Human, Mouse
  • Specificity
    Detects mouse NLRP3/NALP3 in direct ELISAs. In direct ELISAs, 100% cross-reactivity with recombinant human NLRP3/NALP3 is observed.
  • Source
    Monoclonal Rat IgG2A Clone # 768319
  • Purification
    Protein A or G purified from hybridoma culture supernatant
  • Immunogen
    E. coli-derived recombinant mouse NLRP3/NALP3
    Met1-Arg153
    Accession # Q8R4B8
  • Formulation
    Supplied in a saline solution containing BSA and Sodium Azide.
  • Label
    Allophycocyanin
Applications
  •
    Recommended
    Concentration
    Sample
  • Intracellular Staining by Flow Cytometry
    10 µL/106 cells
    See below
Please Note: Optimal dilutions should be determined by each laboratory for each application. General Protocols are available in the Technical Information section on our website.
Data Examples
Intracellular Staining by Flow Cytometry
Detection of NLRP3/NALP3 in RAW 264.7 Mouse Cell Line by Flow Cytometry. RAW 264.7 mouse monocyte/macrophage cell line was stained with Rat Anti-Human/Mouse NLRP3/NALP3 APC‑conjugated Monoclonal Antibody (Catalog # IC7578A, filled histogram) or isotype control antibody (Catalog # IC006A, open histogram). To facilitate intracellular staining, cells were fixed with Flow Cytometry Fixation Buffer (Catalog # FC004) and permeabilized with Flow Cytometry Permeabilization/Wash Buffer I (Catalog # FC005). View our protocol for Staining Intracellular Molecules.
Intracellular Staining by Flow Cytometry

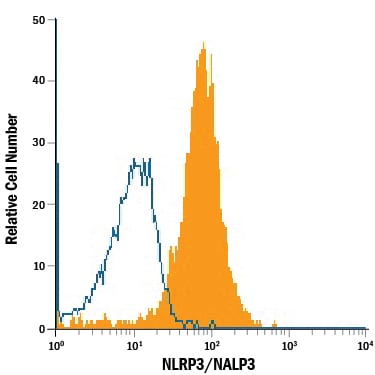

Detection of NLRP3/NALP3 in Human Blood Monocytes by Flow Cytometry. Human peripheral blood monocytes were stained with Rat Anti-Human/Mouse NLRP3/NALP3 APC‑conjugated Monoclonal Antibody (Catalog # IC7578A, filled histogram) or isotype control antibody (Catalog # IC006A, open histogram). To facilitate intracellular staining, cells were fixed with Flow Cytometry Fixation Buffer (Catalog # FC004) and permeabilized with Flow Cytometry Permeabilization/Wash Buffer I (Catalog # FC005). View our protocol for Staining Intracellular Molecules.
Preparation and Storage
  • Shipping
    The product is shipped with polar packs. Upon receipt, store it immediately at the temperature recommended below.
  • Stability & Storage
    Protect from light. Do not freeze.
    • 12 months from date of receipt, 2 to 8 °C as supplied.
Background: NLRP3/NALP3
NLRP3, also known as NALP3, CIAS1, PYPAF or Cryopyrin, is a cytosolic ~120 kDa member of the NLRP family of proteins expressed in leukocytes, especially neutrophils. As a component of the inflammasome, NLRP3 activates caspases 1 and 5. Defects in NLRP3 may cause FCAS1, CINCA, or Muckle-Wells autoinflammatory syndromes. Mouse NLRP3 contains an N-terminal Pyrin domain (aa 1-91) followed by a Nacht region (aa 216-532), and seven LRRs (aa 739-988). Within the sequence used as an immunogen, mouse NLRP3 shares 78% and 93% aa identity with human and rat NLRP3, respectively. Alternate splicing of mouse NLRP3 generates additional isoforms that lack either LRR2 and 3, LRR 6 and 7, or LRR4-9.
  • Long Name:
    NLR Family, Pyrin Domain Containing 2
  • Entrez Gene IDs:
    114548 (Human); 216799 (Mouse); 287362 (Rat)
  • Alternate Names:
    AGTAVPRL; AII; AII/AVP; Angiotensin/vasopressin receptor AII/AVP-like; AVP; C1orf7; Caterpiller protein 1.1; CIAS1; CLR1.1; Cold autoinflammatory syndrome 1 protein; Cold autoinflammatory syndrome 1; Cryopyrin; Familial cold autoinflammatory syndrome; FCAS; FCU; Leucine-rich repeat-, and PYD-containing protein 3; Muckle-Wells syndrome; MWS; NACHT; NACHT, LRR and PYD containing protein 3; NACHT, LRR and PYD domains-containing protein 3; NALP3; NLR family, pyrin domain containing 3; NLRP3; Nucleotide-Binding Oligomerization Domain, Leucine Rich Repeat And Pyrin Domain Containing 3; PYPAF1; PYRIN-containing APAF1-like protein 1
