Human PD-L1/B7-H1 Alexa Fluor® 594-conjugated Antibody

Catalog # Availability Size / Price Qty
FAB1561T-025
Detection of B7‑H1/PD‑L1 in Human PBMCs by Flow Cytometry.
2 Images
Product Details
FAQs
Supplemental Products
Reviews

Human PD-L1/B7-H1 Alexa Fluor® 594-conjugated Antibody Summary

Species Reactivity
Human
Specificity
Detects human B7‑H1/PD‑L1 in direct ELISAs. In direct ELISAs, no cross-reactivity with recombinant human (rh) B7-1, -2, -H2, -H3, -H3b,
-H4, rhPD-L2, recombinant mouse B7-H1, recombinant rat (rr) B7-1, or rrB7-2 is observed.
Source
Monoclonal Mouse IgG1 Clone # 130021
Purification
Protein A or G purified from hybridoma culture supernatant
Immunogen
Mouse myeloma cell line NS0-derived recombinant human B7‑H1/PD‑L1
Phe19-Thr239
Accession # Q9NZQ7
Formulation
Supplied in a saline solution containing BSA and Sodium Azide.
Label
Alexa Fluor 594

Applications

Recommended Concentration
Sample
Flow Cytometry
5 µL/106 cells
See below

Please Note: Optimal dilutions should be determined by each laboratory for each application. General Protocols are available in the Technical Information section on our website.

Data Examples

Flow Cytometry Detection of B7‑H1/PD‑L1 in Human PBMCs by Flow Cytometry. View Larger

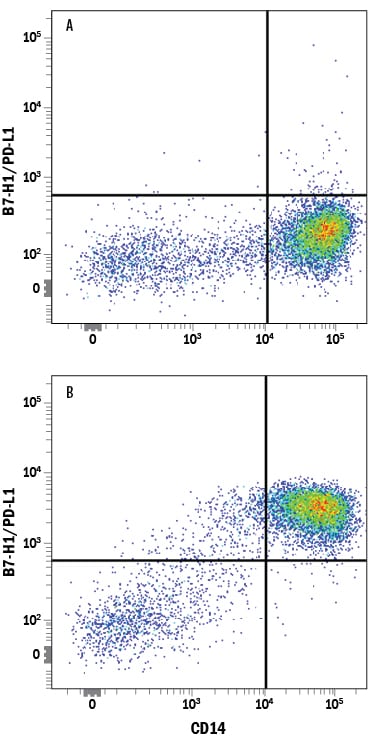

Detection of B7‑H1/PD‑L1 in Human PBMCs by Flow Cytometry. Human peripheral blood mononuclear cells (PBMCs) either (A) untreated or (B) treated with LPS were stained with Mouse Anti-Human B7‑H1/PD‑L1 Alexa Fluor® 594‑conjugated Monoclonal Antibody (Catalog # FAB1561T) and Mouse Anti-Human CD14 APC‑conjugated Monoclonal Antibody (Catalog # FAB3832A). Quadrant markers were set based on control antibody staining (Catalog # IC002T). View our protocol for Staining Membrane-associated Proteins.

Flow Cytometry Detection of PD-L1/B7-H1 in MDA-MB-231 Human Cell Line by Flow Cytometry. View Larger

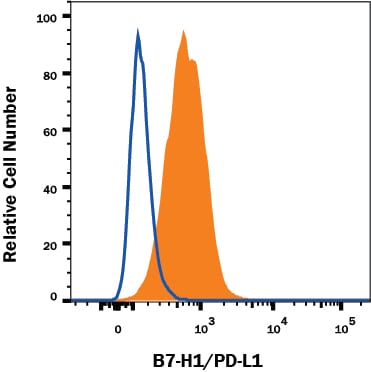

Detection of PD-L1/B7-H1 in MDA-MB-231 Human Cell Line by Flow Cytometry. MDA-MB-231 human breast adenocarcinoma cell line was stained with Mouse Anti-Human PD-L1/B7-H1 Alexa Fluor® 594-conjugated Monoclonal Antibody (Catalog # FAB1561T, filled histogram) or isotype control antibody (Catalog # IC002T, open histogram). Adherent cells were prepared by either manual scraping or with TrypLE Express treatment with similar results. View our protocol for Staining Membrane-associated Proteins.

Reconstitution Calculator

Reconstitution Calculator

The reconstitution calculator allows you to quickly calculate the volume of a reagent to reconstitute your vial. Simply enter the mass of reagent and the target concentration and the calculator will determine the rest.

=
÷

Preparation and Storage

Shipping
The product is shipped with polar packs. Upon receipt, store it immediately at the temperature recommended below.
Stability & Storage
Protect from light. Do not freeze.
  • 12 months from date of receipt, 2 to 8 °C as supplied.

Background: PD-L1

Human B7 Homolog 1 (B7-H1), also called Programmed Death Ligand 1 (PD-L1)and  Programmed Cell Death 1 Ligand 1 (PDCD1L1), is a member of the B7 family of immune proteins that provide signals for both stimulating and inhibiting T cell activation. Other family members include B7-1, B7-2, B7-H2, PDL2 and B7-H3. B7 proteins are members of the immunoglobulin (Ig) superfamily. Their extracellular domains contain 2 Ig-like domains and all members have short cytoplasmic regions. Among the family members, there is about 20-25% amino acid identity. Human and mouse B7-H1 share approximately 70% amino acid sequence identity. B7-H1 has been identified as one of two ligands for Programmed Death-1 (PD-1), a member of the CD28 family of immunoreceptors. The B7-H1 gene encodes a 290 amino acid (aa) type I membrane precursor protein with a putative 18 aa signal peptide, a 220 aa extracellular domain, a 21 aa transmembrane region, and a 31 aa cytoplasmic domain. Human B7-H1 is constitutively expressed in several organs such as heart, skeletal muscle, placenta and lung, and in lower amounts in thymus, spleen, kidney and liver. B7-H1 expression is upregulated in a small fraction of activated T and B cells and a much larger fraction of activated monocytes. B7-H1 expression is also induced in dendritic cells and keratinocytes after IFN-gamma stimulation. Interaction of B7-H1 with PD-1 results in inhibition of TCR-mediated proliferation and cytokine production. The B7-H1:PD-1 pathway is involved in the negative regulation of some immune responses and may play an important role in the regulation of peripheral tolerance.

Long Name
Programmed Death Ligand 1
Entrez Gene IDs
29126 (Human); 60533 (Mouse); 499342 (Rat); 484186 (Canine); 102145573 (Cynomolgus Monkey)
Alternate Names
B7-H; B7H1; B7-H1; B7H1PDCD1L1; CD274 antigenMGC142294; CD274 molecule; CD274; PDCD1L1; PDCD1LG1; PDCD1LG1MGC142296; PDL1; PD-L1; PD-L1B7 homolog 1; PDL1PDCD1 ligand 1; programmed cell death 1 ligand 1; Programmed death ligand 1
