Human PD-L1/B7-H1 Antibody (130021)

R&D Systems | Catalog # MAB1561

R&D Systems
100% Guarantee

Key Product Details

Validated by

Biological Validation

Species Reactivity

Validated:

Human

Cited:

Human, Mouse

Applications

Validated:

Immunohistochemistry, Flow Cytometry, Dual RNAscope ISH-IHC Compatible, CyTOF-ready

Cited:

Immunohistochemistry, Immunohistochemistry-Paraffin, Western Blot, Flow Cytometry, Immunofluorescence, Immunocytochemistry, ELISA Detection, ELISA Development (Capture)

Label

Unconjugated

Antibody Source

Monoclonal Mouse IgG1 Clone # 130021
View all PD-L1/B7-H1 Primary Antibodies »

Product Specifications

Immunogen

Mouse myeloma cell line NS0-derived recombinant human PD-L1/B7-H1
Phe19-Thr239
Accession # Q9NZQ7

Specificity

Detects human PD-L1/B7-H1 in direct ELISAs. In direct ELISAs, no cross-reactivity with recombinant human (rh) B7-1, -2, -H2, -H3, -H3b,-H4, rhPD-L2, recombinant mouse B7-H1, recombinant rat (rr) B7-1, or rrB7-2 is observed.

Clonality

Monoclonal

Host

Mouse

Isotype

IgG1

Scientific Data Images for Human PD-L1/B7-H1 Antibody (130021)

Detection of PD-L1/B7-H1 antibody in Jurkat Human Cell Line antibody by Flow Cytometry.

Detection of PD-L1/B7-H1 in Jurkat Human Cell Line by Flow Cytometry.

Jurkat human acute T cell leukemia cell line was stained with Mouse Anti-Human PD-L1/B7-H1 Monoclonal Antibody (Catalog # MAB1561, filled histogram) or isotype control antibody (Catalog # MAB002, open histogram), followed by Phycoerythrin-conjugated Anti-Mouse IgG F(ab')2Secondary Antibody (Catalog # F0102B).View our protocol for Staining Membrane-associated Proteins.

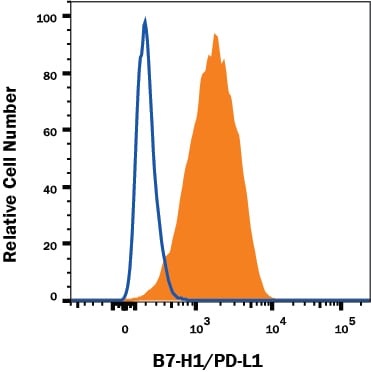

Detection of PD-L1/B7-H1 antibody in MDA-MB-231 Human Cell Line antibody by Flow Cytometry.

Detection of PD-L1/B7-H1 in MDA-MB-231 Human Cell Line by Flow Cytometry.

MDA-MB-231 human breast adenocarcinoma cell line was stained with Mouse Anti-Human PD-L1/B7-H1 Monoclonal Antibody (Catalog # MAB1561, filled histogram) or isotype control antibody (Catalog # MAB002, open histogram), followed by Phycoerythrin-conjugated Anti-Mouse IgG F(ab')2 Secondary Antibody (Catalog # F0102B). Adherent cells were prepared by either manual scraping or with TrypLE Express treatment with similar results. View our protocol for Staining Membrane-associated Proteins.
PD-L1/B7-H1 antibody in Human Colon Cancer by Immunohistochemistry (IHC-P).

PD-L1/B7-H1 in Human Colon Cancer.

PD-L1/B7-H1 was detected in formalin fixed paraffin-embedded sections of human colon cancer using Mouse Anti-Human PD-L1/B7-H1 Monoclonal Antibody (Catalog # MAB1561) at 15 µg/mL overnight at 4 °C. Tissue was stained using the Anti-Mouse HRP-DAB Cell & Tissue Staining Kit (brown; Catalog # CTS002) and counterstained with hematoxylin (blue). Specific staining was observed in the cytoplasm. View our protocol for Chromogenic IHC Staining of Paraffin-embedded Tissue Sections.

Detection of PD-L1/B7-H1 in Human Colon Cancer.

Formalin-fixed paraffin-embedded tissue sections of human colon cancer were probed for PDL1 mRNA (ACD RNAScope Probe, catalog # 600861; Fast Red chromogen, ACD catalog # 322360). Adjacent tissue section was processed for immunohistochemistry using mouse anti-human PDL1 monoclonal antibody (R&D Systems catalog # MAB1561) at 5ug/mL with overnight incubation at 4 degrees Celsius followed by incubation with anti-mouse IgG VisUCyte HRP Polymer Antibody (Catalog # VC001) and DAB chromogen (yellow-brown). Tissue was counterstained with hematoxylin (blue). Specific staining was localized to lymphocytes.

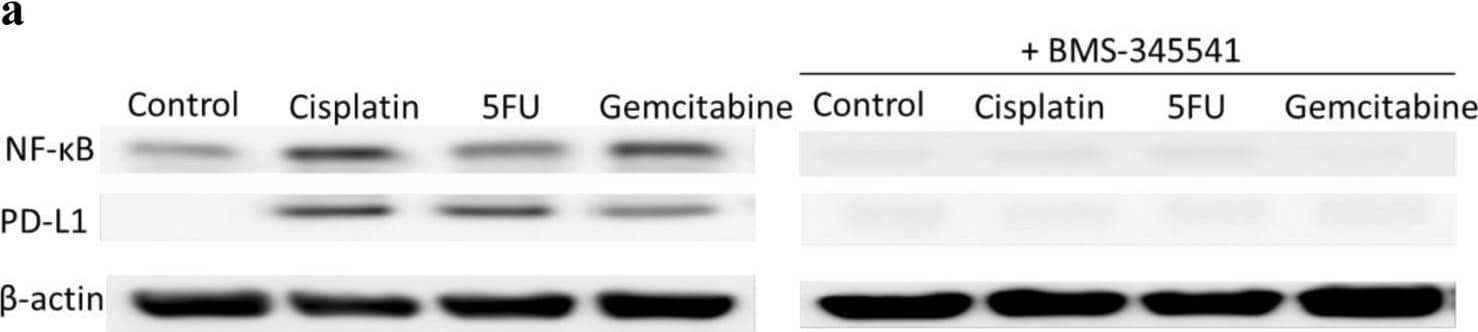

Detection of PD-L1/B7-H1 by Western Blot

Detection of PD-L1/B7-H1 by Western Blot

Chemotherapeutics induce PD-L1 expression in NPC cells and PD-1 expression in NK cells via upregulation of NF-kappa B. NPC cells a or NK cells c were incubated with the NF-kappa B inhibitor BMS-345541 for 1 h before incubation with chemotherapeutics. NPC cells were transfected with NF-kappa B siRNA b or NK cells with NF-kappa B siRNA d for 16 h and then incubated with chemotherapeutics. Expression of NF-kappa B, PD-L1 and PD-1 was analyzed by immunoblot Image collected and cropped by CiteAb from the following open publication (https://pubmed.ncbi.nlm.nih.gov/32737537), licensed under a CC-BY license. Not internally tested by R&D Systems.

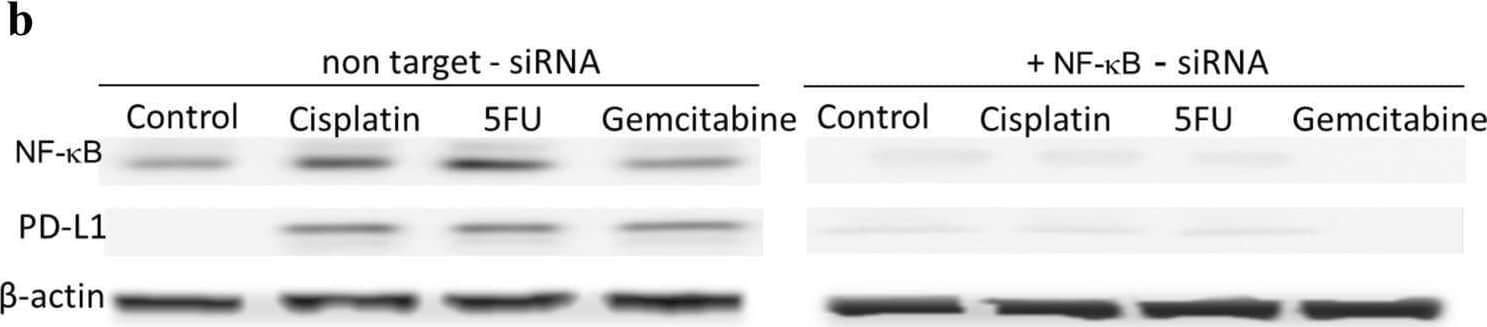

Detection of PD-L1/B7-H1 by Western Blot

Detection of PD-L1/B7-H1 by Western Blot

Chemotherapeutics induce PD-L1 expression in NPC cells and PD-1 expression in NK cells via upregulation of NF-kappa B. NPC cells a or NK cells c were incubated with the NF-kappa B inhibitor BMS-345541 for 1 h before incubation with chemotherapeutics. NPC cells were transfected with NF-kappa B siRNA b or NK cells with NF-kappa B siRNA d for 16 h and then incubated with chemotherapeutics. Expression of NF-kappa B, PD-L1 and PD-1 was analyzed by immunoblot Image collected and cropped by CiteAb from the following open publication (https://pubmed.ncbi.nlm.nih.gov/32737537), licensed under a CC-BY license. Not internally tested by R&D Systems.

Applications for Human PD-L1/B7-H1 Antibody (130021)

Application
Recommended Usage

CyTOF-ready

Ready to be labeled using established conjugation methods. No BSA or other carrier proteins that could interfere with conjugation.

Dual RNAscope ISH-IHC Compatible

3-25 µg/mL
Sample: Immersion fixed paraffin-embedded sections of human colon cancer

Flow Cytometry

0.25 µg/106 cells
Sample: Jurkat human acute T cell leukemia cell line or MDA-MB-231 human breast adenocarcinoma cell line

Immunohistochemistry

8-25 µg/mL
Sample: Immersion fixed paraffin-embedded sections of human colon

Reviewed Applications

Read 5 reviews rated 4.8 using MAB1561 in the following applications:

Flow Cytometry Panel Builder

Bio-Techne Knows Flow Cytometry

Save time and reduce costly mistakes by quickly finding compatible reagents using the Panel Builder Tool.

Advanced Features

  • Spectra Viewer - Custom analysis of spectra from multiple fluorochromes
  • Spillover Popups - Visualize the spectra of individual fluorochromes
  • Antigen Density Selector - Match fluorochrome brightness with antigen density
Build Your Panel Now
Flow Cytometry

Formulation, Preparation, and Storage

Purification

Protein A or G purified from hybridoma culture supernatant

Reconstitution

Reconstitute at 0.5 mg/mL in sterile PBS. For liquid material, refer to CoA for concentration.

Formulation

Lyophilized from a 0.2 μm filtered solution in PBS with Trehalose. See Certificate of Analysis for details.<br/>*Small pack size (-SP) is supplied either lyophilized or as a 0.2 µm filtered solution in PBS.

Shipping

Lyophilized product is shipped at ambient temperature. Liquid small pack size (-SP) is shipped with polar packs. Upon receipt, store immediately at the temperature recommended below.

Stability & Storage

Use a manual defrost freezer and avoid repeated freeze-thaw cycles.
  • 12 months from date of receipt, -20 to -70 °C as supplied.
  • 1 month, 2 to 8 °C under sterile conditions after reconstitution.
  • 6 months, -20 to -70 °C under sterile conditions after reconstitution.

Calculators

The reconstitution calculator allows you to quickly calculate the volume of a reagent to reconstitute your vial. Simply enter the mass of reagent and the target concentration and the calculator will determine the rest.

=
÷

Background: PD-L1/B7-H1

Human B7 homolog 1 (B7-H1), also called programmed death ligand 1 (PD-L1) and programmed cell death 1 ligand 1 (PDCD1L1), is a member of the growing B7 family of immune proteins that provide signals for both stimulating and inhibiting T cell activation. Other family members include B7-1, B7-2, B7-H2, PDL2 and B7-H3. B7 proteins are members of the immunoglobulin (Ig) superfamily. Their extracellular domains contain 2 Ig-like domains and all members have short cytoplasmic domains. Among the family members, there is about 20-25% amino acid identity. Human and mouse B7-H1 share approximately 70% amino acid sequence identity. B7-H1 has been identified as one of two ligands for programmed death-1 (PD-1), a member of the CD28 family of immunoreceptors. The B7-H1 gene encodes a 291 amino acid (aa) type I membrane precursor protein with a putative 18 aa signal peptide, a 220 aa extracellular domain, a 21 aa transmembrane region, and a 31 aa cytoplasmic domain. Human B7-H1 is constitutively expressed in several organs such as heart, skeletal muscle, placenta and lung, and in lower amounts in thymus, spleen, kidney and liver. B7-H1 expression is upregulated in a small fraction of activated T and B cells and a much larger fraction of activated monocytes. B7-H1 expression is also induced in dendritic cells and keratinocytes after IFN-gamma stimulation. Interaction of B7-H1 with PD-1 results in inhibition of TCR-mediated proliferation and cytokine production. The B7-H1:PD-1 pathway is involved in the negative regulation of some immune responses and may play an important role in the regulation of peripheral tolerance.

References

  1. Nishimura, H. and T. Honjo (2001) Trends Immunol. 22:265.
  2. Freeman, G.J. et al. (2000) J. Exp. Med. 192:1027.
  3. Latchman, Y. et al. (2001) Nat. Immunol. 2:261.

Long Name

Programmed Death Ligand 1

Alternate Names

B7-H1, B7H1, CD274, PDCD1L1, PDCD1LG1, PDL1

Entrez Gene IDs

29126 (Human); 60533 (Mouse); 499342 (Rat); 574058 (Porcine); 484186 (Canine); 102145573 (Cynomolgus Monkey)

Gene Symbol

CD274

UniProt

Q9NZQ7

Additional PD-L1/B7-H1 Products

Product Documents for Human PD-L1/B7-H1 Antibody (130021)

Certificate of Analysis

To download a Certificate of Analysis, please enter a lot or batch number in the search box below.

Note: Certificate of Analysis not available for kit components.

Download SDS

Product Specific Notices for Human PD-L1/B7-H1 Antibody (130021)

For research use only

Citations for Human PD-L1/B7-H1 Antibody (130021)

Customer Reviews for Human PD-L1/B7-H1 Antibody (130021) (5)

4.8 out of 5
5 Customer Ratings
5 Stars
80%
4 Stars
20%
3 Stars
0%
2 Stars
0%
1 Stars
0%

Have you used Human PD-L1/B7-H1 Antibody (130021)?

Submit a review and receive an Amazon gift card!

$25/€18/£15/$25CAN/¥2500 for a review with an image

$10/€7/£6/$10CAN/¥1110 for a review without an image

Submit a review
Amazon Gift Card

Customer Images

Showing  1 - 5 of 5 reviews Showing All
Filter By:
Clear Filters X
  • Human PD-L1 Antibody
    Name: Anonymous
    Application: Immunocytochemistry/Immunofluorescence
    Sample Tested: Melanoma tissue
    Species: Human
    Verified Customer | Posted 11/04/2020
    Human PD-L1/B7-H1 Antibody (130021) MAB1561

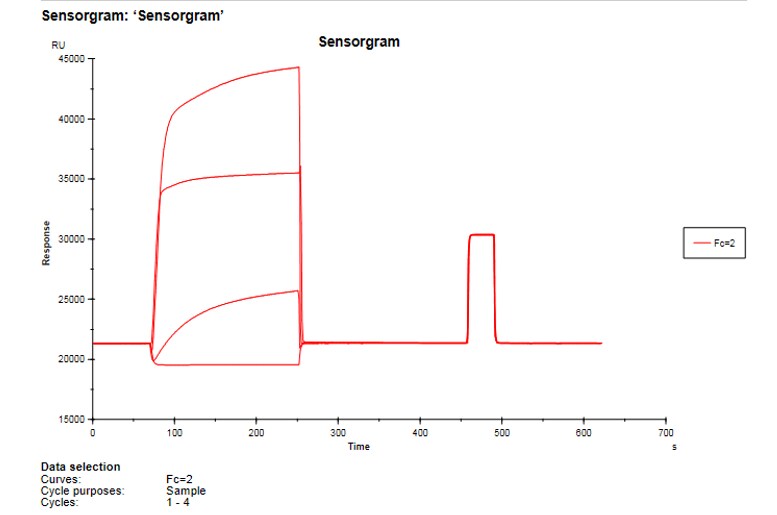

  • Human PD-L1/B7-H1 Antibody
    Name: Pingshen Hu
    Application: SPR ASSAY
    Sample Tested: MCF7
    Species: Human
    Verified Customer | Posted 12/16/2017
  • Human PD-L1/B7-H1 Antibody
    Name: Anonymous
    Application: Immunohistochemistry
    Sample Tested: Colon cancer tissue
    Species: Human
    Verified Customer | Posted 12/11/2017
  • Human PD-L1/B7-H1 Antibody
    Name: Anonymous
    Application: SPR
    Sample Tested: Human recombinant test antibody
    Species: Mouse
    Verified Customer | Posted 12/04/2017
    Human PD-L1/B7-H1 Antibody (130021) MAB1561

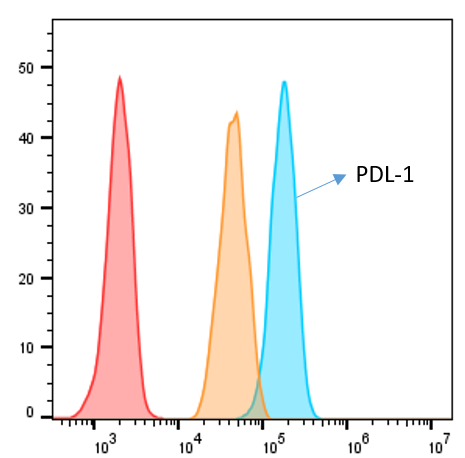

  • Human PD-L1/B7-H1 Antibody
