Human Pro-MMP-1 Quantikine ELISA Kit

Catalog # Availability Size / Price Qty
Control Products Available
Human Pro-MMP-1 ELISA Cell Culture Supernate Standard Curve
3 Images
Product Details
Citations (41)
Supplemental Products
Reviews (1)

Human Pro-MMP-1 Quantikine ELISA Kit Summary

Assay Type
Solid Phase Sandwich ELISA
96-well strip plate
Assay Length
4.5 hours
Sample Type & Volume Required Per Well
Cell Culture Supernates (100 uL), Serum (100 uL), Heparin Plasma (100 uL)
0.095 ng/mL
Assay Range
0.2 - 10 ng/mL (Cell Culture Supernates, Serum, Heparin Plasma)
Natural and recombinant human Pro-MMP-1
< 0.5% cross-reactivity observed with available related molecules.Cross-species reactivity not tested.
No significant interference observed with available related molecules.

Product Summary

The Quantikine Human Pro-MMP-1 Immunoassay is a 4.5 hour solid phase ELISA designed to measure Pro-MMP-1 in cell culture supernates, serum, and plasma. It contains NS0-expressed recombinant human Pro-MMP-1 and antibodies raised against the recombinant factor. The antibodies will not recognize recombinant human active MMP-1 or TIMP bound MMP-1. Natural human Pro-MMP-1 showed dose-response curves that were parallel to the standard curves obtained using the recombinant Quantikine kit standards, indicating that this kit can be used to determine relative mass values of natural human Pro-MMP-1.


Intra-Assay Precision (Precision within an assay) Three samples of known concentration were tested on one plate to assess intra-assay precision
Inter-Assay Precision (Precision between assays) Three samples of known concentration were tested in separate assays to assess inter-assay precision

Cell Culture Supernates

Intra-Assay Precision Inter-Assay Precision
Sample 1 2 3 1 2 3
n 20 20 20 40 40 40
Mean (ng/mL) 0.494 1.65 3.39 0.561 1.73 3.5
Standard Deviation 0.022 0.065 0.177 0.065 0.153 0.27
CV% 4.5 4 5.2 11.7 8.8 7.7

Serum, Heparin Plasma

Intra-Assay Precision Inter-Assay Precision
Sample 1 2 3 1 2 3
n 20 20 20 40 40 40
Mean (ng/mL) 0.702 2.13 4.43 0.738 2.34 4.66
Standard Deviation 0.039 0.13 0.241 0.077 0.176 0.312
CV% 5.6 6.1 5.4 10.4 7.5 6.7


The recovery of Pro-MMP-1 spiked to three different levels throughout the range of the assay in various matrices was evaluated.

Sample Type Average % Recovery Range %
Cell Culture Media (n=4) 103 98-112
Heparin Plasma (n=5) 92 85-102
Serum (n=5) 97 87-112

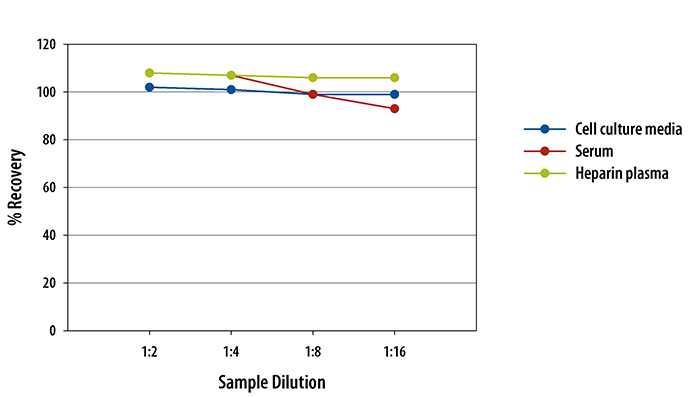

To assess the linearity of the assay, samples containing and/or spiked with high concentrations of Pro-MMP-1 were diluted with Calibrator Diluent to produce samples with values within the dynamic range of the assay.\line
Human Pro-MMP-1 ELISA Linearity

Data Examples

Human Pro-MMP-1 ELISA Cell Culture Supernate Standard Curve

Human Pro-MMP-1 ELISA Serum/Plasma Standard Curve

Product Datasheets

You must select a language.


Preparation and Storage

The product is shipped at ambient temperature. Upon receipt, store it immediately at the temperature recommended below.
Store the unopened product at 2 - 8 °C. Do not use past expiration date.

Background: MMP-1

The matrix metalloproteinases (MMPs) consist of 24 known human zinc proteases with essential roles in breaking down components of the extracellular matrix (ECM). Additional MMP substrates include cytokines, chemokines, growth factors and binding proteins, cell/cell adhesion molecules, and other proteinases. With a few exceptions, MMPs share common structural motifs including a pro-peptide domain, a catalytic domain, a hinge region, and a hemopexin-like domain. Synthesized as pro-enzymes, most MMPs are secreted before conversion to their active form. MMP activities are modulated on several levels including transcription, pro-enzyme activation, or by their endogenous inhibitors, tissue inhibitors of metalloproteinases (TIMPs). A subset of MMPs are associated with membranes and designated as membrane-type metalloproteinases (MT-MMP).

Long Name:
Matrix Metalloproteinase 1
Entrez Gene IDs:
4312 (Human); 83995 (Mouse)
Alternate Names:
CLGmatrix metalloprotease 1; CLGN; EC 3.4.24; EC; Fibroblast collagenase; interstitial collagenase; matrix metallopeptidase 1 (interstitial collagenase); matrix metalloproteinase 1 (interstitial collagenase); Matrix metalloproteinase-1; MMP1; MMP-1
⚠ WARNING: This product can expose you to chemicals including N,N-Dimethylforamide, which is known to the State of California to cause cancer. For more information, go to

Assay Procedure

Refer to the product for complete assay procedure.

Bring all reagents and samples to room temperature before use. It is recommended that all samples, standards, and controls be assayed in duplicate.
  1.   Prepare all reagents, standard dilutions, and samples as directed in the product insert.
  2.   Remove excess microplate strips from the plate frame, return them to the foil pouch containing the desiccant pack, and reseal.

  3. 100 µL Assay Diluent
  4.   Add 100 µL of Assay Diluent to each well.

  5. 100 µL Standard, Control, or Sample
  6.   Add 100 µL of Standard, control, or sample to each well. Cover with a plate sealer, and incubate at room temperature for 2 hours on a horizontal orbital microplate shaker.
  7.   Aspirate each well and wash, repeating the process 3 times for a total of 4 washes.

  8. 200 µL Conjugate
  9.   Add 200 µL of Conjugate to each well. Cover with a new plate sealer, and incubate at room temperature for 2 hours on the shaker.
  10.   Aspirate and wash 4 times.

  11. 200 µL Substrate Solution
  12.   Add 200 µL Substrate Solution to each well.
  13.   For Cell Culture Supernate Samples: Incubate at room temperature for 20 minutes on the benchtop. PROTECT FROM LIGHT.
    For Serum & Plasma Samples: Incubate at room temperature for 30 minutes on the benchtop. PROTECT FROM LIGHT.

  14. 50 µL Stop Solution
  15. Add 50 µL of Stop Solution to each well. Read at 450 nm within 30 minutes. Set wavelength correction to 540 nm or 570 nm.
