ALCAM, activated leukocyte cell adhesion molecule, is a type I membrane glycoprotein and a member of the immunoglobulin supergene family. It is also known as CD166, MEMD, SC-1/DM-GRASP/BEN in the chicken, and KG-CAM in the rat. ALCAM is expressed on thymic epithelial cells, activated B and T cells, and monocytes. ALCAM can bind itself homotypically and is also capable of binding CD6, NgCAM, and other, as of yet, unidentified brain proteins. ALCAM/CD6 interaction may be involved in T cell development and T cell regulation. Additionally, ALCAM/CD6 and ALCAM/NgCAM interactions may play roles in the nervous system. ALCAM has also been observed to be upregulated on highly metastasizing melanoma cell lines and may play a role in tumor migration. ALCAM is a 583 amino acid (aa) protein consisting of a 27 aa signal peptide, a 500 aa extracellular domain, a 24 aa transmembrane domain, and a 32 aa cytoplasmic domain. The extracellular domain of ALCAM contains 5 Ig-like domains of which the amino-terminal V1 domain is essential for ligand binding and ALCAM-mediated cell aggregation (1-4). The ECD of mouse ALCAM shares 97.5% aa sequence identity with rat ALCAM ECD.
Mouse ALCAM/CD166 APC‑conjugated Antibody
R&D Systems | Catalog # FAB1172A
Key Product Details
Species Reactivity
Applications
Label
Antibody Source
Product Specifications
Immunogen
Trp28-Lys527
Accession # AAC06342
Specificity
Clonality
Host
Isotype
Scientific Data Images for Mouse ALCAM/CD166 APC‑conjugated Antibody

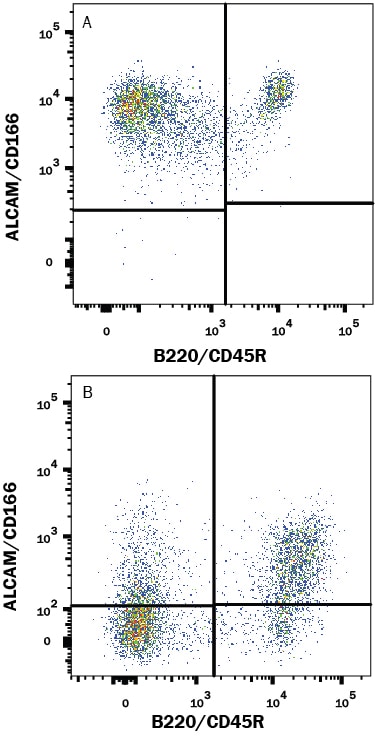

Detection of ALCAM/CD166 in Mouse Splenocytes by Flow Cytometry.
Mouse Splenocytes either (A) activated or (B) resting were stained with Goat Anti-Mouse ALCAM/CD166 APC-conjugated Antigen Affinity-purified Polyclonal Antibody (Catalog # FAB1172A) and Rat Anti-Mouse B220/CD45R PE-conjugated Monoclonal Antibody (Catalog # FAB1217P). Quadrant markers were set based on control antibody staining (Catalog # IC108A). View our protocol for Staining Membrane-associated Proteins.Detection of ALCAM/CD166 in Human PBMC's by Flow Cytometry
Human PBMC's were stained with Mouse Anti-Human CD3 epsilon PE‑conjugated Monoclonal Antibody (Catalog # FAB100P) and either (A) Goat Anti-Mouse ALCAM/CD166 APC‑conjugated Antigen Affinity-purified Polyclonal Antibody (Catalog # FAB1172A) or (B) isotype control antibody (Catalog # IC108A). View our protocol for Staining Membrane-associated Proteins.Applications for Mouse ALCAM/CD166 APC‑conjugated Antibody
Flow Cytometry
Sample: Mouse splenocytes and human PBMC's
Spectra Viewer
Plan Your Experiments
Use our spectra viewer to interactively plan your experiments, assessing multiplexing options. View the excitation and emission spectra for our fluorescent dye range and other commonly used dyes.
Spectra ViewerFlow Cytometry Panel Builder
Bio-Techne Knows Flow Cytometry
Save time and reduce costly mistakes by quickly finding compatible reagents using the Panel Builder Tool.
Advanced Features
- Spectra Viewer - Custom analysis of spectra from multiple fluorochromes
- Spillover Popups - Visualize the spectra of individual fluorochromes
- Antigen Density Selector - Match fluorochrome brightness with antigen density
Formulation, Preparation, and Storage
Purification
Formulation
Shipping
Stability & Storage
- 12 months from date of receipt, 2 to 8 °C as supplied.
Background: ALCAM/CD166
References
- Bowen, M.A. et al. (1995) J. Exp. Med. 181:2213.
- Aruffo, A. et al. (1997) Immunol. Today 18:498.
- Degen, W.G. et al. (1998) Am. J. Pathol. 152:805.
- Van Kempen, L. et al. (2001) J. Biol. Chem. 276:25783.
