ALCAM, activated leukocyte cell adhesion molecule, is a type I membrane glycoprotein and a member of the immunoglobulin supergene family. It is also known as CD166, MEMD, SC-1/DM-GRASP/BEN in the chicken, and KG-CAM in the rat. ALCAM is expressed on thymic epithelial cells, activated B and T cells, and monocytes. ALCAM can bind itself homotypically and is also capable of binding CD6, NgCAM, and other, as of yet, unidentified brain proteins. ALCAM/CD6 interaction may be involved in T cell development and T cell regulation. Additionally, ALCAM/CD6 and ALCAM/NgCAM interactions may play roles in the nervous system. ALCAM has also been observed to be upregulated on highly metastasizing melanoma cell lines and may play a role in tumor migration. ALCAM is a 583 amino acid (aa) protein consisting of a 27 aa signal peptide, a 500 aa extracellular domain, a 24 aa transmembrane domain and a 32 aa cytoplasmic domain. The extracellular domain of ALCAM contains 5 Ig-like domains of which the amino-terminal V1 domain is essential for ligand binding and ALCAM-mediated cell aggregation (1‑4).
Mouse ALCAM/CD166 Antibody [Biotin]
R&D Systems | Catalog # BAF1172
Scientific images may be resized, cropped, or adjusted for brightness or contrast for presentation purposes. These updates are limited to presentation and do not affect the underlying scientific interpretation of the data. Where available, additional source data may be provided upon request.
Key Product Details
Species Reactivity
Validated:
Mouse
Cited:
Mouse, Rat
Applications
Validated:
Immunohistochemistry, Western Blot, Flow Cytometry
Cited:
Immunohistochemistry, Immunohistochemistry-Paraffin, Flow Cytometry, Cell Selection
Label
Biotin
Antibody Source
Polyclonal Goat IgG
Loading...
Product Specifications
Immunogen
Mouse myeloma cell line NS0-derived recombinant mouse ALCAM/CD166
Trp28-Lys527
Accession # AAC06342
Trp28-Lys527
Accession # AAC06342
Specificity
Detects mouse ALCAM/CD166 in Western blots. In Western blots, approximately 50% cross-reactivity with recombinant human ALCAM is observed.
Clonality
Polyclonal
Host
Goat
Isotype
IgG
Scientific Data Images for Mouse ALCAM/CD166 Antibody [Biotin]
ALCAM/CD166 in Mouse Liver.
ALCAM/CD166 was detected in perfusion fixed frozen sections of mouse liver using Goat Anti-Mouse ALCAM/CD166 Biotinylated Antigen Affinity-purified Polyclonal Antibody (Catalog # BAF1172) at 5 µg/mL overnight at 4 °C. Tissue was stained using the Anti-Goat HRP-DAB Cell & Tissue Staining Kit (brown; Catalog # CTS008) and counterstained with hematoxylin (blue). Specific staining was localized to cytoplasm in hepatocytes. View our protocol for Chromogenic IHC Staining of Frozen Tissue Sections.

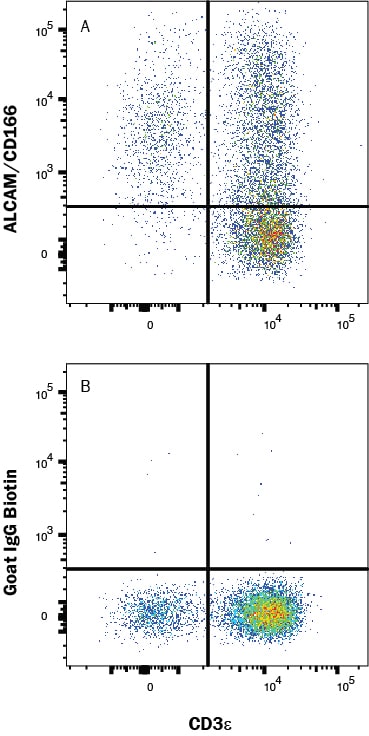

Detection of ALCAM/CD166 in Human PBMC's by Flow Cytometry
Human PBMC's were stained with Mouse Anti-Human CD3 epsilon PE‑conjugated Monoclonal Antibody (Catalog # FAB100P) and either (A) Goat Anti-Mouse ALCAM/CD166 Biotinylated Antigen Affinity-purified Polyclonal Antibody (Catalog # BAF1172) or (B) isotype control antibody (Catalog # BAF108) followed by Streptavidin-Allophycocyanin (Catalog # F0050). View our protocol for Staining Membrane-associated Proteins.Applications for Mouse ALCAM/CD166 Antibody [Biotin]
Application
Recommended Usage
Flow Cytometry
0.25 µg/106 cells
Sample: Mouse splenocytes and human PBMC's
Sample: Mouse splenocytes and human PBMC's
Immunohistochemistry
5-15 µg/mL
Sample:
Sample:
Perfusion fixed frozen sections of mouse liver
Western Blot
0.1 µg/mL
Sample: Recombinant Mouse ALCAM/CD166 Fc Chimera (Catalog # 1172-AL)
Sample: Recombinant Mouse ALCAM/CD166 Fc Chimera (Catalog # 1172-AL)
Flow Cytometry Panel Builder
Bio-Techne Knows Flow Cytometry
Save time and reduce costly mistakes by quickly finding compatible reagents using the Panel Builder Tool.
Advanced Features
- Spectra Viewer - Custom analysis of spectra from multiple fluorochromes
- Spillover Popups - Visualize the spectra of individual fluorochromes
- Antigen Density Selector - Match fluorochrome brightness with antigen density
Formulation, Preparation, and Storage
Purification
Antigen Affinity-purified
Reconstitution
Reconstitute at 0.2 mg/mL in sterile PBS.
Loading...
Formulation
Lyophilized from a 0.2 μm filtered solution in PBS with BSA as a carrier protein.
Shipping
The product is shipped at ambient temperature. Upon receipt, store it immediately at the temperature recommended below.
Stability & Storage
Use a manual defrost freezer and avoid repeated freeze-thaw cycles.
- 12 months from date of receipt, -20 to -70 °C as supplied.
- 1 month, 2 to 8 °C under sterile conditions after reconstitution.
- 6 months, -20 to -70 °C under sterile conditions after reconstitution.
Calculators
Background: ALCAM/CD166
References
- Bowen, M.A. et al. (1995) J. Exp. Med. 181:2213.
- Aruffo, A. et al. (1997) Immunol. Today 18:498.
- Degen, W.G. et al. (1998) Am. J. Pathol. 152:805.
- Van Kempen, L. et al. (2001) J. Biol. Chem. 276:25783.
Long Name
Activated Leukocyte Cell Adhesion Molecule
Alternate Names
CD166
Gene Symbol
ALCAM
UniProt
Additional ALCAM/CD166 Products
Product Documents for Mouse ALCAM/CD166 Antibody [Biotin]
Certificate of Analysis
To download a Certificate of Analysis, please enter a lot or batch number in the search box below.
Note: Certificate of Analysis not available for kit components.
Product Specific Notices for Mouse ALCAM/CD166 Antibody [Biotin]
For research use only
