Mouse CXCL4/PF4 Quantikine ELISA Kit

Catalog # Availability Size / Price Qty
Mouse CXCL4/PF4 ELISA Standard Curve
2 Images
Product Details
Citations (8)
Supplemental Products

Mouse CXCL4/PF4 Quantikine ELISA Kit Summary

Assay Type
Solid Phase Sandwich ELISA
96-well strip plate
Assay Length
4.5 hours
Sample Type & Volume Required Per Well
Cell Culture Supernates (50 uL), Serum (10 uL), Platelet-poor EDTA Plasma (10 uL), Platelet-poor Heparin Plasma (10 uL)
0.01 ng/mL
Assay Range
0.1 - 5 ng/mL (Cell Culture Supernates, Serum, Platelet-poor EDTA Plasma, Platelet-poor Heparin Plasma)
Natural and recombinant mouse PF4
< 0.5% cross-reactivity observed with available related molecules.< 50% cross-species reactivity observed with species tested.
No significant interference observed with available related molecules.

Product Summary

The Quantikine Mouse PF4 Immunoassay is a 4.5 hour solid-phase ELISA designed to measure mouse PF4 in cell culture supernates, serum, and platelet-poor plasma. It contains E. coli-expressed recombinant mouse PF4 and antibodies raised against the recombinant factor. This immunoassay has been shown to quantitate the recombinant factor accurately. Results obtained using natural mouse PF4 showed dose-response curves that were parallel to the standard curves obtained using the recombinant kit standards. These results indicate that this kit can be used to determine relative mass values for natural mouse PF4.


Intra-Assay Precision (Precision within an assay) Three samples of known concentration were tested on one plate to assess intra-assay precision
Inter-Assay Precision (Precision between assays) Three samples of known concentration were tested in separate assays to assess inter-assay precision

Cell Culture Supernates

Intra-Assay Precision Inter-Assay Precision
Sample 1 2 3 1 2 3
n 20 20 20 20 20 20
Mean (pg/mL) 0.23 0.41 1.51 0.25 0.45 1.46
Standard Deviation 0.013 0.029 0.046 0.019 0.035 0.11
CV% 5.7 7.1 3 7.6 7.8 7.5


The recovery of mouse PF4 spiked to levels throughout the range of the assay in various matrices was evaluated.

Sample Type Average % Recovery Range %
Cell Culture Supernates (n=4) 102 90-120

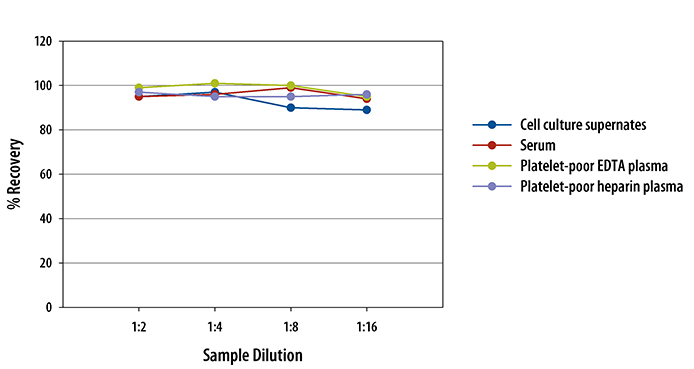

To assess the linearity of the assay, samples containing high concentrations of mouse PF4 were serially diluted with Calibrator Diluent to produce samples with values within the dynamic range of the assay.
Mouse CXCL4/PF4 ELISA Linearity

Scientific Data

Mouse CXCL4/PF4 ELISA Standard Curve

Product Datasheets

You must select a language.


Preparation and Storage

The product is shipped at ambient temperature. Upon receipt, store it immediately at the temperature recommended below.
Store the unopened product at 2 - 8 °C. Do not use past expiration date.

Background: CXCL4/PF4

CXCL4/PF4 is a secreted chemokine that is expressed by megakaryocytes and restrains the coagulation cascade. It is released by activated platelets and regulates Thrombin/Thrombomodulin complexes, activated Protein C (APC), Coagulation Factor Xa, and Fibrin. The anticoagulant heparin neutralizes CXCL4 procoagulant effects. Complexes of heparin and CXCL4 trigger antibody formation that causes the pathological syndrome HITT. Immunogenic complexes of CXCL4 with Apolipoprotein H contribute to antiphospholipid syndrome (APS). CXCL4 interferes with the proliferative and angiogenic functions of FGF-2 and VEGF. However, it can also exert proinflammatory and pro-atherogenic effects on monocytes, macrophages, and endothelial cells. CXCL4 may signal through CXCR3B in humans.

Entrez Gene IDs:
5196 (Human); 56744 (Mouse); 360918 (Rat)
Alternate Names:
chemokine (C-X-C motif) ligand 4; C-X-C motif chemokine 4; CXCL4; CXCL4iroplact; Iroplact; MGC138298; Oncostatin-A; PF4; PF-4; platelet factor 4; SCYB4oncostatin-A
&#9888; WARNING: This product can expose you to chemicals including N,N-Dimethylforamide, which is known to the State of California to cause cancer. For more information, go to

Assay Procedure

Refer to the product for complete assay procedure.

Bring all reagents and samples to room temperature before use. It is recommended that all samples, standards, and controls be assayed in duplicate.
  1.   Prepare all reagents, standard dilutions, and samples as directed in the product insert.
  2.   Remove excess microplate strips from the plate frame, return them to the foil pouch containing the desiccant pack, and reseal.

  3. 50 µL Assay Diluent
  4.   Add 50 µL of Assay Diluent to each well.

  5. 50 µL Standard, Control, or Sample
  6.   Add 50 µL of Standard, Control, or sample to each well. Cover with a plate sealer, and incubate at room temperature for 2 hours.
  7.   Aspirate each well and wash, repeating the process 4 times for a total of 5 washes.

  8. 100 µL Conjugate
  9.   Add 100 µL of Conjugate to each well. Cover with a new plate sealer, and incubate at room temperature for 2 hours.
  10.   Aspirate and wash 5 times.

  11. 100 µL Substrate Solution
  12.   Add 100 µL Substrate Solution to each well. Incubate at room temperature for 30 minutes. PROTECT FROM LIGHT.

  13. 100 µL Stop Solution
  14.   Add 100 µL of Stop Solution to each well. Read at 450 nm within 30 minutes. Set wavelength correction to 540 nm or 570 nm.
