Mouse CXCR5 Antibody (614641) [FITC]

R&D Systems | Catalog # FAB6198F

R&D Systems
Discontinued Product
FAB6198F has been discontinued. View all CXCR5 products.

Key Product Details

Species Reactivity

Mouse

Applications

Flow Cytometry

Label

FITC (Excitation = 488 nm, Emission = 515-545 nm)

Antibody Source

Monoclonal Rat IgG2A Clone # 614641
Loading...

Product Specifications

Immunogen

E. coli-derived recombinant mouse CXCR5
Met1-Pro57
Accession # Q04683

Specificity

Detects recombinant mouse (rm) CXCR5 in direct ELISAs. In this format, no cross-reactivity with rmCXCR7 is observed.

Clonality

Monoclonal

Host

Rat

Isotype

IgG2A

Scientific Data Images for Mouse CXCR5 Antibody (614641) [FITC]

Detection of CXCR5 antibody in Mouse Splenocytes antibody by Flow Cytometry.

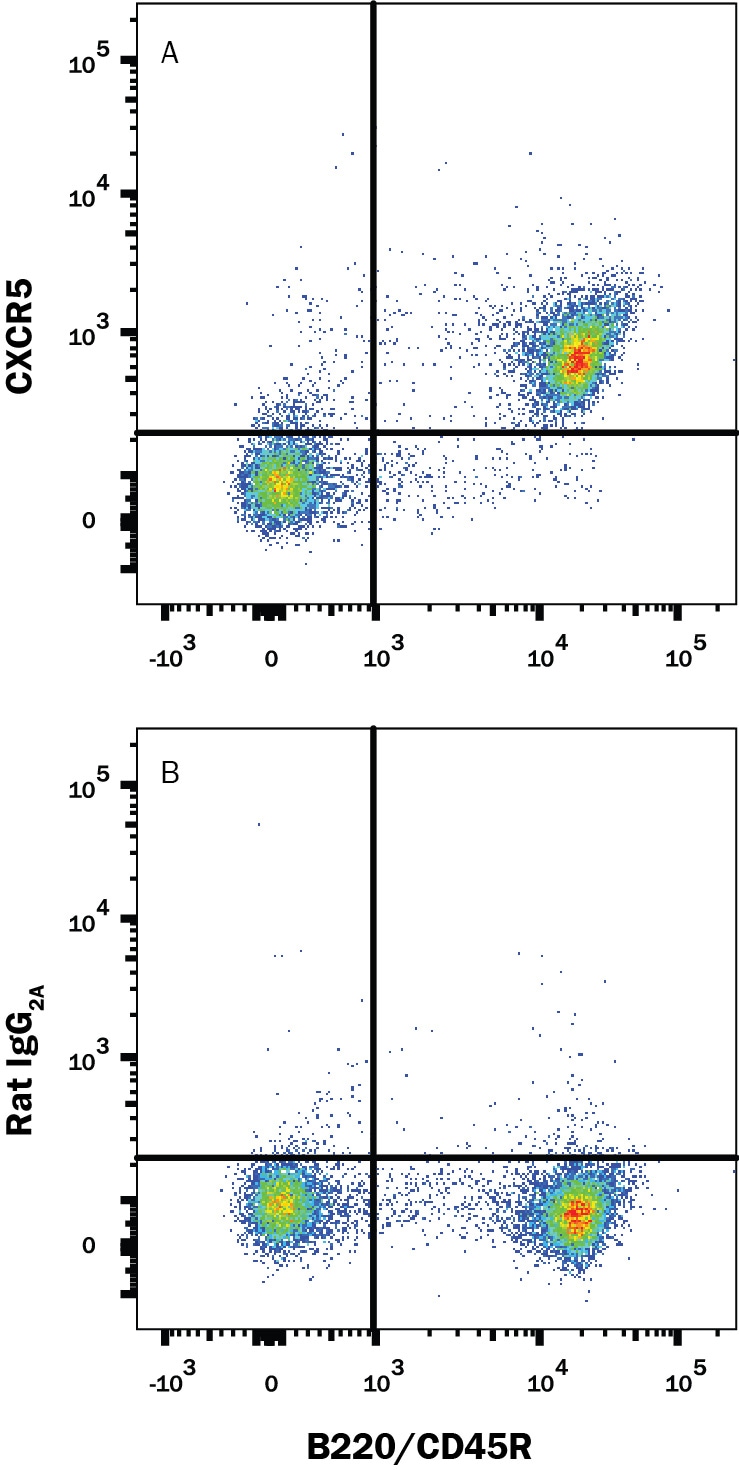

Detection of CXCR5 in Mouse Splenocytes by Flow Cytometry.

Mouse splenocytes were stained with Rat Anti-Mouse B220/CD45R APC-conjugated Monoclonal Antibody (Catalog # FAB1217A) and either (A) Rat Anti-Mouse CXCR5 Fluorescein-conjugated Monoclonal Antibody (Catalog # FAB6198F) or (B) Rat IgG2AFluorescein Isotype Control (Catalog # IC006F). View our protocol for Staining Membrane-associated Proteins.
Detection of CXCR5 antibody in Mouse T Follicular Helper Cells antibody by Flow Cytometry.

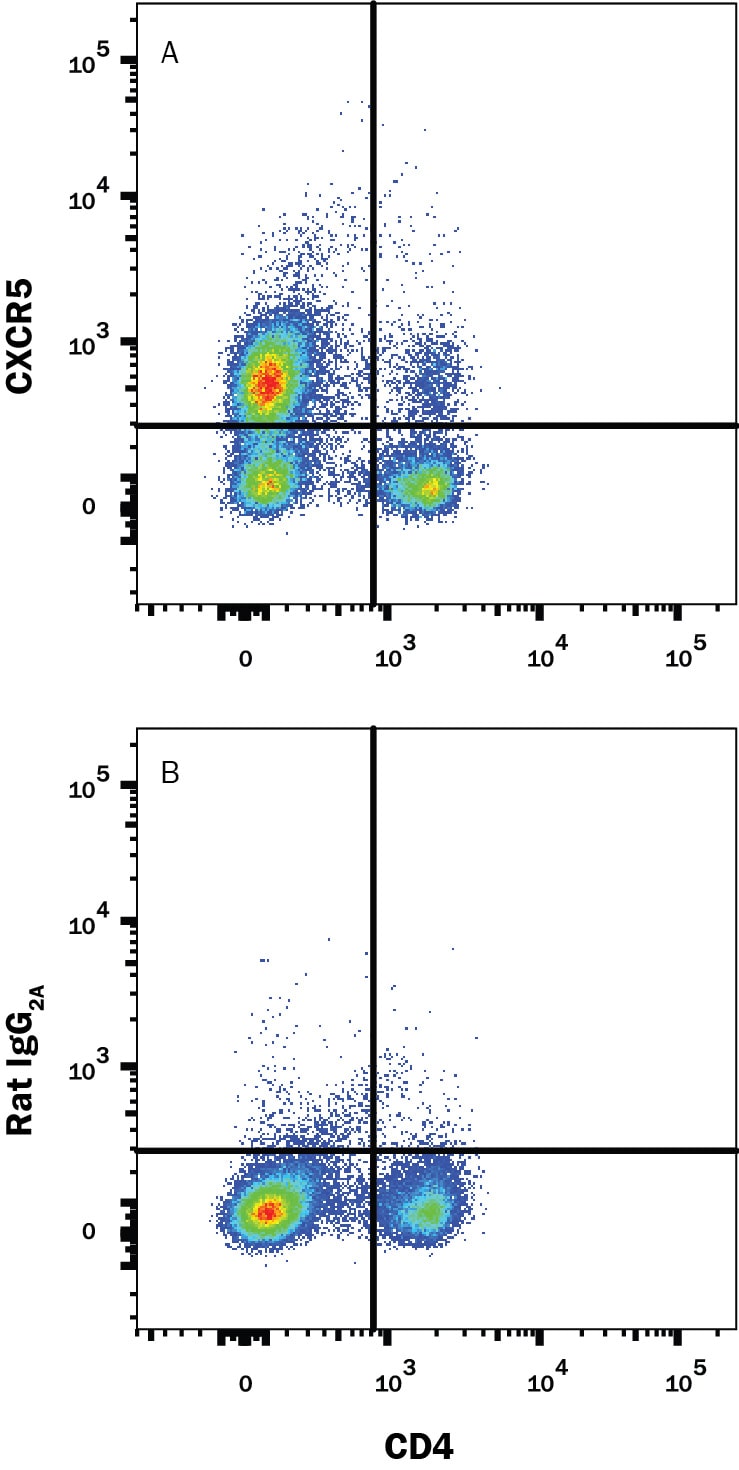

Detection of CXCR5 in Mouse T Follicular Helper Cells by Flow Cytometry.

Mouse T follicular helper cells from immunized Balb/c mice were stained with Rat Anti-Mouse CD4 Alexa Fluor® 405-conjugated Monoclonal Antibody (Catalog # FAB554V) and either (A) Rat Anti-Mouse CXCR5 Fluorescein-conjugated Monoclonal Antibody (Catalog # FAB6198F) or (B) Rat IgG2AFluorescein Isotype Control (Catalog # IC006F). View our protocol for Staining Membrane-associated Proteins.

Applications for Mouse CXCR5 Antibody (614641) [FITC]

Application
Recommended Usage

Flow Cytometry

10 µL/106 cells
Sample: Mouse splenocytes and Mouse T follicular helper cells

Spectra Viewer

Plan Your Experiments

Use our spectra viewer to interactively plan your experiments, assessing multiplexing options. View the excitation and emission spectra for our fluorescent dye range and other commonly used dyes.

Spectra Viewer

Flow Cytometry Panel Builder

Bio-Techne Knows Flow Cytometry

Save time and reduce costly mistakes by quickly finding compatible reagents using the Panel Builder Tool.

Advanced Features

  • Spectra Viewer - Custom analysis of spectra from multiple fluorochromes
  • Spillover Popups - Visualize the spectra of individual fluorochromes
  • Antigen Density Selector - Match fluorochrome brightness with antigen density
Build Your Panel Now

Formulation, Preparation, and Storage

Purification

Protein A or G purified from hybridoma culture supernatant

Formulation

Supplied in a saline solution containing BSA and Sodium Azide.

Shipping

The product is shipped with polar packs. Upon receipt, store it immediately at the temperature recommended below.

Stability & Storage

Protect from light. Do not freeze.
  • 12 months from date of receipt, 2 to 8 °C as supplied.

Background: CXCR5

CXCR5 (CXC chemokine receptor 5; also BLR-1, NLR and CD185) is a 55-60 kDa member of the G-protein coupled receptor 1 family. It is expressed on select cell types, including granule and Purkinje cell neurons, embryonic CD4+ CD3- IL-7R alpha + precursor cells, B cells and follicular T helper cells. CXCR5 selectively binds BLC/CXCL13. This appears to both promote embryonic lymph node development and, in the adult, direct expressing cells to positions that optimize antigen presentation and antibody production. Mouse CXCR5 is a 7-transmembrane glycoprotein that is 374 amino acids (aa) in length. It contains a 57 aa N-terminal extracellular region plus a 47 aa C-terminal cytoplasmic domain. Over aa 1-57, mouse CXCR5 shares 84% and 47% aa identity with rat and human CXCR5, respectively.

Alternate Names

BLR1, CD185, CXCR5

Entrez Gene IDs

643 (Human); 12145 (Mouse); 29363 (Rat)

Gene Symbol

CXCR5

UniProt

Additional CXCR5 Products

Product Documents for Mouse CXCR5 Antibody (614641) [FITC]

Certificate of Analysis

To download a Certificate of Analysis, please enter a lot or batch number in the search box below.

Note: Certificate of Analysis not available for kit components.

Product Specific Notices for Mouse CXCR5 Antibody (614641) [FITC]

For research use only

Customer Reviews for Mouse CXCR5 Antibody (614641) [FITC]

There are currently no reviews for this product. Be the first to review Mouse CXCR5 Antibody (614641) [FITC] and earn rewards!

Have you used Mouse CXCR5 Antibody (614641) [FITC]?

Submit a review and receive an Amazon gift card!

$25/€18/£15/$25CAN/¥2500 Yen for a review with an image

$10/€7/£6/$10CAN/¥1110 Yen for a review without an image

Submit a review
Amazon Gift Card

FAQs

No product specific FAQs exist for this product.

View all FAQs for Antibodies
