NDUFS2 Antibody (PSH03-26)
Novus Biologicals | Catalog # NBP3-32639
Recombinant Monoclonal Antibody
Loading...
Key Product Details
Species Reactivity
Human, Mouse, Rat
Applications
Immunohistochemistry, Immunohistochemistry-Paraffin, Western Blot, Flow Cytometry, Immunocytochemistry/ Immunofluorescence, Immunoprecipitation
Label
Unconjugated
Antibody Source
Recombinant Monoclonal Rabbit IgG Clone # PSH03-26 expressed in HEK293
Loading...
Product Specifications
Immunogen
Recombinant protein within human NDUFS2 aa 1-463 / 463. (Uniprot: O75306)
Localization
Mitochondrion inner membrane.
Clonality
Monoclonal
Host
Rabbit
Isotype
IgG
Theoretical MW
53 kDa.
Disclaimer note: The observed molecular weight of the protein may vary from the listed predicted molecular weight due to post translational modifications, post translation cleavages, relative charges, and other experimental factors.
Disclaimer note: The observed molecular weight of the protein may vary from the listed predicted molecular weight due to post translational modifications, post translation cleavages, relative charges, and other experimental factors.
Scientific Data Images for NDUFS2 Antibody (PSH03-26)
Immunoprecipitation: NDUFS2 Antibody (PSH03-26) [NBP3-32639]
Immunoprecipitation: NDUFS2 Antibody (PSH03-26) [NBP3-32639] - NDUFS2 was immunoprecipitated in 0.2mg HeLa cell lysate with NBP3-32639 at 2 ug/25 ul agarose. Western blot was performed from the immunoprecipitate using NBP3-32639 at 1/2,000 dilution. Anti-Rabbit IgG for IP Nano-secondary antibody at 1/5,000 dilution was used for 1 hour at room temperature.Lane 1: HeLa cell lysate (input)
Lane 2: NBP3-32639 IP in HeLa cell lysate
Lane 3: Rabbit IgG instead of NBP3-32639 in HeLa cell lysate
Blocking/Dilution buffer: 5% NFDM/TBST
Exposure time: 43 seconds
Western Blot: NDUFS2 Antibody (PSH03-26) [NBP3-32639]

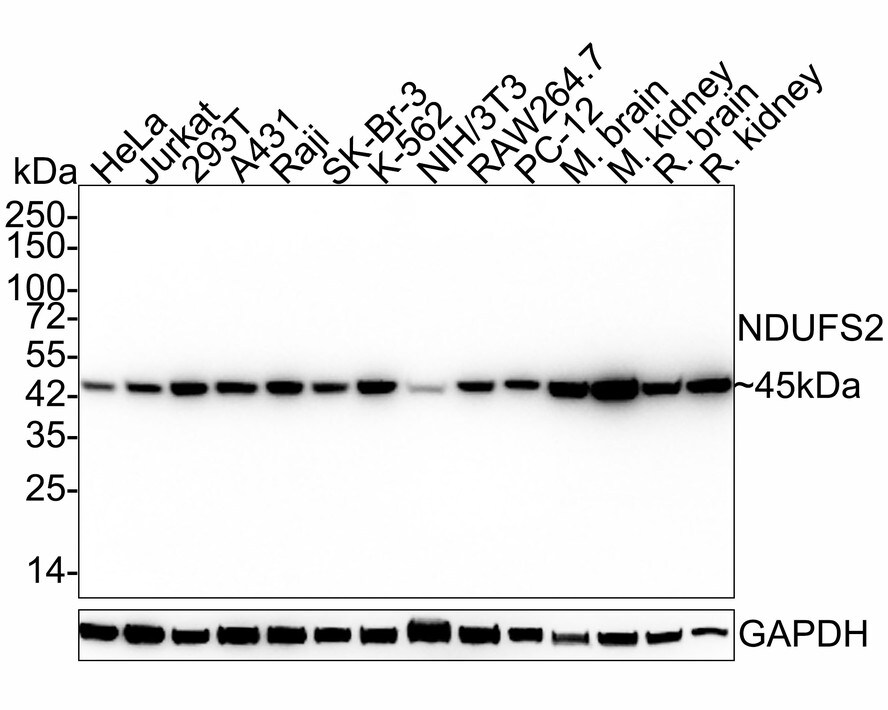

Western Blot: NDUFS2 Antibody (PSH03-26) [NBP3-32639] - Western blot analysis of NDUFS2 on different lysates with Rabbit anti-NDUFS2 antibody (NBP3-32639) at 1/2,000 dilution.Lane 1: HeLa cell lysate (20 ug/Lane)
Lane 2: Jurkat cell lysate (20 ug/Lane)
Lane 3: 293T cell lysate (20 ug/Lane)
Lane 4: A431 cell lysate (20 ug/Lane)
Lane 5: Raji cell lysate (20 ug/Lane)
Lane 6: SK-Br-3 cell lysate (20 ug/Lane)
Lane 7: K-562 cell lysate (20 ug/Lane)
Lane 8: NIH/3T3 cell lysate (20 ug/Lane)
Lane 9: RAW264.7 cell lysate (20 ug/Lane)
Lane 10: PC-12 cell lysate (20 ug/Lane)
Lane 11: Mouse brain tissue lysate (40 ug/Lane)
Lane 12: Mouse kidney tissue lysate (40 ug/Lane)
Lane 13: Rat brain tissue lysate (40 ug/Lane)
Lane 14: Rat kidney tissue lysate (40 ug/Lane)
Predicted band size: 53 kDa
Observed band size: 45 kDa
Exposure time: 24 seconds;
4-20% SDS-PAGE gel.
Proteins were transferred to a PVDF membrane and blocked with 5% NFDM/TBST for 1 hour at room temperature. The primary antibody (NBP3-32639) at 1/2,000 dilution was used in 5% NFDM/TBST at 4 overnight. Goat Anti-Rabbit IgG - HRP Secondary Antibody at 1/50,000 dilution was used for 1 hour at room temperature.
Immunohistochemistry: NDUFS2 Antibody (PSH03-26) [NBP3-32639]

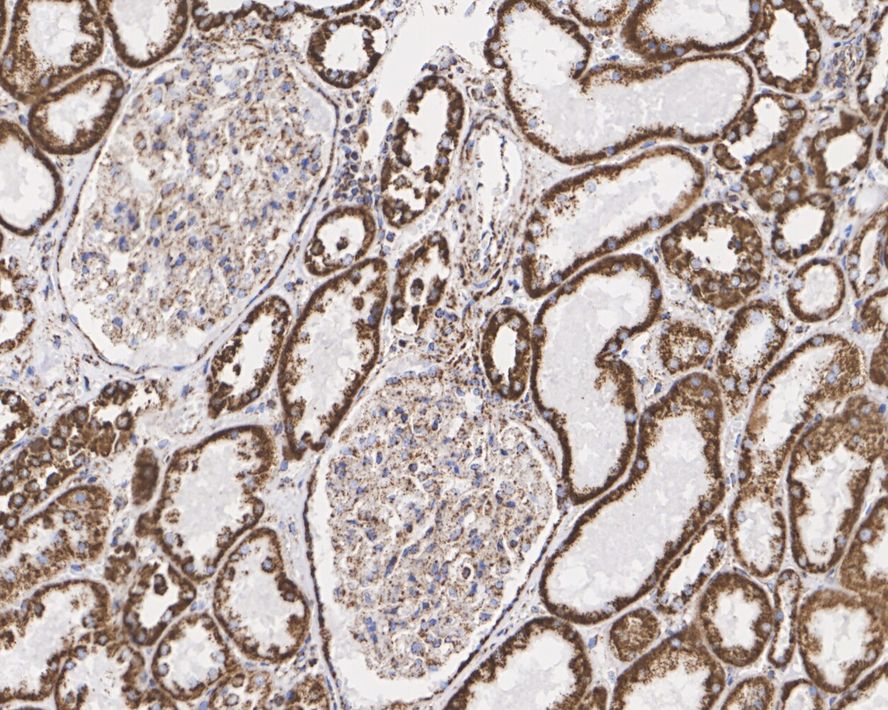

Immunohistochemistry: NDUFS2 Antibody (PSH03-26) [NBP3-32639] - Immunohistochemical analysis of paraffin-embedded human kidney tissue with Rabbit anti-NDUFS2 antibody (NBP3-32639) at 1/1,000 dilution.The section was pre-treated using heat mediated antigen retrieval with Tris-EDTA buffer (pH 9.0) for 20 minutes. The tissues were blocked in 1% BSA for 20 minutes at room temperature, washed with ddH2O and PBS, and then probed with the primary antibody (NBP3-32639) at 1/1,000 dilution for 1 hour at room temperature. The detection was performed using an HRP conjugated compact polymer system. DAB was used as the chromogen. Tissues were counterstained with hematoxylin and mounted with DPX.
Immunocytochemistry/ Immunofluorescence: NDUFS2 Antibody (PSH03-26) [NBP3-32639]

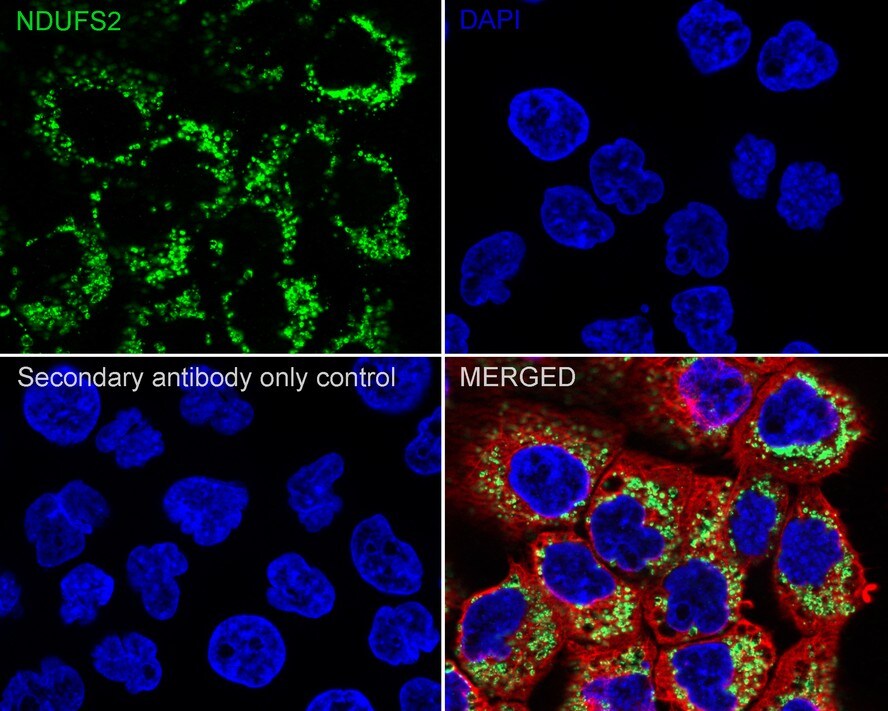

Immunocytochemistry/ Immunofluorescence: NDUFS2 Antibody (PSH03-26) [NBP3-32639] - Immunocytochemistry analysis of A431 cells labeling NDUFS2 with Rabbit anti-NDUFS2 antibody (NBP3-32639) at 1/100 dilution.Cells were fixed in 4% paraformaldehyde for 20 minutes at room temperature, permeabilized with 0.1% Triton X-100 in PBS for 5 minutes at room temperature, then blocked with 1% BSA in 10% negative goat serum for 1 hour at room temperature. Cells were then incubated with Rabbit anti-NDUFS2 antibody (NBP3-32639) at 1/100 dilution in 1% BSA in PBST overnight at 4 ℃. Goat Anti-Rabbit IgG H&L (iFluor™ 488) was used as the secondary antibody at 1/1,000 dilution. PBS instead of the primary antibody was used as the secondary antibody only control. Nuclear DNA was labelled in blue with DAPI.
Beta tubulin (red) was stained at 1/100 dilution overnight at +4℃. Goat Anti-Mouse IgG H&L (iFluor™ 594) was used as the secondary antibody at 1/1,000 dilution.
Flow Cytometry: NDUFS2 Antibody (PSH03-26) [NBP3-32639]

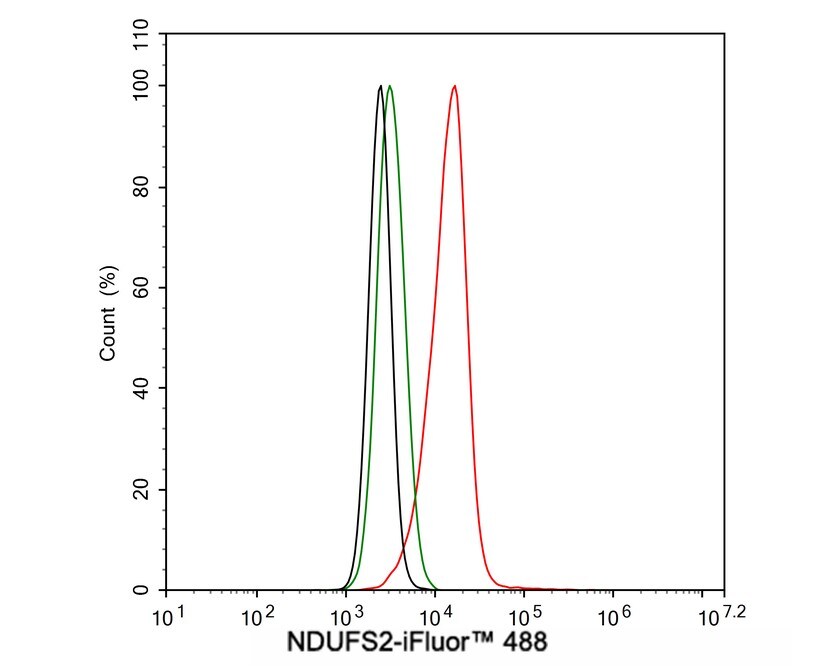

Flow Cytometry: NDUFS2 Antibody (PSH03-26) [NBP3-32639] - Flow cytometric analysis of A431 cells labeling NDUFS2.Cells were fixed and permeabilized. Then stained with the primary antibody (NBP3-32639, 1μg/mL) (red) compared with Rabbit IgG Isotype Control (green). After incubation of the primary antibody at +4℃ for an hour, the cells were stained with a iFluor™ 488 conjugate-Goat anti-Rabbit IgG Secondary antibody at 1/1,000 dilution for 30 minutes at +4℃. Unlabelled sample was used as a control (cells without incubation with primary antibody; black).
Applications for NDUFS2 Antibody (PSH03-26)
Application
Recommended Usage
Flow Cytometry
1:1000
Immunocytochemistry/ Immunofluorescence
1:100
Immunohistochemistry-Paraffin
1:1000
Immunoprecipitation
1-2ug/sample
Western Blot
1:2000
Flow Cytometry Panel Builder
Bio-Techne Knows Flow Cytometry
Save time and reduce costly mistakes by quickly finding compatible reagents using the Panel Builder Tool.
Advanced Features
- Spectra Viewer - Custom analysis of spectra from multiple fluorochromes
- Spillover Popups - Visualize the spectra of individual fluorochromes
- Antigen Density Selector - Match fluorochrome brightness with antigen density
Formulation, Preparation, and Storage
Purification
Protein A purified
Formulation
PBS (pH7.4), 0.1% BSA and 40% Glycerol
Preservative
0.05% Sodium Azide
Concentration
1 mg/ml
Shipping
The product is shipped with polar packs. Upon receipt, store it immediately at the temperature recommended below.
Stability & Storage
Store at 4C short term. Aliquot and store at -20C long term. Avoid freeze-thaw cycles.
Background: NDUFS2
Alternate Names
CI-49, CI-49kD, complex 1, mitochondrial respiratory chain, 49-KD subunit, complex I 49kDa subunit, Complex I-49kD, EC 1.6.5.3, EC 1.6.99.3, EC 1.6.99.5, NADH dehydrogenase (ubiquinone) Fe-S protein 2 (49kD) (NADH-coenzyme Qreductase), NADH dehydrogenase (ubiquinone) Fe-S protein 2, 49kDa (NADH-coenzyme Qreductase), NADH dehydrogenase [ubiquinone] iron-sulfur protein 2, mitochondrial, NADH-ubiquinone oxidoreductase 49 kDa subunit, NADH-ubiquinone oxidoreductase NDUFS2 subunit
Gene Symbol
NDUFS2
Additional NDUFS2 Products
Product Documents for NDUFS2 Antibody (PSH03-26)
Certificate of Analysis
To download a Certificate of Analysis, please enter a lot or batch number in the search box below.
Product Specific Notices for NDUFS2 Antibody (PSH03-26)
This product is for research use only and is not approved for use in humans or in clinical diagnosis. Primary Antibodies are guaranteed for 1 year from date of receipt.
Customer Reviews for NDUFS2 Antibody (PSH03-26)
There are currently no reviews for this product. Be the first to review NDUFS2 Antibody (PSH03-26) and earn rewards!
Have you used NDUFS2 Antibody (PSH03-26)?
Submit a review and receive an Amazon gift card!
$25/€18/£15/$25CAN/¥2500 Yen for a review with an image
$10/€7/£6/$10CAN/¥1110 Yen for a review without an image
Submit a review
