Scientific images may be resized, cropped, or adjusted for brightness or contrast for presentation purposes. These updates are limited to presentation and do not affect the underlying scientific interpretation of the data. Where available, additional source data may be provided upon request.
Key Product Details
Species Reactivity
Human, Mouse, Rat
Applications
Immunohistochemistry, Western Blot
Label
Unconjugated
Antibody Source
Monoclonal Mouse IgG1 Clone # OTI5D1
Loading...
Product Specifications
Immunogen
Full length human recombinant protein of human PMP22 (NP_000295) produced in HEK293T cell.
Clonality
Monoclonal
Host
Mouse
Isotype
IgG1
Scientific Data Images for PMP22 Antibody (OTI5D1)
Immunohistochemistry:PMP22 Antibody (OTI5D1)[NBP3-44912]
Immunohistochemistry:PMP22 Antibody (OTI5D1)[NBP3-44912]
Immunohistochemistry:PMP22 Antibody (OTI5D1)[NBP3-44912]
Immunohistochemistry:PMP22 Antibody (OTI5D1)[NBP3-44912]
Immunohistochemistry:PMP22 Antibody (OTI5D1)[NBP3-44912]
Immunohistochemistry:PMP22 Antibody (OTI5D1)[NBP3-44912]

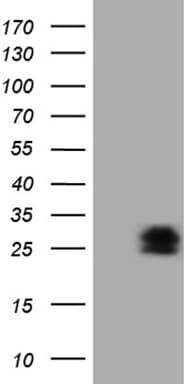

Western Blot:PMP22 Antibody (OTI5D1)[NBP3-44912]
Western Blot:PMP22 Antibody (OTI5D1)[NBP3-44912]![PMP22 Antibody (OTI5D1) Immunohistochemistry;PMP22 Antibody (OTI5D1)[NBP3-44912]-](https://resources.rndsystems.com/images/products/nbp3-44912_mouse-pmp22-mab-oti5d1-immunohistochemistry-75202622494517.jpg "Immunohistochemistry;PMP22 Antibody (OTI5D1)[NBP3-44912]-")
Immunohistochemistry;PMP22 Antibody (OTI5D1)[NBP3-44912]-
Immunohistochemical staining of paraffin-embedded Carcinoma of Human lung tissue using anti-PMP22 mouse monoclonal antibody. Heat-induced epitope retrieval by EDTA solution buffer pH 8.0 at 120°C for 3 min.![PMP22 Antibody (OTI5D1) Immunohistochemistry;PMP22 Antibody (OTI5D1)[NBP3-44912]-](https://resources.rndsystems.com/images/products/nbp3-44912_mouse-pmp22-mab-oti5d1-immunohistochemistry-7520262371915.jpg "Immunohistochemistry;PMP22 Antibody (OTI5D1)[NBP3-44912]-")
Immunohistochemistry;PMP22 Antibody (OTI5D1)[NBP3-44912]-
Immunohistochemical staining of paraffin-embedded Carcinoma of Human liver tissue using anti-PMP22 mouse monoclonal antibody. Heat-induced epitope retrieval by EDTA solution buffer pH 8.0 at 120°C for 3 min.![PMP22 Antibody (OTI5D1) Immunohistochemistry;PMP22 Antibody (OTI5D1)[NBP3-44912]-](https://resources.rndsystems.com/images/products/nbp3-44912_mouse-pmp22-mab-oti5d1-immunohistochemistry-7520262247118.jpg "Immunohistochemistry;PMP22 Antibody (OTI5D1)[NBP3-44912]-")
Immunohistochemistry;PMP22 Antibody (OTI5D1)[NBP3-44912]-
Immunohistochemical staining of paraffin-embedded Human liver tissue within the normal limits using anti-PMP22 mouse monoclonal antibody.This figure shows negative staining. Heat-induced epitope retrieval by EDTA solution buffer pH 8.0 at 120°C for 3 min.Applications for PMP22 Antibody (OTI5D1)
Application
Recommended Usage
Immunohistochemistry
1:2000
Western Blot
1:500
Formulation, Preparation, and Storage
Purification
>95%
Formulation
PBS (pH 7.3) 1% BSA, 50% glycerol
Preservative
0.02% Sodium Azide
Concentration
Please see the vial label for concentration. If unlisted please contact technical services.
Shipping
The product is shipped with polar packs. Upon receipt, store it immediately at the temperature recommended below.
Stability & Storage
Store at -20 degrees C. Avoid freeze/thaw cycles.
Background: PMP22
Alternate Names
CMT1A, CMT1E, GAS3, GAS-3DSS, growth arrest-specific 3, Growth arrest-specific protein 3, HMSNIA, HNPP, MGC20769, peripheral myelin protein 22, PMP-22, Sp110
Gene Symbol
PMP22
Additional PMP22 Products
Product Documents for PMP22 Antibody (OTI5D1)
Certificate of Analysis
To download a Certificate of Analysis, please enter a lot or batch number in the search box below.
Product Specific Notices for PMP22 Antibody (OTI5D1)
This product is for research use only and is not approved for use in humans or in clinical diagnosis. Primary Antibodies are guaranteed for 1 year from date of receipt.
