GMP

Recombinant Human IL-10 GMP Protein, CF

Name: Recombinant Human IL-10 GMP Protein, CF
Brand: R&D Systems
SKU: 1064-GMP
Price: 1522 USD
Availability: InStock

R&D Systems | Catalog # 1064-GMP

Submit a review

Product Documents

Animal Free

100% Guarantee

Product Specifications
Scientific Data
Preparation & Storage
Calculators
Background
Product Documents
Manufacturing Specifications
Specific Notices
Research Areas

Key Product Details

IL-10 Manufactured in Bio-Techne's new GMP facility
Lot-to-lot consistency
Stringent guidelines for patient safety
Scalability necessary to support successful therapeutics
Learn more about manufacturing in our new GMP facility
Test it in your process! Request a sample of GMP IL-10
A DMF is on file for this protein

Source

E. coli

Accession Number

P22301.1

Structure / Form

Noncovalently-linked homodimer

Applications

Bioactivity

View all IL-10 Proteins and Enzymes »

Product Specifications

Source

E. coli-derived human IL-10 protein
Ser19-Asn178, with an N-terminal Met
Produced using non-animal reagents in an animal-free laboratory.
Manufactured and tested under cGMP guidelines.

Purity

>97%, by SDS-PAGE with quantitative densitometry by Coomassie® Blue Staining. The molecular weight by mass spectrometry is 18762 Da ± 20 Da.

Endotoxin Level

<0.10 EU per 1 μg of the protein by the LAL method.

N-terminal Sequence Analysis

Met-Ser19-Pro-Gly-Gln-Gly-Thr-Gln-Ser-Glu

Predicted Molecular Mass

19 kDa

SDS-PAGE

18 kDa, reducing conditions

Activity

Measured in a cell proliferation assay using MC/9‑2 mouse mast cells. Thompson-Snipes, L. et al. (1991) J. Exp. Med. 173:507.
The ED₅₀ for this effect is 0.0750-0.750 ng/mL.

The specific activity of recombinant human IL-10 is >2.50 x 10⁶ units/mg, which is calibrated against the human IL-10 WHO Reference Reagent (NIBSC code: 93/722).

Host Cell Protein

<0.500 ng per μg of protein when tested by ELISA.

Mycoplasma

Negative for Mycoplasma.

Host Cell DNA

<0.00150 ng per µg of protein when tested by PCR.

Scientific Data Images for Recombinant Human IL-10 GMP Protein, CF

GMP-grade Recombinant Human IL-10 Protein Bioactivity

GMP-grade Recombinant Human IL-10 GMP Protein (Catalog # 1064-GMP) was measured in a cell proliferation assay using MC/9-2 mouse mast cells. The ED₅₀ for this effect is 0.0750-0.750 ng/mL. Three independent lots were tested for activity and plotted on the same graph to show lot-to-lot consistency of GMP IL-10.

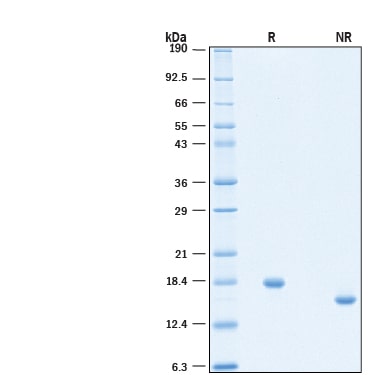

GMP-grade Recombinant Human IL-10 Protein SDS-Page

2 μg/lane of GMP-grade Recombinant Human IL-10 Protein (1064-GMP) was resolved with SDS-PAGE under reducing (R) and non-reducing (NR) conditions and visualized by Coomassie® Blue staining, showing bands at 18 kDa and 16 kDa, respectively.

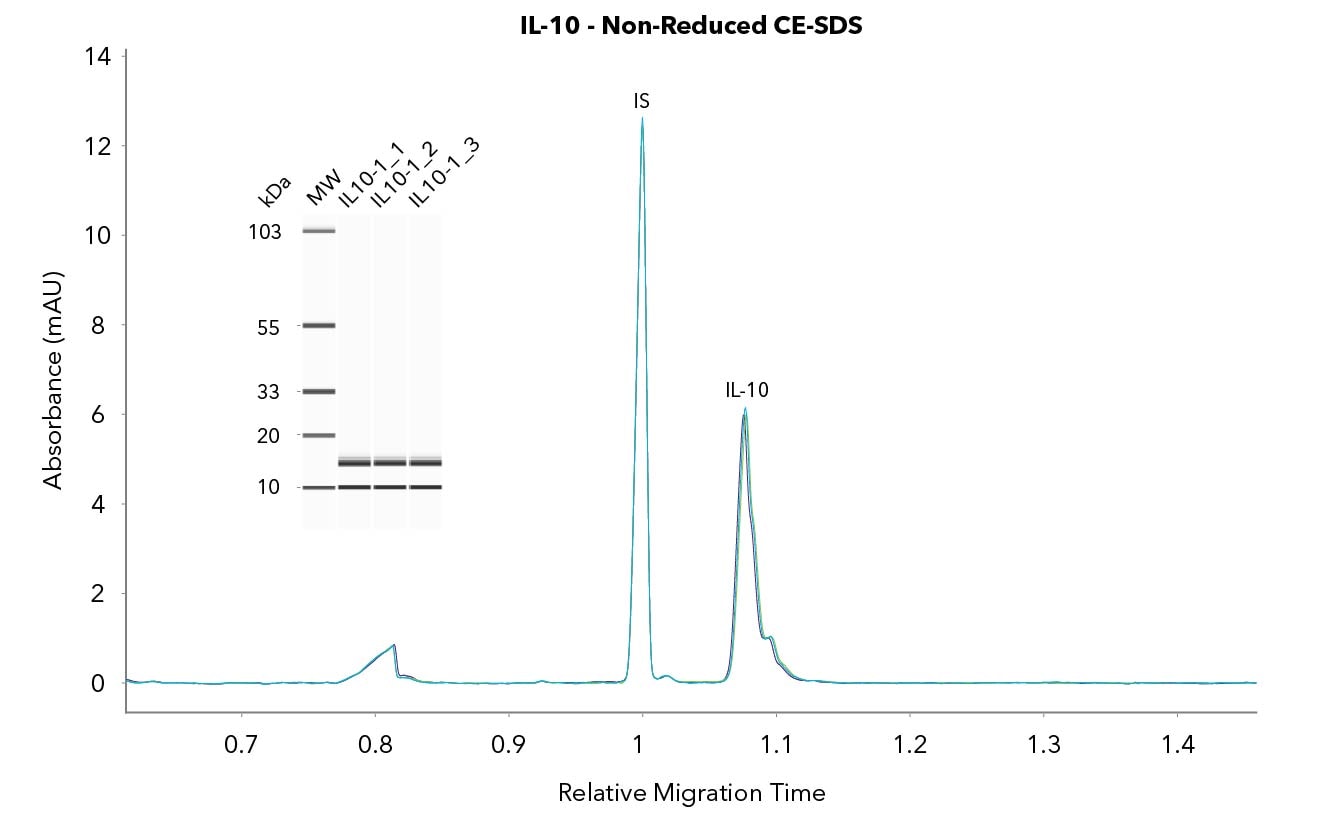

Recombinant Human IL-10 GMP Protein Purity Analysis by Size Separation.

Three independent lots of Recombinant Human IL-10 GMP Protein (Catalog # 1064-GMP) were analyzed by Maurice CE-SDS PLUS (IS is an Internal Standard). A gel-like representation of the purity analysis data (inset) can be obtained from the Lane View feature in Compass software for iCE. Profiles from the three runs were superimposed, showing excellent manufacturing consistency.

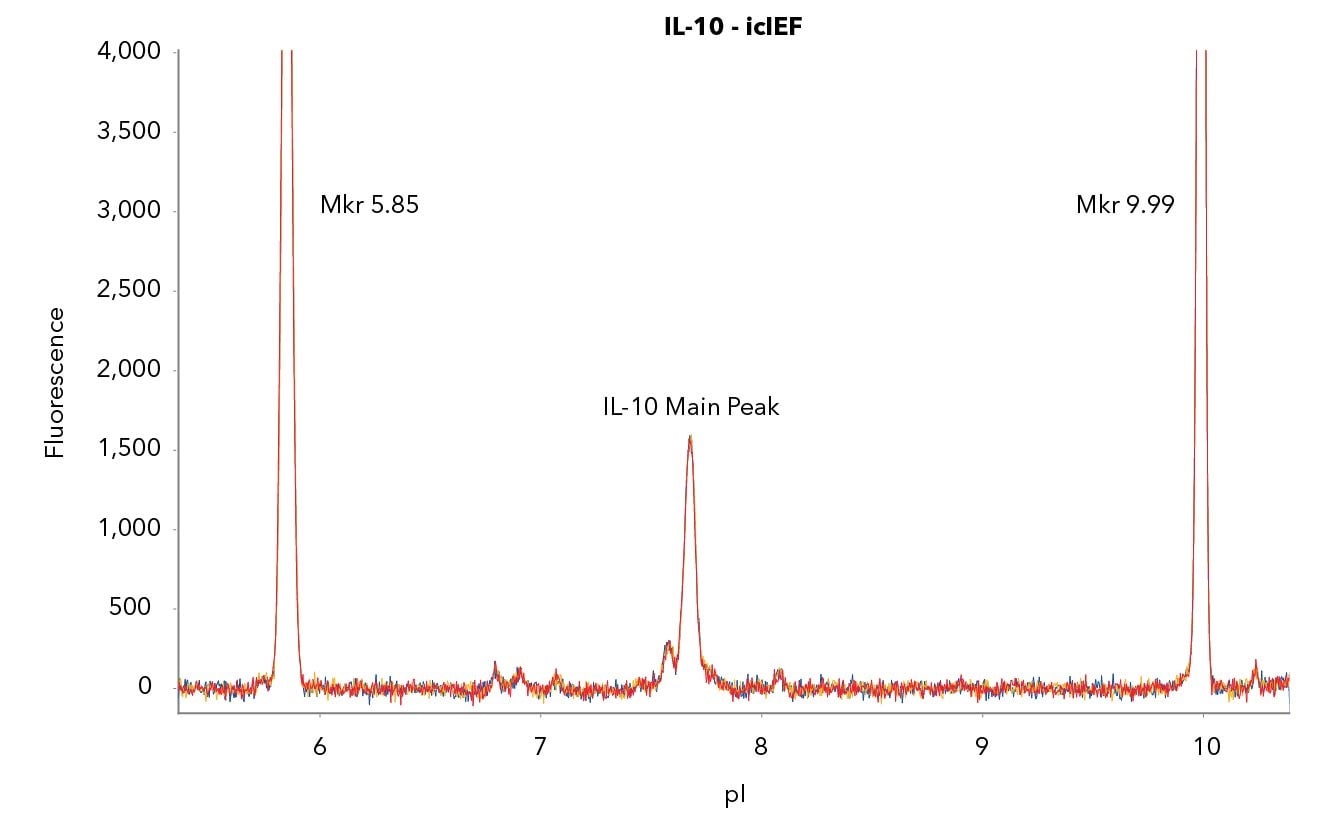

Recombinant Human IL-10 GMP Protein Purity Analysis by Charge Variation.

Three independent lots of Recombinant Human IL-10 GMP Protein (Catalog # 1064-GMP) were analyzed by Maurice icIEF using native fluorescence detection (Mkr 5.85 and 9.99 are pI Markers). Profiles from the three runs were superimposed, showing excellent manufacturing consistency.

View 1 more images

Formulation, Preparation, and Storage

1064-GMP

Formulation	Lyophilized from a 0.2 μm filtered solution in PBS with Trehalose.
Reconstitution	Reconstitute at 100-500 μg/mL in PBS.
Shipping	The product is shipped with polar packs. Upon receipt, store it immediately at the temperature recommended below.
Stability & Storage	Use a manual defrost freezer and avoid repeated freeze-thaw cycles. A minimum of 12 months when stored at ≤ -20 °C as supplied. Refer to lot specific COA for the Use by Date. 1 month, 2 to 8 °C under sterile conditions after reconstitution. 3 months, ≤ -20 °C under sterile conditions after reconstitution.

Calculators

The reconstitution calculator allows you to quickly calculate the volume of a reagent to reconstitute your vial. Simply enter the mass of reagent and the target concentration and the calculator will determine the rest.

Volume (to add to vial)

Mass (in vial)

Desired Reconstitution Concentration

Background: IL-10

Interleukin 10, also known as cytokine synthesis inhibitory factor (CSIF), is the charter member of the IL‑10 family of alpha ‑helical cytokines that also includes IL‑19, IL‑20, IL‑22, IL‑24, and IL‑26/AK155 (1, 2). IL‑10 is secreted by many activated hematopoietic cell types as well as hepatic stellate cells, keratinocytes, and placental cytotrophoblasts (2 ‑ 5). Mature human IL‑10 shares 72% ‑ 86% amino acid sequence identity with bovine, canine, equine, feline, mouse, ovine, porcine, and rat IL‑10. Whereas human IL‑10 is active on mouse cells, mouse IL‑10 does not act on human cells (6, 7). IL‑10 is a 178 amino acid molecule that contains two intrachain disulfide bridges and is expressed as a 36 kDa noncovalently associated homodimer (6, 8, 9). The IL‑10 dimer binds to two IL‑10 R alpha /IL‑10 R1 chains, resulting in recruitment of two IL‑10 R beta /IL‑10 R2 chains and activation of a signaling cascade involving JAK1, TYK2, and STAT3 (10). IL‑10 R beta does not bind IL‑10 by itself but is required for signal transduction (1). IL‑10 R beta also associates with IL‑20 R alpha, IL‑22 R alpha, or IL‑28 R alpha to form the receptor complexes for IL‑22, IL‑26, IL‑28, and IL‑29 (11 ‑ 13). IL‑10 is a critical molecule in the control of viral infections and allergic and autoimmune inflammation (14 ‑ 16). It promotes phagocytic uptake and Th2 responses but suppresses antigen presentation and Th1 proinflammatory responses (2).

References

Pestka, S. et al. (2004) Annu. Rev. Immunol. 22:929.
Sabat, R. et al. (2010) Cytokine Growth Factor Rev. 21:331.
Mathurin, P. et al. (2002) Am. J. Physiol. Gastrointest. Liver Physiol. 282:G981.
Grewe, M. et al. (1995) J. Invest. Dermatol. 104:3.
Szony, B.J. et al. (1999) Mol. Hum. Reprod. 5:1059.
Vieira, P. et al. (1991) Proc. Natl. Acad. Sci. 88:1172.
Hsu, D.-H. et al. (1990) Science 250:830.
Windsor, W.T. et al. (1993) Biochemistry 32:8807.
Syto, R. et al. (1998) Biochemistry 37:16943.
Kotenko, S.V. et al. (1997) EMBO J. 16:5894.
Kotenko, S.V. et al. (2000) J. Biol. Chem. 276:2725.
Hor, S. et al. (2004) J. Biol. Chem. 279:33343.
Sheppard, P. et al. (2003) Nat. Immunol. 4:63.
Fitzgerald, D.C. et al. (2007) Nat. Immunol. 8:1372.
Wu, K. et al. (2007) Cell. Mol. Immunol. 4:269.
Blackburn, S.D. and E.J. Wherry (2007)Trends Microbiol. 15:143.

Long Name

Interleukin 10

Alternate Names

CSIF, GVHDS, IL10, IL10A, TGIF

Entrez Gene IDs

3586 (Human); 16153 (Mouse); 25325 (Rat); 397106 (Porcine); 403628 (Canine); 102133450 (Cynomolgus Monkey); 100034187 (Equine); 493683 (Feline); 100715618 (Guinea Pig); 2949786 (Viral)

Gene Symbol

IL10

UniProt

P22301.1

Additional IL-10 Products

Product Documents for Recombinant Human IL-10 GMP Protein, CF

Download Product Datasheets

Certificate of Analysis

To download a Certificate of Analysis, please enter a lot or batch number in the search box below.

Note: Certificate of Analysis not available for kit components.

Download SDS

Manufacturing Specifications

GMP Proteins
R&D Systems, a Bio-Techne Brand's GMP proteins are produced according to relevant sections of the following documents: USP Chapter 1043, Ancillary Materials for Cell, Gene and Tissue-Engineered Products and Eu. Ph. 5.2.12, Raw Materials of Biological Origin for the Production of Cell-based and Gene Therapy Medicinal Products.

R&D Systems' quality focus includes:

Designed, manufactured and tested under an ISO 9001:2015 and ISO 13485:2016 certified quality system
Documented and controlled manufacturing process
Control of documentation and process changes by QA
Personnel training programs
Raw material inspection and vendor qualification/monitoring program
Validated equipment, processes and test methods
Equipment calibration and maintenance schedules using a Regulatory Asset Manager
Facility/Utilities maintenance, contamination controls, safety and pest control programs
Material review process for variances
Robust product stability program following relevant ICH guidelines

R&D Systems strives to provide our customers with the analytical characteristics of each product so that customers may determine whether our products are appropriate for their application. Each product is provided with a lot-specific Certificate of Analysis that contains the product's specifications and test results. Quality control testing may include, but is not limited to:

N-terminal amino acid analysis
SDS-PAGE purity analysis
Molecular weight analysis via mass spectrometry
Endotoxin assessment per USP <85> and Ph. Eur. 2.6.14 guidelines
Bioassay analysis
Microbial testing per USP <71> and Ph. Eur. 2.6.1 guidelines
Host cell protein assessment
Host cell DNA assessment
Mycoplasma assessment

Additional testing and documentation requested by the customer can be arranged at an additional cost.

Production records and facilities are available for examination by appropriate personnel on-site at R&D Systems in Minneapolis and St. Paul, Minnesota USA.

R&D Systems sells GMP grade products for preclinical or clinical ex vivo use. They are not for in vivo use. Please read the following End User Terms prior to using this product.

Animal-Free Manufacturing Conditions
Our dedicated controlled-access animal-free laboratories ensure that at no point in production are the products exposed to potential contamination by animal components or byproducts. Every stage of manufacturing is conducted in compliance with R&D Systems' stringent Standard Operating Procedures (SOPs). Production and purification procedures use equipment and media that are confirmed animal-free.
