Recombinant Mouse SIRP beta 1a His-tag Protein, CF

R&D Systems | Catalog # 10289-SB

R&D Systems
100% Guarantee

Key Product Details

  • R&D Systems NS0-derived Recombinant Mouse SIRP beta 1a His-tag Protein (10289-SB)
  • Quality control testing to verify active proteins with lot specific assays by in-house scientists
  • All R&D Systems proteins are covered with a 100% guarantee

Source

NS0

Accession Number

NP001002898

Applications

Bioactivity
View all SIRP beta 1a Proteins and Enzymes »

Product Specifications

Source

Mouse myeloma cell line, NS0-derived mouse SIRP beta 1a protein
Val28-Gly360, with a C-teminal 6-His tag

Purity

>95%, by SDS-PAGE visualized with Silver Staining and quantitative densitometry by Coomassie® Blue Staining.

Endotoxin Level

<0.10 EU per 1 μg of the protein by the LAL method.

N-terminal Sequence Analysis

Val28

Predicted Molecular Mass

38 kDa

SDS-PAGE

48-62 kDa, under reducing conditions

Activity

Measured by its binding ability in a functional ELISA.
When Recombinant Mouse SIRP beta 1a His-tag (Catalog # 10289-SB) is immobilized at 1 µg/mL (100 µL/well), Recombinant Human SP‑D (Catalog # 1920-SP) binds with an ED50 of 30-180 ng/mL.

Scientific Data Images for Recombinant Mouse SIRP beta 1a His-tag Protein, CF

Recombinant Mouse SIRP beta 1a His-tag Protein Binding Activity

Recombinant Mouse SIRP beta 1a His-tag Protein Binding Activity

When Recombinant Mouse SIRP beta 1a His-tag (Catalog # 10289-SB) is immobilized at 1 µg/mL (100 µL/well), Recombinant Human SP-D (Catalog # 1920-SP) binds with an ED50 of 30-180 ng/mL.

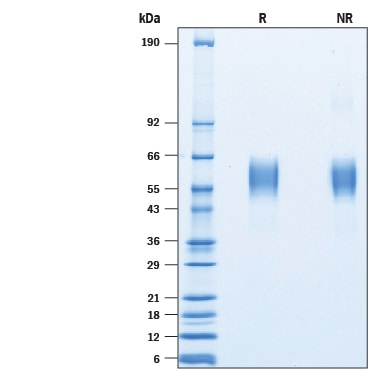

Recombinant Mouse SIRP beta 1a His-tag Protein SDS-PAGE

Recombinant Mouse SIRP beta 1a His-tag Protein SDS-PAGE

2 μg/lane of Recombinant Mouse SIRP beta 1a His-tag was resolved with SDS-PAGE under reducing (R) and non-reducing (NR) conditions and visualized by Coomassie® Blue staining, showing bands at 48-62 kDa.

Formulation, Preparation, and Storage

10289-SB
Formulation Lyophilized from a 0.2 μm filtered solution in PBS.
Reconstitution Reconstitute at 500 μg/mL in PBS.
Shipping The product is shipped at ambient temperature. Upon receipt, store it immediately at the temperature recommended below.
Stability & Storage Use a manual defrost freezer and avoid repeated freeze-thaw cycles.
  • 12 months from date of receipt, -20 to -70 °C as supplied.
  • 1 month, 2 to 8 °C under sterile conditions after reconstitution.
  • 3 months, -20 to -70 °C under sterile conditions after reconstitution.

Calculators

The reconstitution calculator allows you to quickly calculate the volume of a reagent to reconstitute your vial. Simply enter the mass of reagent and the target concentration and the calculator will determine the rest.

=
÷

Background: SIRP beta 1a

Signal-regulatory protein beta 1a (SIRP beta 1a) is a disulfide-linked type I membrane glycoprotein that belongs to the SIRP/SHPS (CD172) family of the immunoglobulin (Ig) superfamily. The SIRP family are paired receptors that have similar extracellular domains but differing C-terminal domains and functions (1). Members of this family are characterized by an extracellular region containing a V-set Ig domain containing a J-like sequence and two C1-set Ig domains. Positively charged residues within the transmembrane domain mediate interactions with DAP12 proteins which contain immunoreceptor tyrosine-based activation motifs (ITAMs) (3). Proteins in the SIRP family are typically expressed in cells of monocyte, macrophage or dendritic lineages (4). Mouse SIRP beta 1a shares 57% and 59% amino acid sequence identity with human SIRP beta 1 and rat SIRP alpha, respectively. SIRP beta 1 has a relatively short cytoplasmic region and lacks the signaling motifs for association with phosphatases. However, formation of the SIRP beta 1/DAP12 complex in myeloid cells induce tyrosine phosphorylation, mitogen-activated protein kinase activation, and cellular activation (5, 6). Engagement of SIRP beta 1 by specific monoclonal antibodies promoted Fc gamma receptor-dependent or -independent phagocytosis in mouse peritoneal macrophages (7). Surfactant protein D (Sp-D) has been shown to bind SIRP alpha and SIRP beta 1 in a calcium-dependent and sugar-specific manner on a distinct binding site from CD47 (8). Although the SIRP beta 1 extracellular regions share a high degree of homology with the SIRP alpha, SIRP beta 1 has been shown not to bind CD47 (9).

References

  1. vanBeek, E.M. et al. (2005) J. Immunol. 175:7781.
  2. van den Berg, T. et al. (2008) Trends in Immunology 29:203.
  3. Liu, Y. et al. (2005) Journal of Biological Chemistry 280:36132.
  4. Matozaki, T. et al. (2009) Trends in Cell Biology 19:72.
  5. Dietrich, J. et al. (2000) J Immunol. 164:9.
  6. Brook, G. et al. (2004) J. Immunol. 173:2562.
  7. Hayashi, A. et al. (2004) J Biol Chem. 279:29450.
  8. Fournier, B. et al. (2012) J. Biol. Chem. 287:19386.
  9. Seiffert, M. et al. (2001) Blood 97:2741.

Long Name

Signal-regulatory Protein beta 1A

Alternate Names

SIRPB1A

Entrez Gene IDs

320832 (Mouse)

Gene Symbol

SIRPB1A

UniProt

NP001002898
