Simple Plex Mouse IL-5 Cartridge

Name: Simple Plex Mouse IL-5 Cartridge
Brand: R&D Systems
SKU: SPCKB-MP-002846
Price: 450 USD
Availability: InStock

R&D Systems | Catalog # SPCKB-MP-002846

Submit a review

Citations

Product Documents

Simple Plex Mouse IL-5 assay kit for use on Ella instrument. Contains cartridge, sample diluent SD09, and wash buffer.

Customize This Cartridge

Simple Plex cartridges are custom built to fit your needs. Choose from over 350 assays spanning human, mouse, rat, and non-human primate. Just select your sample type, cartridge size (16, 32, or 72 samples), and up to 8 analytes per cartridge. Customize this cartridge.

Customize This Cartridge

Compatible Instruments
Product Specifications
Precision
Recovery
Linearity
Scientific Data
Preparation & Storage
Background
Product Documents
Specific Notices
Research Areas

Key Product Details

Assay Length

90 minutes

Sample Type & Volume Required Per Well*

Mouse Cell Culture Supernates (10 µL), Mouse Serum (25 µL), Mouse EDTA Plasma (25 µL), Mouse Heparin Plasma (25 µL)

Sensitivity

0.17 pg/mL

Assay Range

0.45-4290 pg/mL (Mouse Cell Culture Supernates, Mouse Serum, Mouse EDTA Plasma, Mouse Heparin Plasma)

Simple Plex Mouse IL-5 Cartridge Summary

Simple Plex assay is for the detection of mouse Interleukin 5 (IL-5) in cell culture supernatant (CCS), serum, and plasma (EDTA/Heparin) in Sample Diluent SD09.

*The Sample Volume represented is based on the amount of sample incorporated into the reaction after taking into account the assay's minimum required dilution for a given matrix. Serial dilution may be necessary to achieve some of the final sample volumes represented.

View all IL-5 Simple Plex »

Compatible Instruments

Ella Automated Immunoassay System

Efficiently analyze biomarkers with Ella's advanced technology, providing accurate, precise results in under 90 minutes. Quantify up to 8 targets per assay through a streamlined automated workflow. Choose from >350 highly validated Simple Plex assays or Simple Plex discovery assays.

Learn More

Product Specifications

Assay Type

Automated sandwich ELISA

Format

Microfluidic cartridge containing three Glass Nano Reactors (GNR)

Species

Mouse

Specificity

Natural and recombinant mouse IL-5.

Cross-reactivity

< 0.5% cross-reactivity observed with available related molecules. < 50% cross-species reactivity observed with species tested.

Interference

No significant interference observed with available related molecules.

Precision

Intra-Assay Precision (Precision within an assay) Each control was tested multiple times in one IL-5 assay.

Inter-Assay Precision (Precision between assays) Replicates of each IL-5 control were tested in multiple assays performed by at least three technicians using two lots of reagents for mouse IL-5.

Mouse Cell Culture Supernates, Mouse EDTA Plasma, Mouse Heparin Plasma, Mouse Serum

	Intra-Assay Precision		Inter-Assay Precision
Sample	1	2	1	2
n	16	16	47	46
Mean (pg/mL)	28.3	1593	24.8	1537
Standard Deviation	1.65	107	2.23	127
CV%	5.8	6.7	9.0	8.2

Recovery for Simple Plex Mouse IL-5 Cartridge

Recovery for the mouse IL-5 assays was evaluated at three different spiked concentrations of IL-5 protein.

Sample Type	Average % Recovery	Range %
Mouse EDTA Plasma (n=5)	109	98-120
Mouse Heparin Plasma (n=5)	107	98-111
Mouse Serum (n=3)	106	101-115

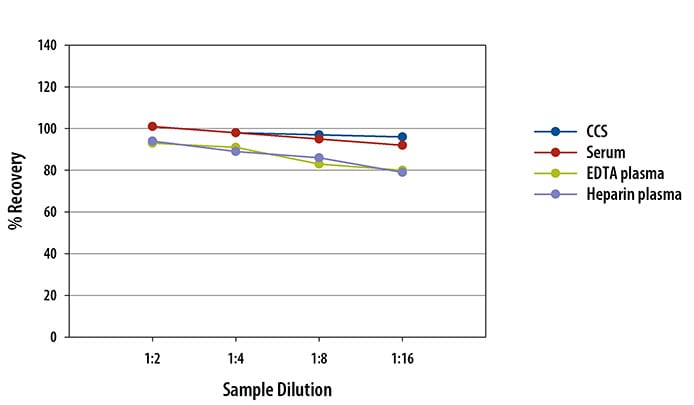

Linearity

Samples containing and/or spiked with high concentrations of mouse IL-5 were serially diluted with Sample Diluent to produce samples within the dynamic range of the assay

Scientific Data Images for Simple Plex Mouse IL-5 Cartridge

Simple Plex Mouse IL-5 Assay Standard Curve

Data shown represents typical performance results for Lower Limit of Quantitation (LLOQ) and Upper Limit of Quantitation (ULOQ) for Simple Plex Mouse IL-5 Assay. Assay range is 0.45-4290 pg/mL.

Preparation and Storage

Shipping

The product is shipped with polar packs. Upon receipt, store it immediately at the temperature recommended below.

Stability & Storage

Store the unopened product at 2 - 8 °C. Do not use past expiration date.

Background: IL-5

IL-5 (Interleukin-5) is a secreted cytokine that is expressed as a covalent dimer. It is produced by activated Th2 cells, eosinophils, mast cells, and iNKT cells and promotes eosinophilic and basophilic differentiation and activation. IL-5 signals through a receptor complex containing IL-5 R alpha and the Common beta Chain/CD131 on eosinophils and basophils. Naturally occurring soluble forms of IL-5 R alpha retain the ability to bind IL-5 and limit its bioavailability.
