Simple Plex Mouse/Rat CD25/IL-2 R alpha Cartridge

Name: Simple Plex Mouse/Rat CD25/IL-2 R alpha Cartridge
Brand: R&D Systems
SKU: SPCKB-MP-003998
Price: 450 USD
Availability: InStock

R&D Systems | Catalog # SPCKB-MP-003998

Submit a review

Citations

Product Documents

Simple Plex Mouse/Rat CD25/IL-2R alpha assay kit for use on Ella instrument. Contains cartridge, sample diluent SD09, and wash buffer.

Customize My Cartridge on Bio-Techne

Simple Plex cartridges are custom built to fit your needs. Choose from over 350 assays spanning human, mouse, rat, and non-human primate. Just select your sample type, cartridge size (16, 32, or 72 samples), and up to 8 analytes per cartridge. Customize your cartridge on Bio-Techne.com

Customize My Cartridge

Compatible Instruments
Product Specifications
Precision
Recovery
Linearity
Scientific Data
Preparation & Storage
Background
Product Documents
Specific Notices
Research Areas
Related Blogs

Key Product Details

Assay Length

90 minutes

Sample Type & Volume Required Per Well*

Cell Culture Supernates (10 µL), Serum (25 µL), EDTA Plasma (25 µL), Heparin Plasma (25 µL)

Sensitivity

0.5 pg/mL

Assay Range

2.1-20000 pg/mL (Cell Culture Supernates, Serum, EDTA Plasma, Heparin Plasma)

Simple Plex Mouse/Rat CD25/IL-2 R alpha Cartridge Summary

Simple Plex assay for the detection of mouse and rat Interleukin 2 Receptor alpha (IL-2 R alpha ) in serum and plasma (EDTA/Heparin) and mouse cell culture supenatant (CCS).

*The Sample Volume represented is based on the amount of sample incorporated into the reaction after taking into account the assay's minimum required dilution for a given matrix. Serial dilution may be necessary to achieve some of the final sample volumes represented.

View all CD25/IL-2R alpha Simple Plex »

Compatible Instruments

Ella Automated Immunoassay System

Efficiently analyze biomarkers with Ella's advanced technology, providing accurate, precise results in under 90 minutes. Quantify up to 8 targets per assay through a streamlined automated workflow. Choose from >350 highly validated Simple Plex assays or Simple Plex discovery assays.

Learn More

Product Specifications

Assay Type

Automated sandwich ELISA

Format

Microfluidic cartridge containing three Glass Nano Reactors (GNR)

Species

Mouse, Rat

Specificity

Natural and recombinant mouse and rat IL-2 R alpha

Cross-reactivity

Cross-reactivity observed with 1 or more available related molecules. < 50% cross-species reactivity observed with species tested.

Interference

No significant interference observed with available related molecules.

Precision

Intra-Assay Precision (Precision within an assay) Each control was tested 16 times in one assay.

Inter-Assay Precision (Precision between assays) Replicates of each control were tested in multiple assays performed by at least three technicians using two lots of reagents.

Cell Culture Supernates, EDTA Plasma, Heparin Plasma, Serum

	Intra-Assay Precision		Inter-Assay Precision
Sample	1	2	1	2
n	16	16	19	19
Mean (pg/mL)	111	5388	110	6115
Standard Deviation	8.48	317	7.12	629
CV%	7.7	5.9	6.5	10.3

Recovery for Simple Plex Mouse/Rat CD25/IL-2 R alpha Cartridge

Recovery at three different spiked concentrations within the range of the assay was evaluated.

Sample Type	Average % Recovery	Range %
Rat Serum (n=4)	104	99-109

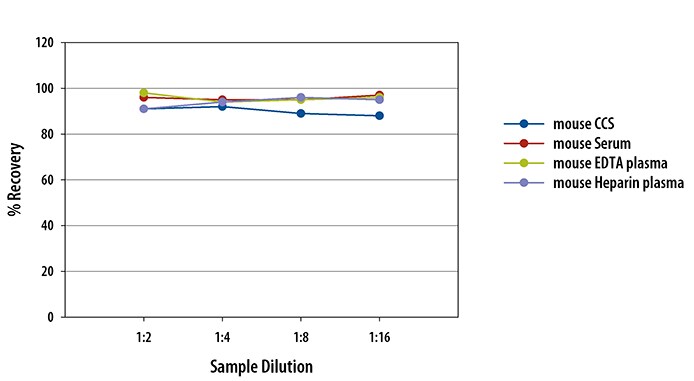

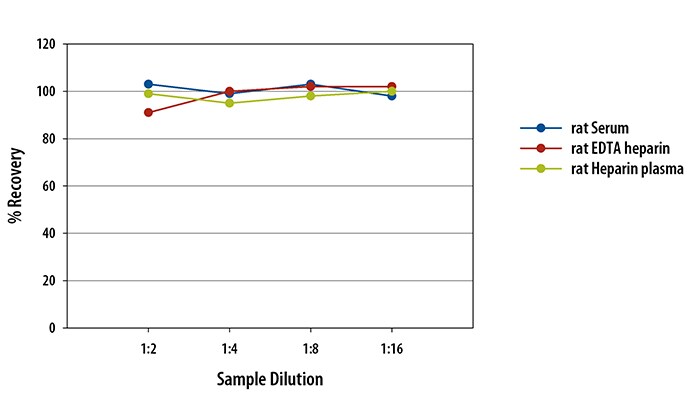

Linearity

Samples containing and/or spiked with high concentra-tions of mouse/rat IL-2 R alpha were serially diluted with Sample Diluent to produce samples within the dynamic range of the assay.

Scientific Data Images for Simple Plex Mouse/Rat CD25/IL-2 R alpha Cartridge

Mouse/Rat IL-2ra/CD25 Ella Assay Standard Curve

Preparation and Storage

Shipping

The product is shipped with polar packs. Upon receipt, store it immediately at the temperature recommended below.

Stability & Storage

Store the unopened product at 2 - 8 °C. Do not use past expiration date.

Background: CD25/IL-2R alpha

CD25/IL-2 receptor alpha is a transmembrane protein that associates with IL-2R beta/CD122 and the Common gamma Chain/CD132 on activated T cells and regulatory T cells (Treg). The Common gamma chain is a shared subunit in the receptors for IL-4, -7, -9, -15, and -21. IL-2R alpha is required for mediating IL-2 induced effects including T cell proliferation, activation induced cell death (AICD) of autoreactive naive T cells, and the development of CD4+CD25+ Treg which contribute to peripheral T cell homeostasis. A soluble form of IL-2R alpha can be generated by proteolytic cleavage of the cell surface receptor.
