TMED9 Antibody (A9A7)

Western Blot: TMED9 Antibody (A9A7) [NBP3-32938]

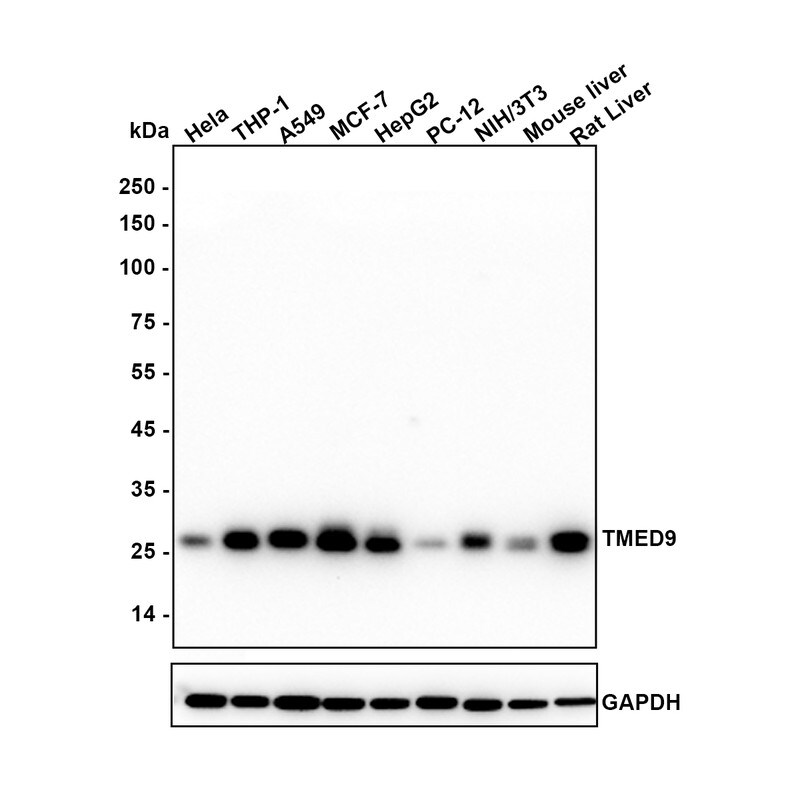

Western Blot: TMED9 Antibody (A9A7) [NBP3-32938] - Western blot analysis of TMED9 on different lysates with Mouse anti-TMED9 antibody (NBP3-32938) at 1/5,000 dilution.

Lane 1: Hela cell lysate (10 ug/Lane)
Lane 2: THP-1 cell lysate (10 ug/Lane)
Lane 3: A549 cell lysate (10 ug/Lane)
Lane 4: MCF-7 cell lysate (10 ug/Lane)
Lane 5: PC-12 cell lysate (10 ug/Lane)
Lane 6: NIH/3T3 cell lysate (10 ug/Lane)
Lane 7: Mouse liver tissue lysate (20 ug/Lane)
Lane 8: Mouse lung tissue lysate (20 ug/Lane)

Predicted band size: 27 kDa
Observed band size: 27 kDa

Exposure time: 1 minute;

12% SDS-PAGE gel.

Proteins were transferred to a PVDF membrane and blocked with 5% NFDM/TBST for 1 hour at room temperature. The primary antibody (NBP3-32938) at 1/5,000 dilution was used in 5% NFDM/TBST at room temperature for 2 hours. Goat Anti-Mouse IgG - HRP Secondary Antibody at 1:150,000 dilution was used for 1 hour at room temperature.

Immunohistochemistry: TMED9 Antibody (A9A7) [NBP3-32938]

Immunohistochemistry: TMED9 Antibody (A9A7) [NBP3-32938] - Immunohistochemical analysis of paraffin-embedded mouse liver tissue with Mouse anti-TMED9 antibody (NBP3-32938) at 1/1,000 dilution.

The section was pre-treated using heat mediated antigen retrieval with Tris-EDTA buffer (pH 9.0) for 20 minutes. The tissues were blocked in 1% BSA for 20 minutes at room temperature, washed with ddH2O and PBS, and then probed with the primary antibody (NBP3-32938) at 1/1,000 dilution for 1 hour at room temperature. The detection was performed using an HRP conjugated compact polymer system. DAB was used as the chromogen. Tissues were counterstained with hematoxylin and mounted with DPX.
