NKG2D is a type II transmembrane glycoprotein having an extracellular lectin-like domain. This domain lacks the recognizable calcium-binding sites found in true C‑type lectins and binds protein rather than carbohydrate ligands. Human NKG2D is expressed on CD8+ alpha beta T cells, gamma delta T cells, NK cells and NKT cells. In mouse systems NKG2D also occurs on macrophages. Human ligands for NKG2D include MICA, MICB, and ULBP1, 2, and 3. Expression of NKG2D ligands occurs in epithelial cells, tumor cells and under conditions of stress or infection. NKG2D exists as a disulfide-linked homodimer that delivers an activating signal upon ligand binding. Signaling requires association with an adapter protein. Alternative splicing of the NKG2D mRNA results in isoforms with different cytoplasmic domains that can associate either with DAP12 to deliver a true activating signal or with DAP10 resulting in a costimulatory signal. NKG2D has been implicated in anti-tumor surveillance and the immune response against viral infection.
Key Product Details
Species Reactivity
Applications
Label
Antibody Source
Product Specifications
Immunogen
Phe78-Val216
Accession # P26718
Specificity
Clonality
Host
Isotype
Scientific Data Images for Human NKG2D/CD314 Antibody

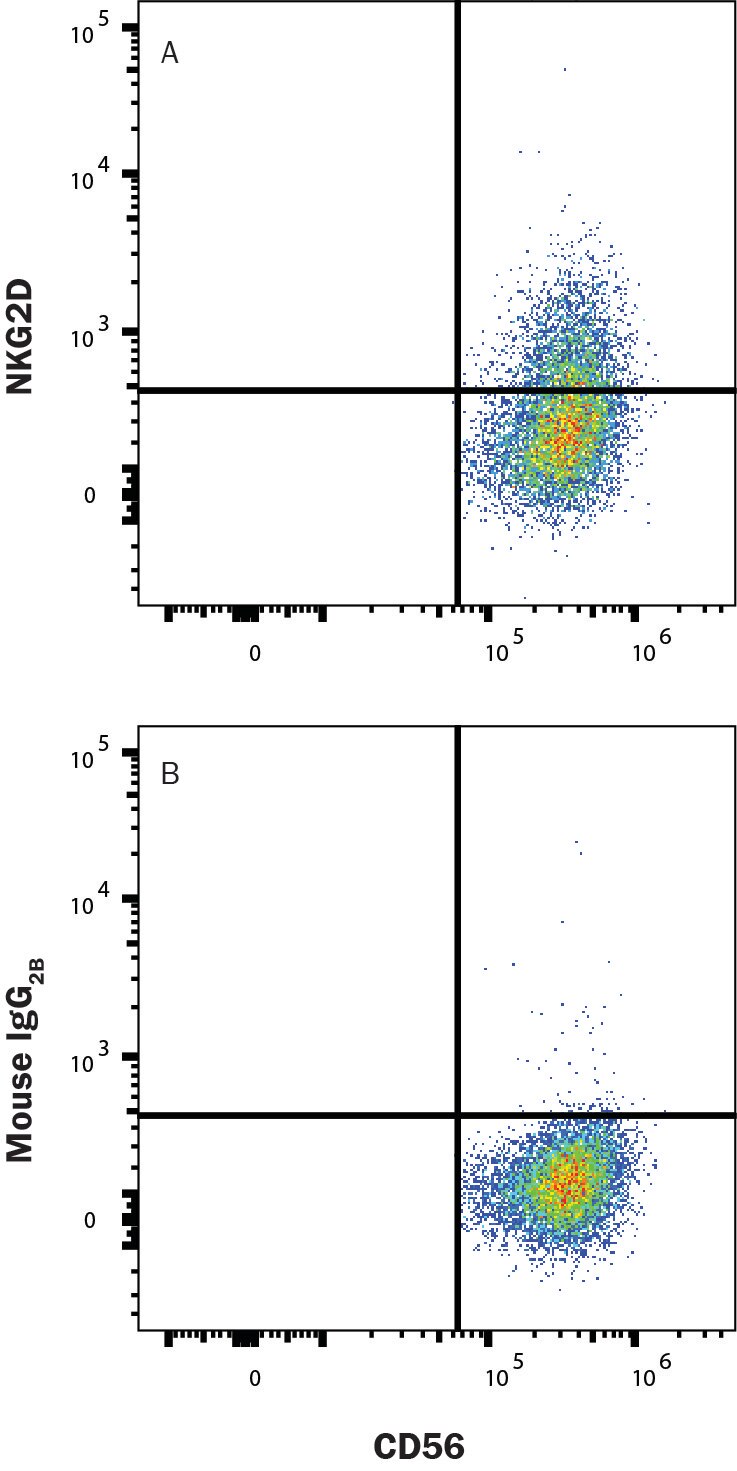

Detection of NKG2D/CD314 in NK cells by Flow Cytometry.
NK cells (PBMC treated with 27 ng/ml Recombinant Human IL-2 Protein (202-IL), 10 ng/ml Recombinant Human IL-12 Protein (219-IL), 10 ng/ml Recombinant Human IL-18/IL-1F4 Protein (9124-IL) and 10 ng/ml Recombinant Human IL-21 Protein (8879-IL) for 15 days) were stained with Rabbit Anti-Human NCAM‑1/CD56 PE‑conjugated Monoclonal Antibody (Catalog # FAB24086P) and either (A) Mouse Anti-Human NKG2D/CD314 Monoclonal Antibody (Catalog # MAB1392) or (B) Rabbit IgG Alexa Fluor® 700-conjugated Antibody (Catalog # IC1051N). View our protocol for Staining Membrane-associated Proteins.

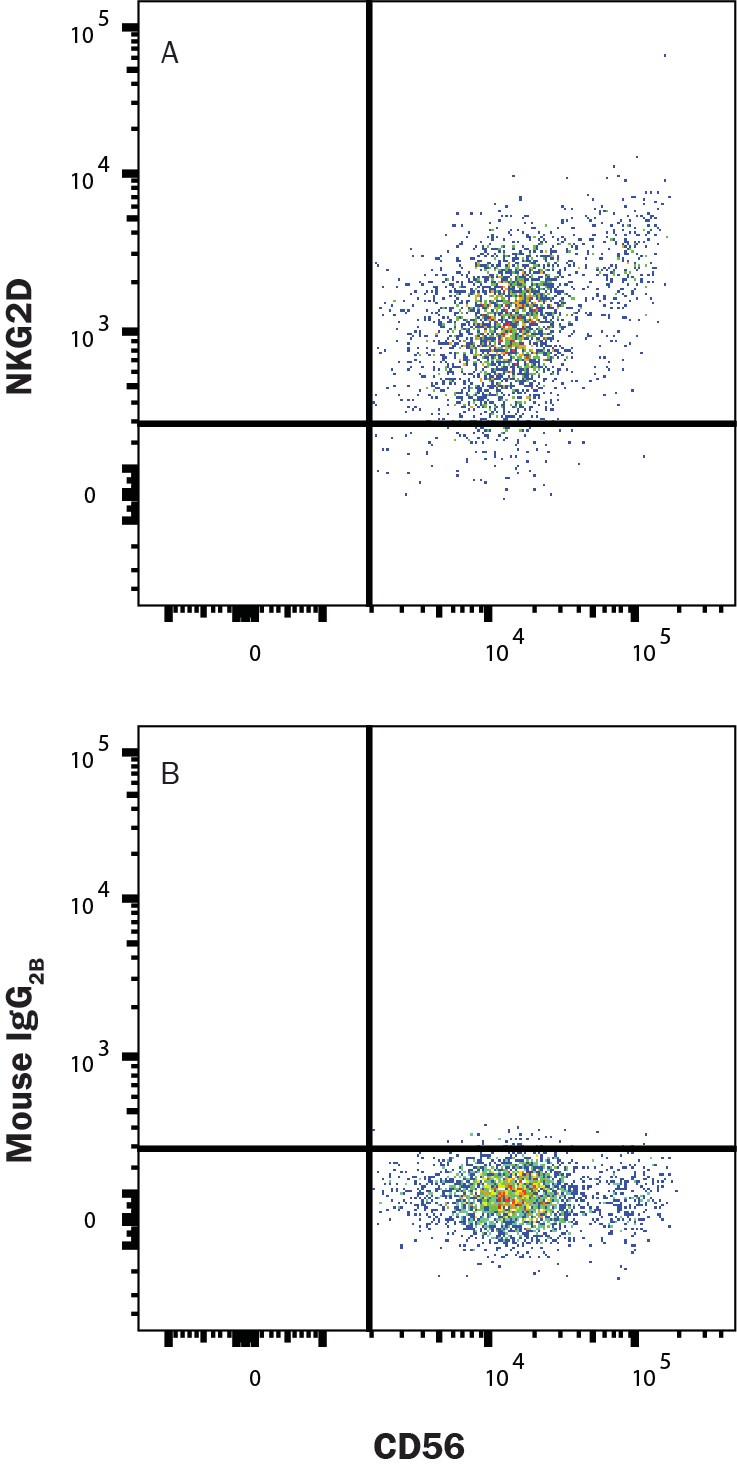

Detection of NKG2D/CD314 in CD3- CD56+ naïve PBMC cells by Flow Cytometry.
CD3- CD56+ naïve PBMC were stained with Rabbit Anti-Human NCAM‑1/CD56 PE‑conjugated Monoclonal Antibody (Catalog # FAB24086P) and either (A) Mouse Anti-Human NKG2D/CD314 Monoclonal Antibody (Catalog # MAB1392) or (B) Mouse IgG2B Isotype Control (Catalog # MAB004) followed by Allophycocyanin-conjugated Anti-Mouse IgG Secondary Antibody (Catalog # F0101B). View our protocol for Staining Membrane-associated Proteins.
Applications for Human NKG2D/CD314 Antibody
Flow Cytometry
Sample: NK cells (PBMC treated with 27 ng/ml Recombinant Human IL-2 Protein (Catalog # 202-IL), 10 ng/ml Recombinant Human IL-12 Protein (Catalog # 219-IL), 10 ng/ml Recombinant Human IL-18/IL-1F4 Protein (Catalog # 9124-IL) and 10 ng/ml Recombinant Human IL-21 Protein (Catalog # 8879-IL) for 15 days) and CD3- CD56+ naïve PBMC cells
Flow Cytometry Panel Builder
Bio-Techne Knows Flow Cytometry
Save time and reduce costly mistakes by quickly finding compatible reagents using the Panel Builder Tool.
Advanced Features
- Spectra Viewer - Custom analysis of spectra from multiple fluorochromes
- Spillover Popups - Visualize the spectra of individual fluorochromes
- Antigen Density Selector - Match fluorochrome brightness with antigen density
Formulation, Preparation, and Storage
Purification
Reconstitution
Reconstitute at 0.5 mg/mL in sterile PBS. For liquid material, refer to CoA for concentration.
Formulation
Shipping
Stability & Storage
- 12 months from date of receipt, -20 to -70 °C as supplied.
- 1 month, 2 to 8 °C under sterile conditions after reconstitution.
- 6 months, -20 to -70 °C under sterile conditions after reconstitution.
Calculators
Background: NKG2D/CD314
References
- Li, P. et al. (2001) Nature Immunol. 2:443.
- Steinle, A. et al. (2001) Immunogenetics 53:279.
- Cosman, D. et al. (2001) Immunity 14:123.
- Cerwenka, A. and L. Lanier (2001) Immunol. Rev. 181:158.
- Wu, J. et al. (1999) Science 285:730.
- Diefenbach, A. et al. (2002) Nature Immunol. 3:1142.
- Gilfillan, S. et al. (2002) Nature Immunol. 3:1150.
- Groh, V. et al. (2001) Nature Immunol. 2:255.
- Cerwenka, A. et al. (2001) Proc. Natl. Acad. Sci. USA 98:11521.
- Diefenbach, A. et al. (2001) Nature 413:165.
- NKG2D and its Ligands (2002) www.rndsystems.com.
Long Name
Alternate Names
Gene Symbol
UniProt
