AIF-1/Iba1 Antibody (HL22) - Azide and BSA Free

Novus Biologicals | Catalog # NBP3-13648

Recombinant Monoclonal Antibody
Novus Biologicals
100% Guarantee

Key Product Details

Validated by

Independent Antibodies

Species Reactivity

Human, Mouse, Rat

Applications

Immunohistochemistry, Immunohistochemistry-Paraffin, Immunohistochemistry-Frozen, Western Blot, Immunocytochemistry/ Immunofluorescence

Label

Unconjugated

Antibody Source

Recombinant Monoclonal Rabbit IgG Clone # HL22 expressed in HEK293

Format

Azide and BSA Free
View all AIF-1/Iba1 Primary Antibodies »

Product Specifications

Immunogen

Carrier-protein conjugated synthetic peptide encompassing a sequence within the C-terminus region of human AIF-1/Iba1. The exact sequence is proprietary.

Clonality

Monoclonal

Host

Rabbit

Isotype

IgG

Theoretical MW

17 kDa.
Disclaimer note: The observed molecular weight of the protein may vary from the listed predicted molecular weight due to post translational modifications, post translation cleavages, relative charges, and other experimental factors.

Description

Centrifuge briefly prior to opening.

Scientific Data Images for AIF-1/Iba1 Antibody (HL22) - Azide and BSA Free

Western Blot: AIF-1/Iba1 Antibody (HL22) [NBP3-13648]

Western Blot: AIF-1/Iba1 Antibody (HL22) [NBP3-13648]

Western Blot: AIF-1/Iba1 Antibody (HL22) [NBP3-13648] - Various whole cell extracts (30 ug) were separated by 15% SDS-PAGE, and the membranes were blotted with AIF-1/Iba1 antibody [HL22] (NBP3-13648) diluted at 1:1000 and competitor's antibody diluted at 1:1000. The HRP-conjugated anti-rabbit IgG antibody (NBP2-19301) was used to detect the primary antibody, and the signal was developed with Trident ECL plus-Enhanced.
Immunohistochemistry-Paraffin: AIF-1/Iba1 Antibody (HL22) [NBP3-13648]

Immunohistochemistry-Paraffin: AIF-1/Iba1 Antibody (HL22) [NBP3-13648]

Immunohistochemistry-Paraffin: AIF-1/Iba1 Antibody (HL22) [NBP3-13648] - Rat brain. AIF-1/Iba1 stained by AIF-1/Iba1 antibody [HL22] (NBP3-13648) diluted at 1:100. Antigen Retrieval: Citrate buffer, pH 6.0, 15 min
Immunohistochemistry-Frozen: AIF-1/Iba1 Antibody (HL22) [NBP3-13648]

Immunohistochemistry-Frozen: AIF-1/Iba1 Antibody (HL22) [NBP3-13648]

Immunohistochemistry-Frozen: AIF-1/Iba1 Antibody (HL22) [NBP3-13648] - AIF-1/Iba1 antibody [HL22] detects AIF-1/Iba1 protein by immunohistochemical analysis. Sample: Frozen-sectioned mouse spinal cord. Green: AIF-1/Iba1 stained by AIF-1/Iba1 antibody [HL22] (NBP3-13648) diluted at 1:200. Blue: Fluoroshield with DAPI.
Immunohistochemistry-Paraffin: AIF-1/Iba1 Antibody (HL22) [NBP3-13648]

Immunohistochemistry-Paraffin: AIF-1/Iba1 Antibody (HL22) [NBP3-13648]

Immunohistochemistry-Paraffin: AIF-1/Iba1 Antibody (HL22) [NBP3-13648] - Mouse hippocampus. AIF-1/Iba1 stained by AIF-1/Iba1 antibody [HL22] (NBP3-13648) diluted at 1:1000. Antigen Retrieval: Citrate buffer, pH 6.0, 15 min
Immunohistochemistry-Paraffin: AIF-1/Iba1 Antibody (HL22) [NBP3-13648]

Immunohistochemistry-Paraffin: AIF-1/Iba1 Antibody (HL22) [NBP3-13648]

Immunohistochemistry-Paraffin: AIF-1/Iba1 Antibody (HL22) [NBP3-13648] - Rat cerebellum. AIF-1/Iba1 stained by AIF-1/Iba1 antibody [HL22] (NBP3-13648) diluted at 1:1000. Antigen Retrieval: Citrate buffer, pH 6.0, 15 min
Immunohistochemistry-Frozen: AIF-1/Iba1 Antibody (HL22) [NBP3-13648]

Immunohistochemistry-Frozen: AIF-1/Iba1 Antibody (HL22) [NBP3-13648]

Immunohistochemistry-Frozen: AIF-1/Iba1 Antibody (HL22) [NBP3-13648] - AIF-1/Iba1 antibody [HL22] detects AIF-1/Iba1 protein by immunohistochemical analysis. Sample: Frozen-sectioned mouse brain. Green: AIF-1/Iba1 stained by AIF-1/Iba1 antibody [HL22] (NBP3-13648) diluted at 1:100. Red: AIF-1/Iba1 stained by AIF-1/Iba1 antibody [HL22-RT] diluted at 1:100. Blue: Fluoroshield with DAPI.
AIF-1/Iba1 Antibody (HL22)

Immunocytochemistry/Immunofluorescence: AIF-1/Iba1 Antibody (HL22) [NBP3-13648] -

Immunocytochemistry/Immunofluorescence: AIF-1/Iba1 Antibody (HL22) [NBP3-13648] - THP-1 cells were fixed in 4% paraformaldehyde at RT for 15 min.Green: Iba1 stained by Iba1 antibody [HL22] diluted at 1:500.Blue: Hoechst 33342 staining.
AIF-1/Iba1 Antibody (HL22) - Azide and BSA Free

Immunohistochemistry-Paraffin: AIF-1/Iba1 Antibody (HL22) [NBP3-13648] -

Iba1 antibody [HL22] detects Iba1 protein by immunohistochemical analysis.
Sample: Paraffin-embedded rat brain.
Iba1 stained by Iba1 antibody [HL22] (NBP3-13648) conjugated with DyLight488 diluted at 1:200.
Blue: Fluoroshield with DAPI.
Antigen Retrieval: Citrate buffer, pH 6.0, 15 min.
AIF-1/Iba1 Antibody (HL22) - Azide and BSA Free

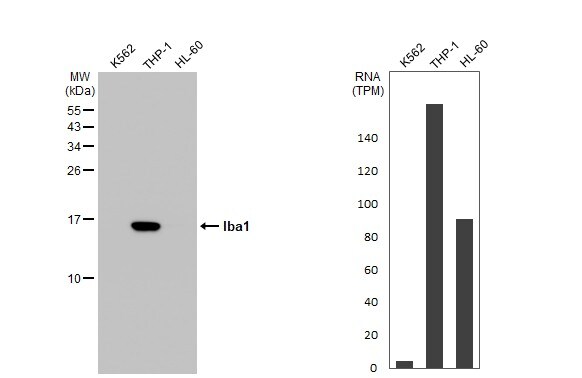

Western Blot: AIF-1/Iba1 Antibody (HL22) [NBP3-13648] -

Various whole cell extracts (30 ug) were separated by 15% SDS-PAGE, and the membrane was blotted with Iba1 antibody [HL22] (NBP3-13648) diluted at 1:1000. The HRP-conjugated anti-rabbit IgG antibody was used to detect the primary antibody. Corresponding RNA expression data for the same cell lines are based on Human Protein Atlas program.

Applications for AIF-1/Iba1 Antibody (HL22) - Azide and BSA Free

Application
Recommended Usage

Immunocytochemistry/ Immunofluorescence

-Assay dependent

Immunohistochemistry

1:100-1:1000

Immunohistochemistry-Frozen

1:100-1:1000

Immunohistochemistry-Paraffin

1:100-1:1000

Western Blot

1:500-1:3000

Formulation, Preparation, and Storage

Purification

Protein A purified

Formulation

PBS

Format

Azide and BSA Free

Preservative

No Preservative

Concentration

Concentrations vary lot to lot. See vial label for concentration. If unlisted please contact technical services.

Shipping

The product is shipped with polar packs. Upon receipt, store it immediately at the temperature recommended below.

Stability & Storage

Store at 4C short term. Aliquot and store at -20C long term. Avoid freeze-thaw cycles.

Background: AIF-1/Iba1

Allograft inflammatory factor (AIF-1) or ionized calcium-binding adapter molecule 1 (Iba1) is a cytosolic actin binding protein containing a calcium binding domain (EF-hand) and inducible by cytokines and IFN-gamma (1). AIF-1 (theoretical molecular weight 17kDa) was first cloned from rat and human cardiac allografts and macrophage cell lines. In cardiac allografts, expression of AIF-1 was specifically associated with infiltrated mononuclear cells (2, 3). AIF-1 is constitutively expressed and inducible in macrophages and microglia. Iba1, microglia response factor (MRF-1) and daintain were independently cloned and identified in rat and human tissues and share complete sequence identity with AIF-1. Additionally, several AIF-1 splice variants have been identified including IRT-1, BART-1, G1 and Hara-1 (2).

Several cellular functions have been associated with AIF-1/Iba1 expression including cell growth, cell migration, actin bundling, membrane ruffling, and phagocytic activity (2, 4). Iba1 induces Rac signaling through a PLC-gamma dependent pathway (1). Rac, a member of the Rho family of small GTPases, localizes with Iba1 and F-actin in membrane ruffles and phagocytic cups and plays a role in microglia activation. AIF-1/Iba1 induction in macrophages and microglia occur in association with immunological inflammatory processes in various disease states including endometriosis, cerebral infarction and rheumatoid arthritis (5). Immunodetection of Iba1 through flow cytometry, immunohistochemical or immunocytochemical applications is commonly used for identification and analysis of microglia.

References

1. Imai, Y., & Kohsaka, S. (2002). Intracellular signaling in M-CSF-induced microglia activation: Role of Iba1. GLIA. https://doi.org/10.1002/glia.10149

2. Deininger, M. H., Meyermann, R., & Schluesener, H. J. (2002). The allograft inflammatory factor-1 family of proteins. FEBS Letters. https://doi.org/10.1016/S0014-5793(02)02430-4

3. Utans, U., Quist, W. C., Mcmanus, B. M., Wilson, J. E., Arceci, R. J., Wallace, A. F., & Russell, M. E. (1996). Allograft inflammatory factor-1: A cytokine-responsive macrophage molecule expressed in transplanted human hearts. Transplantation. https://doi.org/10.1097/00007890-199605150-00018

4. Franco-Bocanegra, McAuley, Nicoll, & Boche. (2019). Molecular Mechanisms of Microglial Motility: Changes in Ageing and Alzheimer's Disease. Cells. https://doi.org/10.3390/cells8060639

5. Kimura, M., Kawahito, Y., Obayashi, H., Ohta, M., Hara, H., Adachi, T.,... Yoshikawa, T. (2007). A Critical Role for Allograft Inflammatory Factor-1 in the Pathogenesis of Rheumatoid Arthritis. The Journal of Immunology. https://doi.org/10.4049/jimmunol.178.5.3316

Long Name

Allograft Inflammatory Factor 1

Alternate Names

AIF1, IBA1, IRT1

Gene Symbol

AIF1
