CCR7 Antibody (4B7B8) - BSA Free

Novus Biologicals | Catalog # NBP2-61680

Novus Biologicals
100% Guarantee

Key Product Details

Species Reactivity

Human

Applications

Western Blot, ELISA, Flow Cytometry

Label

Unconjugated

Antibody Source

Monoclonal Mouse IgG1 Clone # 4B7B8

Format

BSA Free
View all CCR7 Primary Antibodies »

Product Specifications

Immunogen

Purified recombinant fragment of human CCR7 (AA: extra mix) expressed in E. Coli.

Clonality

Monoclonal

Host

Mouse

Isotype

IgG1

Theoretical MW

42.9 kDa.
Disclaimer note: The observed molecular weight of the protein may vary from the listed predicted molecular weight due to post translational modifications, post translation cleavages, relative charges, and other experimental factors.

Description

Novus Biologicals Mouse CCR7 Antibody (4B7B8) - BSA Free (NBP2-61680) is a monoclonal antibody validated for use in WB, ELISA and Flow. All Novus Biologicals antibodies are covered by our 100% guarantee.

Scientific Data Images for CCR7 Antibody (4B7B8) - BSA Free

Western Blot: CCR7 Antibody (4B7B8)BSA Free [NBP2-61680]

Western Blot: CCR7 Antibody (4B7B8)BSA Free [NBP2-61680]

Western Blot: CCR7 Antibody (4B7B8) [NBP2-61680] - Analysis using CD197 mAb against HEK293 (1) and CD197 (AA: extra mix)-hIgGFc transfected HEK293 (2) cell lysate.
Flow Cytometry: CCR7 Antibody (4B7B8) - BSA Free [NBP2-61680]

Flow Cytometry: CCR7 Antibody (4B7B8) - BSA Free [NBP2-61680]

Flow Cytometry: CCR7 Antibody (4B7B8) [NBP2-61680] - Analysis of K562 cells using CCR7 mouse mAb (green) and negative control (red).
Western Blot: CCR7 Antibody (4B7B8)BSA Free [NBP2-61680]

Western Blot: CCR7 Antibody (4B7B8)BSA Free [NBP2-61680]

Western Blot: CCR7 Antibody (4B7B8) [NBP2-61680] - Analysis using CD197 mAb against human CD197 (AA: extra mix) recombinant protein. (Expected MW is 37.5 kDa)
Western Blot: CCR7 Antibody (4B7B8)BSA Free [NBP2-61680]

Western Blot: CCR7 Antibody (4B7B8)BSA Free [NBP2-61680]

Western Blot: CCR7 Antibody (4B7B8) [NBP2-61680] - Analysis using CD197 mouse mAb against C6 (1) cell lysate.
Flow Cytometry: CCR7 Antibody (4B7B8) - BSA Free [NBP2-61680]

Flow Cytometry: CCR7 Antibody (4B7B8) - BSA Free [NBP2-61680]

Flow Cytometry: CCR7 Antibody (4B7B8) [NBP2-61680] - Analysis of HL-60 cells using CCR7 mouse mAb (green) and negative control (red).

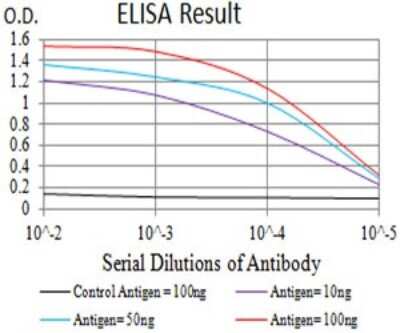

ELISA: CCR7 Antibody (4B7B8) - BSA Free [NBP2-61680]

ELISA: CCR7 Antibody (4B7B8) - BSA Free [NBP2-61680]

ELISA: CCR7 Antibody (4B7B8) [NBP2-61680] - Black line: Control Antigen (100 ng);Purple line: Antigen (10ng); Blue line: Antigen (50 ng); Red line:Antigen (100 ng)

Applications for CCR7 Antibody (4B7B8) - BSA Free

Application
Recommended Usage

ELISA

1:10000

Flow Cytometry

1:200 - 1:400

Western Blot

1:100- 1:500

Flow Cytometry Panel Builder

Bio-Techne Knows Flow Cytometry

Save time and reduce costly mistakes by quickly finding compatible reagents using the Panel Builder Tool.

Advanced Features

  • Spectra Viewer - Custom analysis of spectra from multiple fluorochromes
  • Spillover Popups - Visualize the spectra of individual fluorochromes
  • Antigen Density Selector - Match fluorochrome brightness with antigen density
Build Your Panel Now
Flow Cytometry

Formulation, Preparation, and Storage

Purification

Protein G purified

Formulation

PBS

Format

BSA Free

Preservative

0.05% Sodium Azide

Concentration

1 mg/ml

Shipping

The product is shipped with polar packs. Upon receipt, store it immediately at the temperature recommended below.

Stability & Storage

Store at 4C short term. Aliquot and store at -20C long term. Avoid freeze-thaw cycles.

Background: CCR7

Chemokine receptor 7 (CCR7) is a G-protein coupled receptor (GPCR) that binds chemokine ligand 19 (CCL19) and chemokine ligand 21 (CCL21) and, together, this receptor-ligand interaction functions in inflammatory and adaptive immune response (1,2). The CCR7 protein contains 7-transmembrane spanning alpha helices and is 378 amino acids (aa) in length, with a theoretical molecular weight of 42.8 kDa (3,4). CCR7 is expressed on several cells within the immune system, including naive T cells, central memory T cells, regulatory T cells, naive B cells, a subset of double negative and single positive thymocytes, and mature dendritic cells (DCs) (1, 3).

The primary role of the CCR7/CCL19/CCL21 chemokine signaling axis is homing T cells and DCs to lymph nodes and lymphoid tissues to initiate an immune response (1,2,5,6). In the context of cancer, the CCR7 signaling axis appears to have two opposing roles (2). Downregulation of CCR7 on CD8+ T cells contributes to effector cell migration and anti-cancer activities via cytotoxic tumor-infiltrating lymphocytes (2). However, upregulation of CCR7 by cancer cells can result in cancer cell migration and metastasis (2). Overexpression of CCR7 has been implicated in a variety of cancers including breast, cervical, gastric, head and neck cell carcinoma, and prostate (1,2,7). Studies in breast cancer have found that hypoxia increases CCR7 expression, and this activation can affect cancer cell invasion, extravasation, proliferation, angiogenesis, and metastasis through induction of multiple signaling transduction pathways such as PI3K/AKT, MAPK, and JAK/STAT (5,7).

Given its important role in inflammation and immune response, several strategies have been employed to target the CCR7 signaling axis for cancer immunotherapy (2). Some cancer immunotherapies under investigation include intra-tumoral administration of CCL19 and CCL21, introduction of patient-derived cells transfected to express CCR7 or its ligands, and vaccines (2). Further interrogation of CCR7/CCL19/CCL21 signaling axis is required to develop better therapeutic strategies for cancer treatment.

References:

1. Comerford, I., Harata-Lee, Y., Bunting, M. D., Gregor, C., Kara, E. E., & McColl, S. R. (2013). A myriad of functions and complex regulation of the CCR7/CCL19/CCL21 chemokine axis in the adaptive immune system. Cytokine & growth factor reviews, 24(3), 269-283. https://doi.org/10.1016/j.cytogfr.2013.03.001

2. Salem, A., Alotaibi, M., Mroueh, R., Basheer, H. A., & Afarinkia, K. (2021). CCR7 as a therapeutic target in Cancer. Biochimica et biophysica acta. Reviews on cancer, 1875(1), 188499. https://doi.org/10.1016/j.bbcan.2020.188499

3. Yan, Y., Chen, R., Wang, X., Hu, K., Huang, L., Lu, M., & Hu, Q. (2019). CCL19 and CCR7 Expression, Signaling Pathways, and Adjuvant Functions in Viral Infection and Prevention. Frontiers in cell and developmental biology, 7, 212. https://doi.org/10.3389/fcell.2019.00212

4. Uniprot (P32248)

5. Korbecki, J., Grochans, S., Gutowska, I., Barczak, K., & Baranowska-Bosiacka, I. (2020). CC Chemokines in a Tumor: A Review of Pro-Cancer and Anti-Cancer Properties of Receptors CCR5, CCR6, CCR7, CCR8, CCR9, and CCR10 Ligands. International journal of molecular sciences, 21(20), 7619. https://doi.org/10.3390/ijms21207619

6. Sanchez-Sanchez, N., Riol-Blanco, L., & Rodriguez-Fernandez, J. L. (2006). The multiple personalities of the chemokine receptor CCR7 in dendritic cells. Journal of immunology (Baltimore, Md. : 1950), 176(9), 5153-5159. https://doi.org/10.4049/jimmunol.176.9.5153

7. Rizeq, B., & Malki, M. I. (2020). The Role of CCL21/CCR7 Chemokine Axis in Breast Cancer Progression. Cancers, 12(4), 1036. https://doi.org/10.3390/cancers12041036

Alternate Names

BLR2, CC-CKR-7, CCR7, CD197, CDw197, CMKBR7, EBI1

Gene Symbol

CCR7
