CD74 Antibody (PIN.1) - BSA Free

Novus Biologicals | Catalog # NB100-1985

Novus Biologicals
Loading...

Key Product Details

Species Reactivity

Validated:

Human, Mouse (Negative)

Cited:

Human

Applications

Validated:

Immunohistochemistry, Immunohistochemistry-Paraffin, Western Blot, Flow Cytometry, Immunocytochemistry/ Immunofluorescence, Simple Western, Immunoprecipitation, CyTOF-ready

Cited:

Western Blot

Label

Unconjugated

Antibody Source

Monoclonal Mouse IgG1 Clone # PIN.1

Format

BSA Free
Loading...

Product Specifications

Immunogen

Peptide corresponding to residues 12-27 of CD74, human invariant chain (short form).

Epitope

The epitope is in a region of the cytoplasmic tail of human CD74 which is common to all isoforms.

Reactivity Notes

Human. Does not react with mouse.

Localization

Type II membrane protein

Specificity

This detects an ~33-35 kDa protein doublet, corresponding to the apparent molecular mass of the p33 and p35 forms of human CD74.

Clonality

Monoclonal

Host

Mouse

Isotype

IgG1

Scientific Data Images for CD74 Antibody (PIN.1) - BSA Free

Western Blot: CD74 Antibody (PIN.1)BSA Free [NB100-1985]

Western Blot: CD74 Antibody (PIN.1)BSA Free [NB100-1985]

Western Blot: CD74 Antibody (PIN.1) [NB100-1985] - Western blot of CD74 from IP N87 lysates mixed with macrophage migration inhibitory factor (MIF).
Immunohistochemistry-Paraffin: CD74 Antibody (PIN.1) - BSA Free [NB100-1985]

Immunohistochemistry-Paraffin: CD74 Antibody (PIN.1) - BSA Free [NB100-1985]

Immunohistochemistry-Paraffin: CD74 Antibody (PIN.1) [NB100-1985] - IHC analysis of formalin-fixed paraffin-embedded tissue section of human spleen using mouse monoclonal CD74 antibody (clone PIN.1) at 5 ug/ml concentration.
Flow Cytometry: CD74 Antibody (PIN.1) - BSA Free [NB100-1985]

Flow Cytometry: CD74 Antibody (PIN.1) - BSA Free [NB100-1985]

Flow Cytometry: CD74 Antibody (PIN.1) [NB100-1985] - CD74 in human PBMCs (gated on all monocytes). Orange represents isotype control and blue represents anti-CD74 antibody staining.
Western Blot: CD74 Antibody (PIN.1)BSA Free [NB100-1985]

Western Blot: CD74 Antibody (PIN.1)BSA Free [NB100-1985]

Western Blot: CD74 Antibody (PIN.1) [NB100-1985] - Ramos whole cell protein was separated on a 4-12% gel by SDS-PAGE and protein transferred to PVDF. The membrane was probed with anti-CD74 at 2 ug/ml and detected with and anti-mouse HRP secondary antibody using chemiluminescence. The arrow head shows the detection of CD74.
Immunohistochemistry-Paraffin: CD74 Antibody (PIN.1) - BSA Free [NB100-1985]

Immunohistochemistry-Paraffin: CD74 Antibody (PIN.1) - BSA Free [NB100-1985]

Immunohistochemistry-Paraffin: CD74 Antibody (PIN.1) [NB100-1985] - IHC analysis of formalin-fixed paraffin-embedded tissue section of human renal cell carcinoma using mouse monoclonal CD74 antibody (clone PIN.1) at 5 ug/ml concentration.
Immunohistochemistry-Paraffin: CD74 Antibody (PIN.1) - BSA Free [NB100-1985]

Immunohistochemistry-Paraffin: CD74 Antibody (PIN.1) - BSA Free [NB100-1985]

Immunohistochemistry-Paraffin: CD74 Antibody (PIN.1) [NB100-1985] - IHC analysis of formalin-fixed paraffin-embedded tissue section of human pulmonary squamous cell carcinoma using mouse monoclonal CD74 antibody (clone PIN.1) at 5 ug/ml concentration.
CD74 Antibody (PIN.1) - BSA Free

CD74 (PIN.1) in U-2 OS Human Cell Line -

CD74 (PIN.1) was detected in immersion fixed U-2 OS human osteosarcoma cell line using Mouse anti-CD74 (PIN.1) Protein G Purified Monoclonal Antibody conjugated to Alexa Fluor® 647 (Catalog # NB100-1985AF647) (light blue) at 10 µg/mL overnight at 4C. Cells were counterstained with DAPI (dark blue). Cells were imaged using a 100X objective and digitally deconvolved.
CD74 Antibody (PIN.1) - BSA Free

CD74 (PIN.1) in U-2 OS Human Cell Line.

CD74 (PIN.1) was detected in immersion fixed U-2 OS human osteosarcoma cell line using Mouse anti- CD74 (PIN.1) Protein-G purified Monoclonal Antibody conjugated to Alexa Fluor® 488 (Catalog # NB100-1985AF488) (green) at 5 µg/mL overnight at 4C. Cells were counterstained with DAPI (blue). Cells were imaged using a 100X objective and digitally deconvolved.
CD74 Antibody (PIN.1) - BSA Free

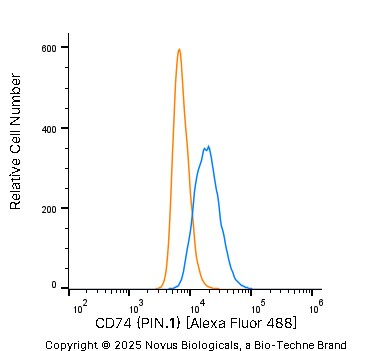

Detection of CD74 (PIN.1) in THP-1 Human Cell Line by Flow Cytometry.

An intracellular stain was performed on THP-1 human acute monocytic leukemia cell line with Mouse anti-CD74 (PIN.1) Protein-G purified Monoclonal Antibody conjugated to Alexa Fluor® 488 (Catalog # NB100-1985AF488, blue histogram) or matched control antibody (orange histogram) at 5 µg/mL for 30 minutes at RT.
CD74 Antibody (PIN.1) - BSA Free

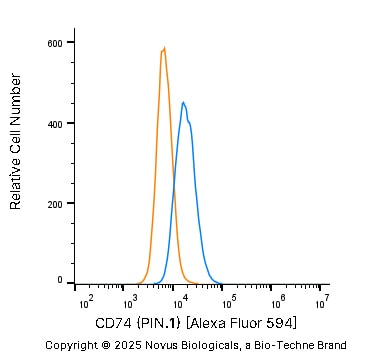

Detection of CD74 (PIN.1) in THP-1 Human Cell Line by Flow Cytometry.

An intracellular stain was performed on THP-1 human acute monocytic leukemia cell line with Mouse anti-CD74 (PIN.1) Protein-G purified Monoclonal Antibody conjugated to Alexa Fluor® 594 (Catalog # NB100-1985AF594, blue histogram) or matched control antibody (orange histogram) at 2.5 µg/mL for 30 minutes at RT.
CD74 Antibody (PIN.1) - BSA Free

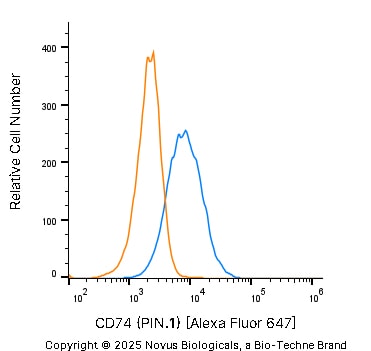

Detection of CD74 (PIN.1) in THP-1 Human Cell Line by Flow Cytometry.

An intracellular stain was performed on THP-1 human acute monocytic leukemia cell line with Mouse anti-CD74 (PIN.1) Protein-G purified Monoclonal Antibody conjugated to Alexa Fluor® 647 (Catalog # NB100-1985AF647, blue histogram) or matched control antibody (orange histogram) at 5 µg/mL for 30 minutes at RT.
CD74 Antibody (PIN.1) - BSA Free

CD74 (PIN.1) in U-2 OS Human Cell Line.

CD74 (PIN.1) was detected in immersion fixed U-2 OS human osteosarcoma cell line using Mouse anti-CD74 (PIN.1) Protein-G purified Monoclonal Antibody conjugated to FITC (Catalog # NB100-1985F) (green) at 2 µg/mL overnight at 4C. Cells were counterstained with DAPI (blue). Cells were imaged using a 100X objective and digitally deconvolved.

Applications for CD74 Antibody (PIN.1) - BSA Free

Application
Recommended Usage

Flow Cytometry

1 ug/million cells

Immunocytochemistry/ Immunofluorescence

1:10-1:2000

Immunohistochemistry

5 ug/ml

Immunohistochemistry-Paraffin

5 ug/ml

Immunoprecipitation

1:10-1:500

Western Blot

1 ug/ml
Application Notes

In Simple Western only 10-15 ul of the recommended dilution is used per data point. In WB this detects an ~33-35 kDa protein doublet, corresponding to the apparent molecular mass of the p33 and p35 forms of human CD74. This antibody is CyTOF ready. See Simple Western Antibody Database for Simple Western validation: tested in Jurkat lysate (0.2 mg/ml); antibody dilution of 1:400; separated by size; detects a band at 62 kDa

Flow Cytometry Panel Builder

Bio-Techne Knows Flow Cytometry

Save time and reduce costly mistakes by quickly finding compatible reagents using the Panel Builder Tool.

Advanced Features

  • Spectra Viewer - Custom analysis of spectra from multiple fluorochromes
  • Spillover Popups - Visualize the spectra of individual fluorochromes
  • Antigen Density Selector - Match fluorochrome brightness with antigen density
Build Your Panel Now

Formulation, Preparation, and Storage

Purification

Protein G purified

Formulation

PBS

Format

BSA Free

Preservative

0.02% Sodium Azide

Concentration

1.0 mg/ml

Shipping

The product is shipped with polar packs. Upon receipt, store it immediately at the temperature recommended below.

Stability & Storage

Store at 4C short term. Aliquot and store at -20C long term. Avoid freeze-thaw cycles.

Background: CD74

CD74, also known as the MHC class II associated invariant chain (Ii), is a type II transmembrane protein which binds to the peptide binding groove of newly synthesized MHC class II alpha/beta heterodimers and prevents their premature association with endogenous polypeptides. CD74 is produced in molar excess over MHC class II and some of this is expressed by an unknown pathway on the cell surface independent of or in association with MHC class II molecules. The half life of CD74 on the cell surface is only 3 to 4 min after which it is internalized. It has been proposed that cell surface CD74 binds MHC class II molecules which have lost their antigenic peptide leading to internalization and reloading with antigenic peptide. The transport route of class II alpha/beta/Ii complexes is regulated selectively by two forms of CD74 (p33 and p35) which are generated by the use of alternative translation initiation sites. CD74 is expressed primarily by antigen presenting cells such as B lymphocytes (from before the pre-B cell stage to before the plasma cell stage), macrophages and monocytes together, with many epithelial cells. CD74 may exist in different isoforms ranging in size from 33 to 41kDa, depending on genetic splicing.

Alternate Names

CD74, CLIP, DHLAG, HLADG, Ia-gamma, INVG34

Entrez Gene IDs

972 (Human)

Gene Symbol

CD74

UniProt

Additional CD74 Products

Product Documents for CD74 Antibody (PIN.1) - BSA Free

Certificate of Analysis

To download a Certificate of Analysis, please enter a lot or batch number in the search box below.

Product Specific Notices for CD74 Antibody (PIN.1) - BSA Free

This product is for research use only and is not approved for use in humans or in clinical diagnosis. Primary Antibodies are guaranteed for 1 year from date of receipt.

Citations for CD74 Antibody (PIN.1) - BSA Free

Customer Reviews for CD74 Antibody (PIN.1) - BSA Free

There are currently no reviews for this product. Be the first to review CD74 Antibody (PIN.1) - BSA Free and earn rewards!

Have you used CD74 Antibody (PIN.1) - BSA Free?

Submit a review and receive an Amazon gift card!

$25/€18/£15/$25CAN/¥2500 Yen for a review with an image

$10/€7/£6/$10CAN/¥1110 Yen for a review without an image

Submit a review
Amazon Gift Card

Protocols

View specific protocols for CD74 Antibody (PIN.1) - BSA Free (NB100-1985):

CD74 Antibody (PIN.1):
1. Deparaffinize the tissue sections by immersing the slides in Xylene with two changes for 10 min each. Sections should not get dried at any stage from this point.
2. Rehydrate the tissue sections by immersing the slides in decreasing grades of ethanol as follows:
a. Immerse in 100% ethanol with 2 changes for 5 minutes each
b. Immerse in 95% ethanol with 2 changes for 5 minutes each
c. Immerse in 90% ethanol for 5 minutes
d. Immerse in 70% ethanol for 5 minutes
e. Immerse in 50% ethanol for 5 minutes
f. Immerse in distilled water for 5 minutes
3. Antigen Retrieval (Microwave Method):
a. Immerse the slides in a microwave compatible tray containing 10 mM Sodium Citrate buffer (pH 6.0) with 0.05% Tween 20.
b. Boil the slides and maintain the sub-boiling temperature for 5 minutes in the microwave. Thereafter, take out the tray very carefully and cool it at room temperature (RT) for about 30 minutes.
c. Wash the slides 3 times, 3 minutes each by immersing them in TBST (Tris Buffered Saline having 0.05% Tween 20).
4. Quenching of Endogenous Peroxidase:
a. Incubate the slides in 3% hydrogen peroxide prepared in methanol for 15 minutes (at RT, in dark conditions).
b. Wash the slides in TBST 3 times, 3 minutes each.
5. Protein Blocking:
a. Incubate the sections with background sniper solution at RT for 15 minutes (Biocare Medicals, USA).
b. Wash the sections 3 times, 3 min each by immersing the slides in TBST.
6. Primary Antibody:
a. Dilute the primary antibody at 5ug/ml concentration using PBS as a diluent.
b. Incubate the sections with diluted primary antibody for 90 minutes at RT in a humidified chamber.
c. Thereafter, wash the slides 4 times, 5 minutes each with TBST.
7. Probe (Secondary Reagent):
a. Incubate with MACH 1 Mouse probe for 15 minutes at RT.
b. Incubate for 30 min at room temperature with HRP-Polymer (Biocare Medical, USA).
c. Wash the slides with TBST 4 times, 5 minutes each
8. Chromogen:
a. Mix 32ul of DAB Chromogen with 1 ml of DAB substrate buffer (Biocare Medical, USA).
a. Apply 200ul DAB mixture/section and incubate at RT in dark conditions (few seconds - 5 minutes).
b. As soon as an appropriate color develops, rinse the slides with deionized water (2-3 brief rinses).
9. Counter stain:
a. Counter stain with Hematoxylin for 30 seconds (Vector Labs, USA).
b. Wash in deionized water for 1-2 minutes to clear the extra stain.
c. Incubate the slides in bluing solution or Scott's water twice for 2 minutes each time.
10. Dehydrate the sections in increasing grades of alcohols:
a. 50% alcohol for 1 minute
b. 70% for 1 minute
c. 90% for 1 minute
d. 95% for 1 minute
e. 100% for 1 minute
f. Xylene with 2 changes for 2 minutes each
11. Mount with DPX mount and cover-slip glass (Fisher Scientific, USA), carefully not allowing any air bubbles to enter.

NOTE:- This protocol is provided as a reference tool only. Depending upon the type of tissues /tissue processing and reagents employed, the end user will need to optimize the final conditions for achieving an expected staining.
