Collagen XVII Antibody (SR46-05)

Immunocytochemistry/ Immunofluorescence: Collagen XVII Antibody (SR46-05) [NBP2-67316]

Immunocytochemistry/Immunofluorescence: Collagen XVII Antibody (SR46-05) [NBP2-67316] - Staining Collagen XVII in HUVEC cells (green). The nuclear counter stain is DAPI (blue). Cells were fixed in paraformaldehyde, permeabilised with 0.25% Triton X100/PBS.

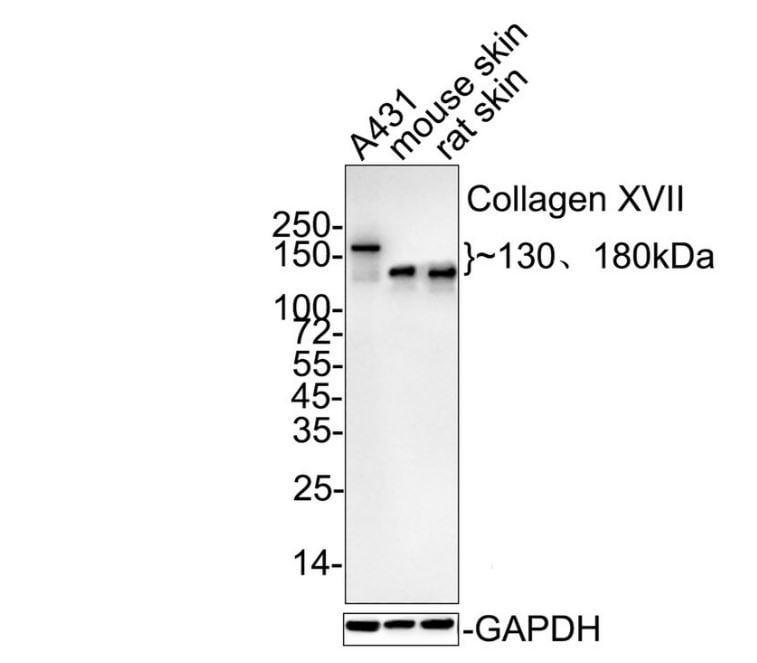

Western Blot: Collagen XVII Antibody (SR46-05) [NBP2-67316] -

Western Blot: Collagen XVII Antibody (SR46-05) [NBP2-67316] - Analysis of Collagen XVII on different lysates with Rabbit anti-Collagen XVII antibody at 1/5,000 dilution.Lane 1: A431 cell lysate (15 ug/Lane)Lane 2: Mouse skin tissue lysate (20 ug/Lane)Lane 3: Rat skin tissue lysate (20 ug/Lane)Predicted band size: 148 kDaObserved band size: 130、180 kDaExposure time: 40 seconds; ECL: K1802;4-20% SDS-PAGE gel.Proteins were transferred to a PVDF membrane and blocked with 5% NFDM/TBST for 1 hour at room temperature. The primary antibody at 1/5,000 dilution was used in 5% NFDM/TBST at room temperature for 2 hours. Goat Anti-Rabbit IgG - HRP Secondary Antibody at 1/50,000 dilution was used for 1 hour at room temperature.

Immunohistochemistry-Paraffin: Collagen XVII Antibody (SR46-05) [NBP2-67316] -

Immunohistochemistry-Paraffin: Collagen XVII Antibody (SR46-05) [NBP2-67316] -Human skin tissue with Rabbit anti-Collagen XVII antibody at 1/200 dilution.The section was pre-treated using heat mediated antigen retrieval with Tris-EDTA buffer (pH 9.0) for 20 minutes. The tissues were blocked in 1% BSA for 20 minutes at room temperature, washed with ddH2O and PBS, and then probed with the primary antibody at 1/200 dilution for 1 hour at room temperature. The detection was performed using an HRP conjugated compact polymer system. DAB was used as the chromogen. Tissues were counterstained with hematoxylin and mounted with DPX.
