Key Product Details

Species Reactivity

Human

Applications

Intracellular Staining by Flow Cytometry

Label

Alexa Fluor 488 (Excitation = 488 nm, Emission = 515-545 nm)

Antibody Source

Monoclonal Mouse IgG2B Clone # 841702
Loading...

Product Specifications

Immunogen

E. coli-derived recombinant human BATF3
Met1-Arg127
Accession # Q9NR55

Specificity

Detects human BATF3 in ELISAs.

Clonality

Monoclonal

Host

Mouse

Isotype

IgG2B

Scientific Data Images for Human BATF3 Alexa Fluor® 488‑conjugated Antibody

Detection of BATF3 in Human PBMC Monocytes by Flow Cytometry.

Human peripheral blood mononuclear cell (PBMC) monocytes were stained with Mouse Anti-Human CD11c APC-conjugated Monoclonal Antibody (FAB1777A) and either (A) Mouse Anti-Human BATF3 Alexa Fluor® 488-conjugated Antigen Affinity-purified Monoclonal Antibody (Catalog # IC7437G) or (B) Mouse IgG2BAlexa Fluor 488 Isotype Control (IC0041G). To facilitate intracellular staining, cells were fixed with Flow Cytometry Fixation Buffer (FC004) and permeabilized with Flow Cytometry Permeabilization/Wash Buffer I (FC005). View our protocol for Staining Intracellular Molecules.

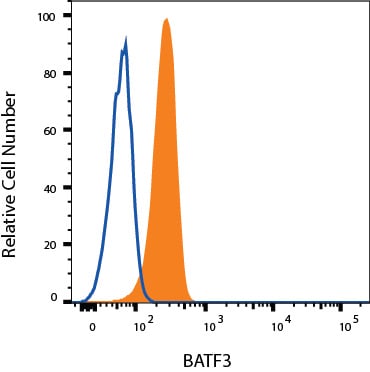

Detection of BATF3 in Jurkat cells by Flow Cytometry

Jurkat cells were stained with Mouse Anti-Human BATF3 Alexa Fluor® 488‑conjugated Monoclonal Antibody (Catalog # IC7437G, filled histogram) or isotype control antibody (Catalog # IC0041G, open histogram). To facilitate intracellular staining, cells were fixed and permeabilized with FlowX FoxP3 Fixation & Permeabilization Buffer Kit (Catalog # FC012). View our protocol for Staining Intracellular Molecules.

Applications for Human BATF3 Alexa Fluor® 488‑conjugated Antibody

Application
Recommended Usage

Intracellular Staining by Flow Cytometry

5 µL/106 cells
Sample: Human peripheral blood mononuclear cell (PBMC) monocytes fixed with Flow Cytometry Fixation Buffer (Catalog # FC004) and permeabilized with Flow Cytometry Permeabilization/Wash Buffer I (Catalog # FC005); Jurkat human T cell leukemia cell line fixed with FlowX FoxP3/Transcription Factor Fixation & Perm Buffer kit (FC012)

Spectra Viewer

Plan Your Experiments

Use our spectra viewer to interactively plan your experiments, assessing multiplexing options. View the excitation and emission spectra for our fluorescent dye range and other commonly used dyes.

Spectra Viewer

Flow Cytometry Panel Builder

Bio-Techne Knows Flow Cytometry

Save time and reduce costly mistakes by quickly finding compatible reagents using the Panel Builder Tool.

Advanced Features

  • Spectra Viewer - Custom analysis of spectra from multiple fluorochromes
  • Spillover Popups - Visualize the spectra of individual fluorochromes
  • Antigen Density Selector - Match fluorochrome brightness with antigen density
Build Your Panel Now

Formulation, Preparation, and Storage

Purification

Protein A or G purified from hybridoma culture supernatant

Formulation

Supplied in a saline solution containing BSA and Sodium Azide.

Shipping

The product is shipped with polar packs. Upon receipt, store it immediately at the temperature recommended below.

Stability & Storage

Protect from light. Do not freeze.
  • 12 months from date of receipt, 2 to 8 °C as supplied.

Background: BATF3

BATF3 (Basic leucine zipper transcriptional factor ATF-like 3; also p21SNFT) is a 20 kDa nuclear member of the bZIP family of proteins. It is expressed in Th1 cells and conventional dendritic cells (CD11c+), and serves to downregulate AP-1 mediated transcription. BATF3 accomplishes this by heterodimerizing with Jun and binding to AP-1 consensus binding sites, thus precluding a Jun/Fos interaction with gene activation. Human BAFT3 is 127 amino acids (aa) in length. It contains one DNA binding motif (aa 41-59) with an adjacent leucine-zipper (aa 63-84), but lacks a transactivation domain. Full-length human BATF3 (aa 1-127) shares 80% aa sequence identity with mouse BATF3.

Long Name

Basic Leucine Zipper Transcription Factor, ATF-like 3

Alternate Names

JDP1, JUNDM1, SNFT

Entrez Gene IDs

55509 (Human); 381319 (Mouse); 60462 (Rat)

Gene Symbol

BATF3

UniProt
