Human CCL20/MIP-3 alpha Quantikine ELISA Kit

(29 citations)
  • Assay Type
    Solid Phase Sandwich ELISA
  • Format
    96-well strip plate
  • Assay Length
    4.5 hours
  • Sample Type & Volume Required Per Well
    Cell Culture Supernates (100 uL), Serum (100 uL), EDTA Plasma (100 uL), Heparin Plasma (100 uL)
  • Sensitivity
    0.87 pg/mL
  • Assay Range
    7.8 - 500 pg/mL (Cell Culture Supernates, Serum, EDTA Plasma, Heparin Plasma)
  • Specificity
    Natural and recombinant human MIP-3 alpha
  • Cross-reactivity
    < 0.5% cross-reactivity observed with available related molecules.< 50% cross-species reactivity observed with species tested.
  • Interference
    No significant interference observed with available related molecules.
Control Available
Product Summary
The Quantikine Human MIP-3 alpha Immunoassay is a 4.5 hour solid phase ELISA designed to measure MIP-3 alpha levels in cell culture supernates, serum, and plasma. It contains E. coli-expressed recombinant human MIP-3 alpha and antibodies raised against the recombinant protein. Results obtained for naturally occurring human MIP-3 alpha showed linear curves that were parallel to the standard curves obtained using the kit standards. These results indicate that this kit can be used to determine relative mass values for natural human MIP-3 alpha.

Intra-Assay Precision (Precision within an assay) Three samples of known concentration were tested on one plate to assess intra-assay precision.
Inter-Assay Precision (Precision between assays) Three samples of known concentration were tested in separate assays to assess inter-assay precision.
Serum, EDTA Plasma, Heparin Plasma
Intra-Assay Precision Inter-Assay Precision
Standard Deviation1.624.289.16.0517.935.3

Cell Culture Supernates
Intra-Assay Precision Inter-Assay Precision
Standard Deviation1.843.8315.14.511328.8


The recovery of MIP-3 alpha spiked to three different levels in samples throughout the range of the assay in various matrices was evaluated.

Sample Type Average % Recovery Range %
Cell Culture Media (n=8) 101 88-115
EDTA Plasma (n=5) 104 97-115
Heparin Plasma (n=5) 104 98-112
Serum (n=5) 103 94-112

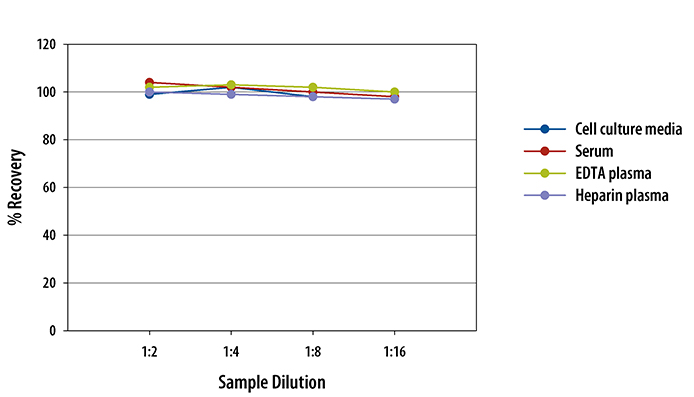

To assess the linearity of the assay, samples containing or spiked with high concentrations of MIP-3 alpha in various matrices were diluted with the appropriate Calibrator Diluent to produce samples with values within the dynamic range of the assay.
Human CCL20/MIP-3 alpha Quantikine ELISA Kit
Preparation and Storage
  • Storage
    Store the unopened product at 2 - 8 °C. Do not use past expiration date.
Background: CCL20/MIP-3 alpha
Macrophage inflammatory protein 3 alpha (MIP-3 alpha), also known as LARC (liver and activation-regulated chemokine) and as exodus-1, is one of many novel CC chemokines identified through bioinformatics. MIP-3 alpha is distantly related to other CC chemokines (20 - 28% amino acid sequence identity). Rat MIP-3 alpha shares approximately 70% and 61% amino acid sequence identity with mouse and human MIP-3 alpha, respectively.
    • Entrez Gene IDs
      6364 (Human); 20297 (Mouse); 29538 (Rat);
    • Alternate Names
      beta chemokine exodus-1; Beta-chemokine exodus-1; CC chemokine LARC; C-C motif chemokine 20; chemokine (C-C motif) ligand 20; CKb4; exodus-1; LARC; LARCLiver and activation-regulated chemokine; MIP3 alpha; MIP-3 alpha; MIP-3a; MIP-3-alpha; MIP3AMacrophage inflammatory protein 3 alpha; SCYA20Small-inducible cytokine A20; small inducible cytokine subfamily A (Cys-Cys), member 20; ST38;
    Related Research Areas
    Assay Procedure
    Refer to the product for complete assay procedure.

    Bring all reagents and samples to room temperature before use. It is recommended that all samples, standards, and controls be assayed in duplicate.
    1.   Prepare all reagents, standard dilutions, and samples as directed in the product insert.
    2.   Remove excess microplate strips from the plate frame, return them to the foil pouch containing the desiccant pack, and reseal.

    3. 100 µL Assay Diluent
    4.   Add 100 µL of Assay Diluent to each well.

    5. 100 µL Standard, Control, or Sample
    6.   Add 100 µL of Standard, control, or sample to each well. Cover with a plate sealer, and incubate at room temperature for 2 hours.
    7.   Aspirate each well and wash, repeating the process 3 times for a total of 4 washes.

    8. 200 µL Conjugate
    9.   Add 200 µL of Conjugate to each well. Cover with a new plate sealer, and incubate at room temperature for 2 hours.
    10.   Aspirate and wash 4 times.

    11. 200 µL Substrate Solution
    12.   Add 200 µL Substrate Solution to each well. Incubate at room temperature for 30 minutes. PROTECT FROM LIGHT.

    13. 50 µL Stop Solution
    14.   Add 50 µL of Stop Solution to each well. Read at 450 nm within 30 minutes. Set wavelength correction to 540 nm or 570 nm.
