Human CCL22/MDC Quantikine ELISA Kit

In alignment with Bio-Techne’s commitment to sustainability and Go Green initiatives, we will no longer pack paper kit booklets in the following immunoassay kits:

  • Quantikine® RUO ELISA Kits
  • Quantikine® HS ELISA Kits
  • QuantiGloELISA Kits
  • QuicKitELISA Kits
  • Fluorokine Kits
  • Parameter Assay Kits
  • ELISpot Kits
Catalog # Availability Size / Price Qty
Control Products Available

Save Up to 40% on RUO Reagents with BIOSPRING24 (See Details)

Best Seller
Human CCL22/MDC ELISA Standard Curve
2 Images
Product Details
Citations (31)
Supplemental Products
Reviews (1)

Human CCL22/MDC Quantikine ELISA Kit Summary

Assay Type
Solid Phase Sandwich ELISA
96-well strip plate
Assay Length
4.5 hours
Sample Type & Volume Required Per Well
Cell Culture Supernates (100 uL), Serum (100 uL), EDTA Plasma (100 uL), Heparin Plasma (100 uL)
62.5 pg/mL
Assay Range
125.0 - 4,000 pg/mL (Cell Culture Supernates, Serum, EDTA Plasma, Heparin Plasma)
Natural and recombinant human MDC
< 0.5% cross-reactivity observed with available related molecules.< 50% cross-species reactivity observed with species tested.
No significant interference observed with available related molecules.

Product Summary

The Quantikine Human MDC Immunoassay is a 4.5 hour solid-phase ELISA designed to measure human MDC in cell culture supernates, serum, or plasma. It contains E. coli-expressed recombinant human MDC and has been shown to accurately quantitate the recombinant factor. Results obtained using naturally expressed human MDC showed linear curves that were parallel to the standard curves obtained using the Quantikine kit standards. These results indicate that this kit can be used to determine relative mass values for naturally expressed human MDC.


Intra-Assay Precision (Precision within an assay) Three samples of known concentration were tested on one plate to assess intra-assay precision
Inter-Assay Precision (Precision between assays) Three samples of known concentration were tested in separate assays to assess inter-assay precision

Cell Culture Supernates, Serum, EDTA Plasma, Heparin Plasma

Intra-Assay Precision Inter-Assay Precision
Sample 1 2 3 1 2 3
n 20 20 20 40 40 40
Mean (pg/mL) 284 452 821 276 440 810
Standard Deviation 12 9.7 24 22.2 27.8 42.8
CV% 4.2 2.1 2.9 8 6.3 5.3


The recovery of MDC spiked to three different levels throughout the range of the assay was evaluated.

Sample Type Average % Recovery Range %
Cell Culture Media (n=4) 98 90-110

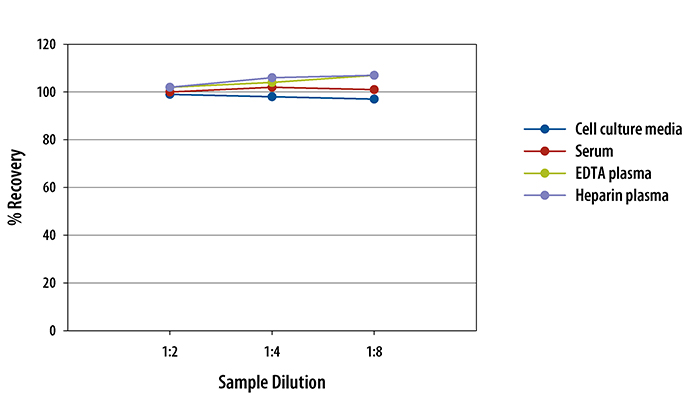

To assess the linearity of the assay, samples containing or spiked with high concentrations of MDC were diluted with Calibrator Diluent to produce samples with values within the dynamic range of the assay.\line
Human CCL22/MDC ELISA Linearity

Scientific Data

Human CCL22/MDC ELISA Standard Curve

Product Datasheets

You must select a language.


Preparation and Storage

The product is shipped at ambient temperature. Upon receipt, store it immediately at the temperature recommended below.
Store the unopened product at 2 - 8 °C. Do not use past expiration date.

Background: CCL22/MDC

Macrophage-derived chemokine (MDC), also named stimulated T cell chemotactic protein (STCP-1) and ABCD-1, and now designated as CCL22, is a CC chemokine initially isolated from clones of monocyte-derived macrophages. At the amino acid sequence level, MDC shows less than 35% identity to other CC chemokine family members. Human MDC is expressed in dendritic cells, macrophages and activated monocytes. In addition, MDC expression is detected in thymus, lymph node and appendix tissues. At the amino acid sequence level, mouse and human MDC share 64% identity and 83% similarity.

Entrez Gene IDs:
6367 (Human); 20299 (Mouse)
Alternate Names:
A-152E5.1; ABCD-1; CC chemokine STCP-1; C-C motif chemokine 22; CCL22; chemokine (C-C motif) ligand 22; DC/B-CK; Macrophage-derived chemokine; MDC; MDCStimulated T-cell chemotactic protein 1; MGC34554; SCYA22MDC(1-69); small inducible cytokine A22; small inducible cytokine subfamily A (Cys-Cys), member 22; Small-inducible cytokine A22; STCP-1; stimulated T cell chemotactic protein 1
&#9888; WARNING: This product can expose you to chemicals including N,N-Dimethylforamide, which is known to the State of California to cause cancer. For more information, go to

Assay Procedure

Refer to the product for complete assay procedure.

It is recommended that all samples and standards be assayed in duplicate.
  1.   Prepare all reagents, standard dilutions, and samples as directed in the product insert.
  2.   Remove excess microplate strips from the plate frame, return them to the foil pouch containing the desiccant pack, and reseal.

  3. 100 µL Assay Diluent
  4.   Add 100 µL of Assay Diluent to each well.

  5. 100 µL Standard, Control, or Sample
  6.   Add 100 µL of Standard, control, or sample to each well. Cover with a plate sealer, and incubate at 2-8 °C for 2 hours.
  7.   Aspirate each well and wash, repeating the process 3 times for a total of 4 washes.

  8. 200 µL cold Conjugate
  9.   Add 200 µL of Conjugate to each well. Cover with a new plate sealer, and incubate at 2-8 °C for 2 hours.
  10.   Aspirate and wash 4 times.

  11. 200 µL Substrate Solution
  12.   Add 200 µL Substrate Solution to each well. Incubate at room temperature for 30 minutes. PROTECT FROM LIGHT.

  13. 50 µL Stop Solution
  14.   Add 50 µL of Stop Solution to each well. Read at 450 nm within 30 minutes. Set wavelength correction to 540 nm or 570 nm.
